brass/aluminum 30mW-200mW output 532nm 5w laser module with TEC cooler
- 100 Piece / Pieces per Month
- XI AN
- Credit Card
- Mini Laser Module with APC 4x8mm
- Laser Module, 15x60mm Size 405nm-850nm 8um-110um Microbeam Laser Diode Module for Laser Positioning & Pointing
- Mini laser module for laser alignment tools
- 1-5mw 520nm Low Consumption Mini Laser Diode Module 4x8mm
- 1-5mw Mini Infrared Laser Module for Measure Tools and Medical Treatment Instrument
- Mini laser module for bar code scan instrument
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | ELITE | Model Number: | EL |
Product Description
brass/aluminum 30mW-200mW output 532nm 5w laser module with TEC cooler
Product descriptions of 532nm 5w laser module :
Elite optoelectronics Co,.LTD,established in 2003,is a professional company specialized in developing and manufacturing mini green laser diode module and optoelectronic products. Our major products cover mini green laser diode module , laser module and laser instruments which have been successfully applied in a wide range of diversified applications such as military sight collimating, material processing, scientific and laboratory medical usage, etc.
Quick Details
- Place of Origin: Shaanxi, China (Mainland)
- Brand Name: ELITE
- Model Number: EL
- Type: green industrial laser module
- Package Type: Through Hole
- Max. Forward Voltage: 6VDC
- Max. Reverse Voltage: 0
- Max. Forward Current: 200mA
- Max. Reverse Current: 0
- Wavelength: 532nm
- Lifetime: >8000Hrs
- Certificated: FDA IEC SGS ISO9001-2008
- Material: brass or aluminum
- output power: 30mW ~ 200mW
- laser pattern: dot,line and cross
- Operating Temp.: -10°C ~ 50°C
- laser type: green laser
- Temp. Stability: > 95% (@-10°C ~ 50°C)
- Voltage Stability: > 98% (@2.7 ~ 5.5VDC)
Packaging & Delivery
Packaging Details: | 1 PE Bag Packing 2 Blister Packing 3 Iron box Packing 4 Fabric bag Packing |
Delivery Detail: | As Customer Request |
Specifications
-Compact size |
-FDA ISO2000:2008 IEC |
-SGS TUV assessed supplier |
-Wide work temperature |
-11 years` experience |
-Wide temperature range -10C ~ 50C |
-Green laser |
Elite have many types of dot laser diode module for different application. The light spot can e ellipse and round shaped with varied beam size, aperture and divergence. The difference depends on the glass lens or plastic lens. Customers can chose different types according to their specific applications
Key Features
1)Wide Temp. Operating
2)High brightness
3)High Reliability
4)Long Lifetime
5)Feasible Solutions
Opctical and Electrical Characteristics
Parameter | Spec. | Test Conditions |
Wavelength 532 nm | Tc = 25°C | |
Output Power | > 200mw | Tc = 25°C |
Laser Modes | CW | |
Transverse mode | TEM00 | |
Output Aperture | < 4 mm | Factory fixed |
Beam Size | < 20 mm | Factory fixed @ 20m |
Divergence | < 1 mrad | Tc = 25 ±3°C |
Operating Current | < 5A | Tc = 25±3°C |
Operating Voltage | 90-250VAC / (50-60Hz) | |
Operating Temp. | 0°C ~ 45°C | |
Storage Temp. | -20°C ~ 70°C | |
CDRH Class | Class IIIb | |
MTTF | 5000 Hrs. | Tc = 25±3°C |

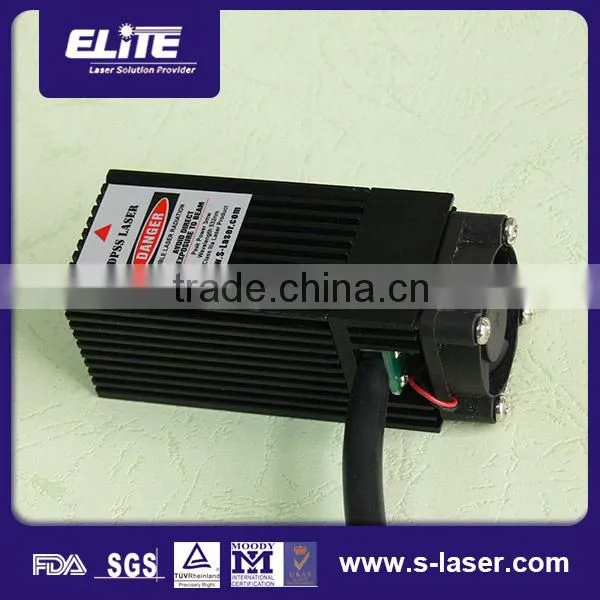

Product pictures of 532nm 5w laser module :
