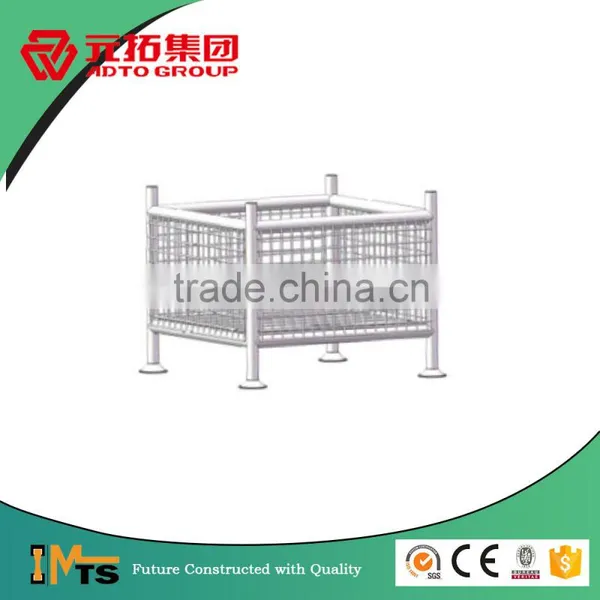

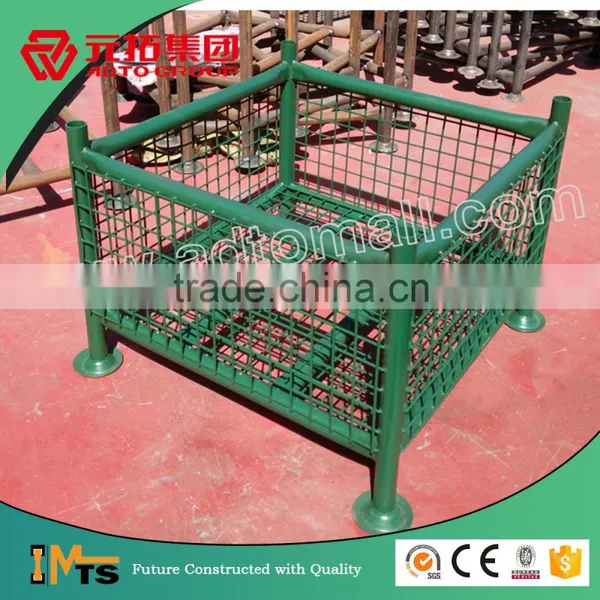

Easy Erection Steel Kwikstage Scaffolding Mesh Storage Cage
The kwikstage scaffolding steel stillage is used for holding materials and safely picked up by forklift and stacks on top of each other. Pallets achieved a maximum load of 9000kgs. Client advised that these pallets are stacked 6 pallets high. Using a safety factor of 2, these pallets are rated to a Working Load Limit of 750kgs when stacked 6 units high.
ADVANTAGES:
a) Durability: mesh steel pallet is made of tough material and provides long-term benefits.
b) Easy operation: picked up by forkliftand saving labour costs
KWIKSTAGE STANDARD
ITEM NO. |
MATERIAL |
LENGTH |
FINISH |
STANDARD |
ADKS3000 |
Q235, 48.3x4mm |
3.0m |
Galvanized |
AS/NZS 1576 |
ADKS2500 |
Q235, 48.3x4mm |
2.5m |
Galvanized |
AS/NZS 1576 |
ADKS2000 |
Q235, 48.3x4mm |
2.0m |
Galvanized |
AS/NZS 1576 |
ADKS1500 |
Q235, 48.3x4mm |
1.5m |
Galvanized |
AS/NZS 1576 |
ADKS1000 |
Q235, 48.3x4mm |
1.0m |
Galvanized |
AS/NZS 1576 |
ADKS0500 |
Q235, 48.3x4mm |
0.5m |
Galvanized |
AS/NZS 1576 |
KWIKSTAGE LEDGER
ITEM NO. |
MATERIAL |
LENGTH |
FINISH |
STANDARD |
ADKL24 |
Q235, 48.3x3.2mm |
2.4m |
Galvanized |
AS/NZS 1576 |
ADKL18 |
Q235, 48.3x3.2mm |
1.8m |
Galvanized |
AS/NZS 1576 |
ADKL12 |
Q235, 48.3x3.2mm |
1.2m |
Galvanized |
AS/NZS 1576 |
ADKL08 |
Q235, 48.3x3.2mm |
0.8m |
Galvanized |
AS/NZS 1576 |
ADKL07 |
Q235, 48.3x3.2mm |
0.7m |
Galvanized |
AS/NZS 1576 |
ADKL05 |
Q235, 48.3x3.2mm |
0.5m |
Galvanized |
AS/NZS 1576 |
KWIKSTAGE TRANSOM
ITEM NO. |
MATERIAL |
LENGTH |
FINISH |
STANDARD |
ADKT24 |
Q235, 50x50x5mm |
2.4M |
Galvanized |
AS/NZS 1576 |
ADKT18 |
Q235, 50x50x5mm |
1.8M |
Galvanized |
AS/NZS 1576 |
ADKT12 |
Q235, 50x50x5mm |
1.2M |
Galvanized |
AS/NZS 1576 |
ADKT10 |
Q235, 50x50x5mm |
1.0M |
Galvanized |
AS/NZS 1576 |
ADKT08 |
Q235, 50x50x5mm |
0.8M |
Galvanized |
AS/NZS 1576 |
ADKT07 |
Q235, 50x50x5mm |
0.7M |
Galvanized |
AS/NZS 1576 |
ADKT05 |
Q235, 50x50x5mm |
0.5M |
Galvanized |
AS/NZS 1576 |
KWIKSTAGE SCAFFOLDING ACCESSORIES:

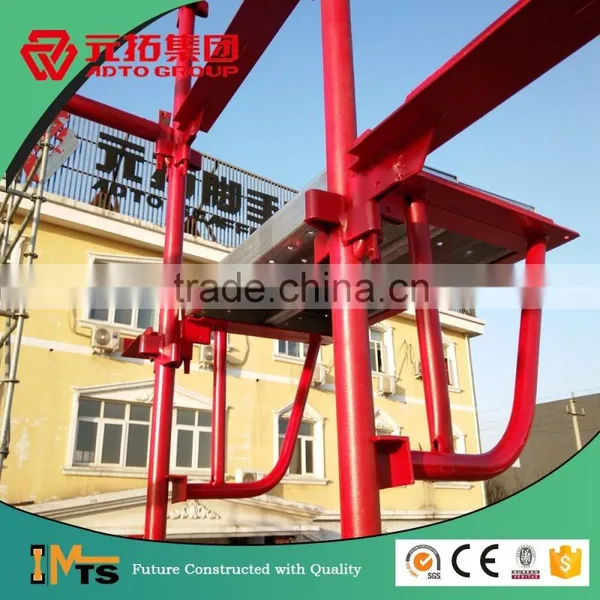

Hop up Bracket(One Board)
Hop up Bracket(Two Board)
Hop up Bracket(Three Board)
Kwikstage Base Screw Jack
Wall Tie
Mesh Pallet
Stair Case
Mesh Rack
Gal Stillage
Toe Board Bracket
Ladder Access Transom
End Toe Board Bracket
Base Plate
