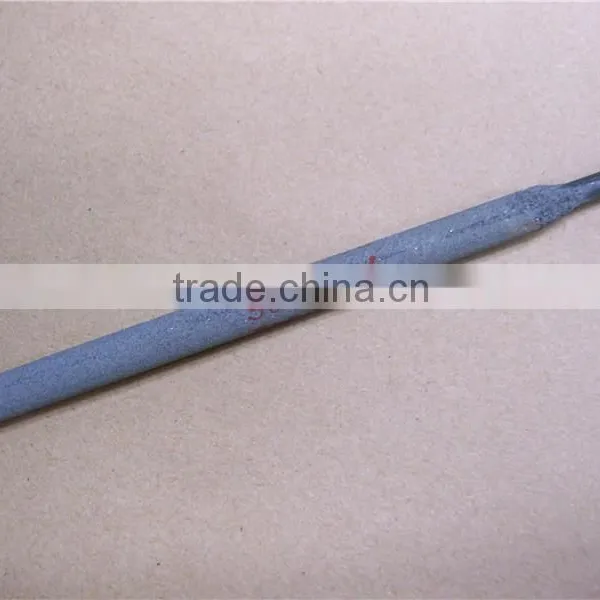

AWS E6013/E7018 2mm 2.5mm Low and high Carbon Steel Structure welding rods Introduction
1. Model No.: Welding Rod AWS E6013(J421, J38.12)
2. Available size: 2.5x300mm, 2.5x350mm, 3.2x350mm, 4.0x400mm, 5.0x400mm
3. Packing: 5kgs/box, 20kgs/carton, 1000kgs/pallet, we could do according to the customers ‘request.
4. Delivery time: Within 20 days after confirmation
5. Application: The E6013 welding rods are widely used on both AC and DC in all position and suitable for welding sheet metal structure made of low-carbon steel, such as ships, vehicles, building, and general machinery.
Detaild Specification for Carbon Steel Welding Rod E6013 e7018(J421, J38.12)
Chemical Compossition of Deposited Metal (%)
|
C |
Mn |
Si |
S |
P |
Guaranteed value |
≤0.12 |
0.3~0.6 |
≤0.35 |
≤0.035 |
≤0.040 |
Typical value |
0.07 |
0.4 |
0.25 |
0.019 |
0.025 |
Sizes, Length & Recommended Current (AC/DC)
Diameter (mm) |
φ2.0 |
φ2.5 |
φ3.2 |
φ4.0 |
φ5.0 |
Length (mm) |
300 |
300 |
350 |
400 |
400 |
Current (A) |
40~70 |
50~90 |
90~130 |
130~210 |
170~230 |
Mechanical Properties of Deposited Metal
|
Rm (Mpa) |
ReL(Mpa) |
A(%) |
KV2(J) |
KV2(J) |
Guaranteed value |
σb≥420 |
σs ≥ 330 |
δ5 ≥ 17 |
(normal temperature) |
-(0°C) |
Typical value |
460~540 |
≥ 340 |
18~26 |
50-80 |
≥ 47 |
