Hot Dipping cuplock scaffolding system standard ledger intermediate Q235 galvanized cuplock transom

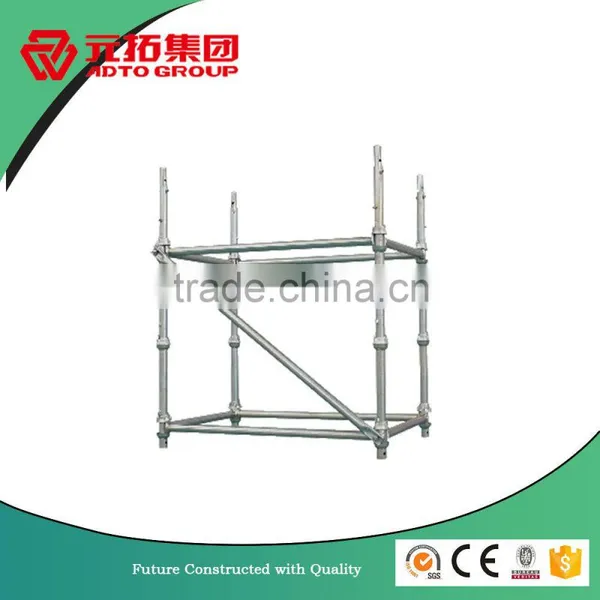

Cup-Lock scaffolding system is a multi-purpose system scaffold, suitable for access and formwork support in all types of construction of building & civil engineering projects. This complete galvanized system is probably the fastest and most-widely preferred scaffold system. The main feature of Cup-Lock is the unique node locking method which allows up to four horizontal members to be fastened to a vertical member in one action by a single hammer blow - without the use of nuts and bolts or wedges.
The locking node is formed by two cups, a fixed lower cup which is welded to the vertical member at every 500mm intervals and a sliding upper cup. First the forged blade ends of the horizontal member are connected loosely but safely to the lower cup.
The key strength of Cup-Lock scaffolding system is being extremely versatile. It is ideal for many applications as formwork support, or general access scaffold, staircase tower, mobile tower and table form. It has flexible erection as straight, curved or circular configuration for both access and support purposes.
Components:

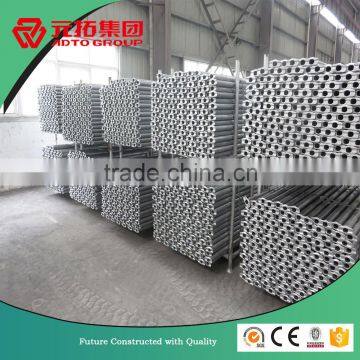

*Cup-Lock Standard With Spigots
*Cup-Lock Ledger
*Cup-Lock Diagonal Brace
*Intermediate transom
*base jack
*metal plank or catwalk
Product Feature:
-Simple. Components allow the easy creation of cantilevers, inside platforms and stair cases.
-Lighter. 20% lighter than Coupler & Pin Scaffolding System
-Safe to erect and use
SIZE Standard
| length(M) | weight(KG) | ||
| self finish | painted | hot galv. | |
| L=0.50 | 2.42 | 2.5 | 2.57 |
| L=1.00 | 4.84 | 4.98 | 5.13 |
| L=1.30 | 6.54 | 6.74 | 6.93 |
| L=1.50 | 7.25 | 7.47 | 7.69 |
| L=1.80 | 8.96 | 9.22 | 9.49 |
| L=2.00 | 9.67 | 9.96 | 10.25 |
| L=2.30 | 11.37 | 11.71 | 12.05 |
| L=2.50 | 12.08 | 12.44 | 12.81 |
| L=3.00 | 14.5 | 14.93 | 15.37 |
ledger
| length(M) | weight(KG) | ||
| self finish | painted | hot galv. | |
| L=0.60 | 2.38 | 2.45 | 2.52 |
| L=0.90 | 3.44 | 3.55 | 3.65 |
| L=1.00 | 3.8 | 3.91 | 4.03 |
| L=1.20 | 4.51 | 4.65 | 4.78 |
| L=1.30 | 4.87 | 5.01 | 5.16 |
| L=1.50 | 5.58 | 5.75 | 5.91 |
| L=1.80 | 6.65 | 6.85 | 7.05 |
| L=2.00 | 7.36 | 7.58 | 7.8 |
| L=2.50 | 9.14 | 9.41 | 9.69 |
intermediate transom
| length(M) | weight(KG) | ||
| self finish | painted | hot galv. | |
| L=0.60 | 3.59 | 3.7 | 3.8 |
| L=0.90 | 4.66 | 4.8 | 4.93 |
| L=1.00 | 5.01 | 5.16 | 5.31 |
| L=1.20 | 5.72 | 5.9 | 6.07 |
| L=1.30 | 6.08 | 6.26 | 6.44 |
| L=1.80 | 7.86 | 8.09 | 8.33 |
| L=2.00 | 8.57 | 8.83 | 9.08 |
| L=2.50 | 10.5 | 10.66 | 10.97 |
| L=3.00 | 12.13 | 12.46 | 12.86 |
| Name | Length | Weight (Kg) | ||
| Self Finish | Painted | Hot Dip Galv. | ||
| Diagonal Brace | L=0.60Mt | 3.59 | 3.7 | 3.8 |
| Diagonal Brace | L= 1.3Mt | 5.22 | 5.37 | 5.53 |
| Diagonal Brace | L= 1.8Mt | 7.48 | 7.71 | 7.93 |
| Name | Length | Weight (Kg) | ||
| Self Finish | Painted | Hot Dip Galv. | ||
| Spigot Connctor | L=0.25Mt | 0.69 | 0.71 |
0.73 |
