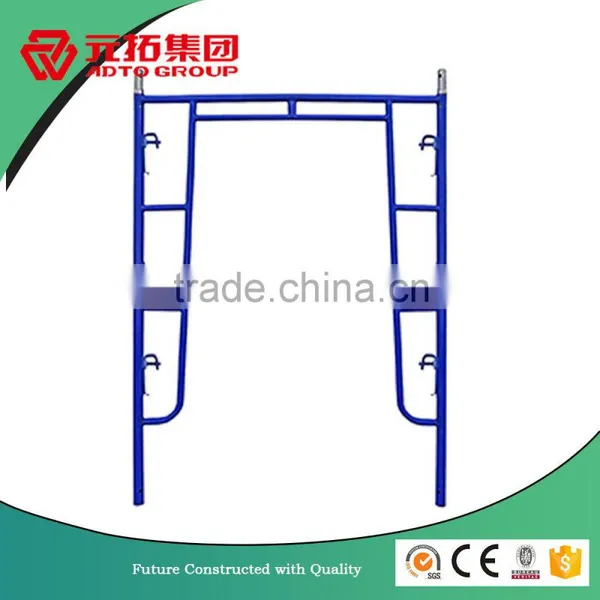

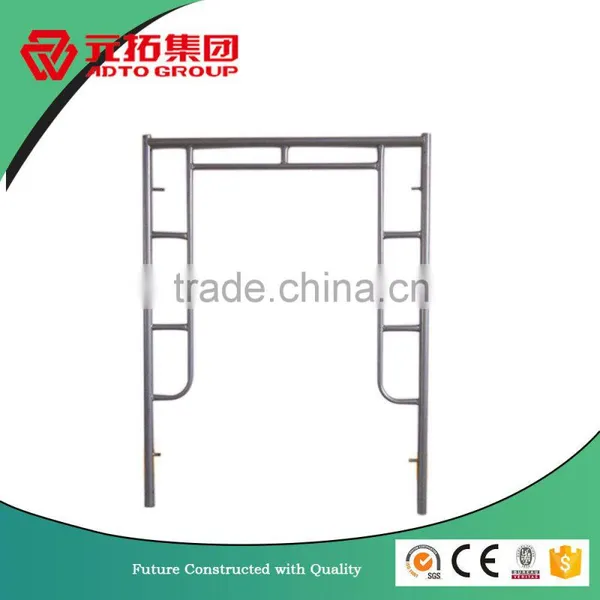

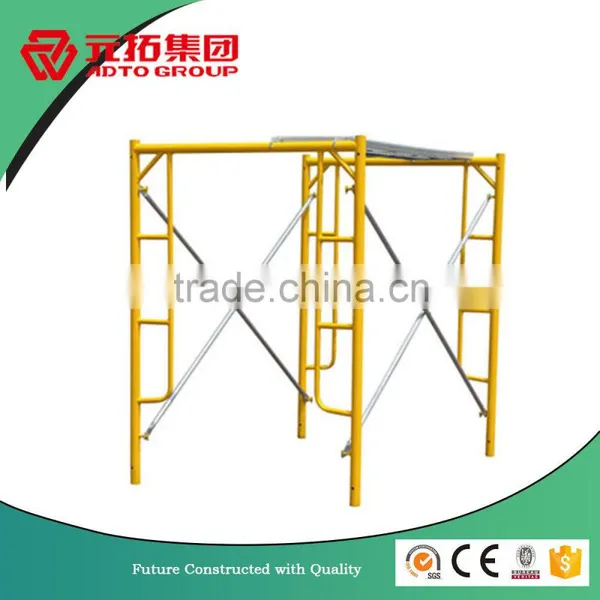

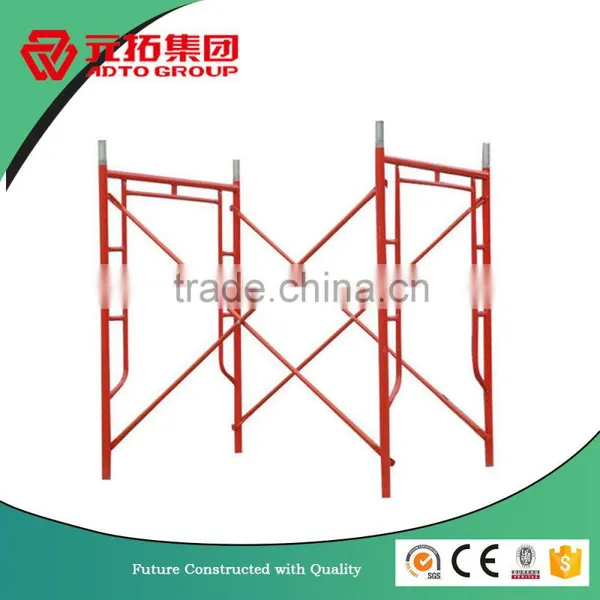

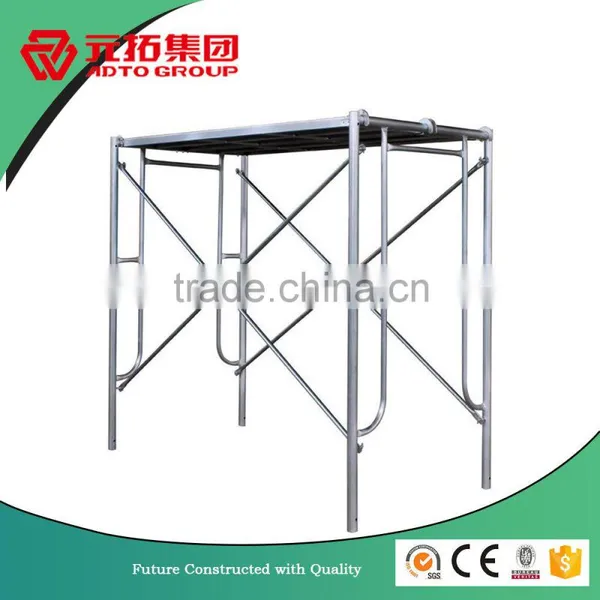

American style V-lock 5ft x 5ft Walk Thru Frame Scaffolding with SGS Inspection and Testing Report
Descriptions:
1.Material:Q235 Q345 steel
2.Model type: 5'x6'4'', 3'x6'4'', 42''x5', 5'x5', 5'x6'
3.Type: walk through frames
4.Thickness of the tube: 2.4mm, 2.2mm,2.0mm or customize
5.Surface treatment:HDG/ powder coated
6.Color: silver, red, blue, yellow, green or customize
7.Certificate:ISO9001:2000 ISO9001:2008
8.Standard:EN74 BS1139 AS1576
9.Advantage:easy erection, strong loading capacity, safety and stability
10.Usage: Our products are used widely in bridge, tunnel, petrifaction, shipbuilding, railway, airport, dock industry and civil building etc
11.Components: walk thru frame, cross brace, coupling pin, screw jack base, aluminum planks, stairs, side brackets, guardrail post, etc.
Specifications Details:
| Walk Thru Frame | ||||
| Commodities and Description | OD | Weight (lbs) | Lock Type | Finish |
| 5'X6'7" Heavy Duty Walk Thru Frame | 1.69" | 57.86 | Speed Lock | Powder coated |
| 5'X6'7" Ladder Walk Thru Frame | 1.69" | 55 | Speed Lock | Powder coated |
| 5'X6'7" Walk Thru Frame | 1.69" | 47.56 | Speed Lock | Powder coated |
| 3'X4' Walk Thru Frame | 1.69" | 24.15 | Snap-on | Powder coated |
| 3'X5' Walk Thru Frame | 1.69" | 30.3 | Snap-on | Powder coated |
| 3'X6'8" Walk Thru Frame | 1.69" | 35.85 | Snap-on | Powder coated |
| 5'X6'8" Walk Thru Frame | 1.69" | 42.87 | Snap-on | Powder coated |
| 5'X6'4" Walk Thru Frame | 1.69" | 49 | V Lock | Powder coated |
| 3'X6'4" Walk Thru Frame | 1.69" | 42.46 | V Lock | Powder coated |
| 42"X6'4" Walk Thru Frame | 1.69" | 39.5 | V Lock | Powder coated |
| Box Frame( Mason Frame) | ||||
| Commodities and Description | OD | Weight (lbs) | Lock Type | Finish |
| 5'x2' SINGLE Box Frame | 1.69" | 23.54 | V-STYLE | Powder coated |
| 5'x3' SINGLE Box Frame | 1.69" | 25.74 | V-STYLE | Powder coated |
| 5'x4' SINGLE Box Frame | 1.69" | 31.02 | V-STYLE | Powder coated |
| 5'x5' SINGLE Box Frame | 1.69" | 35.47 | V-STYLE | Powder coated |
| 5’ x 6’ 4” DOUBLE Box Frame | 1.69" | 38.94 | V-STYLE | Powder coated |
| 5'x5' SINGLE Box Frame | 1.69" | 40.84 | Snap-on | Powder coated |
| 5'x6'8" SINGLE Box Frame | 1.69" | 49.46 | Snap-on | Powder coated |
| Shoring Frame (Heavy-duty) | ||||
| Commodities and Description | OD | Weight (lbs) | Lock Type | Finish |
| 4'x4' Shoring Frame | 1.69" | 46.39 | Drop Lock | Powder coated |
| 4'x5' Shoring Frame | 1.69" | 53.28 | Drop Lock | Powder coated |
| 4'x6' Shoring Frame | 1.69" | 66.73 | Drop Lock | Powder coated |
| 2'x6'8" Shoring Frame | 1.69" | 34.8 | Snap-on | Powder coated |
| 2'x3' Shoring Frame | 1.69" | 31.28 | Speed Lock | Powder coated |
| 2'x4' Shoring Frame | 1.69" | 38.94 | Speed Lock | Powder coated |
| 2'x5' Shoring Frame | 1.69" | 46.33 | Speed Lock | Powder coated |
| 2'x6' Shoring Frame | 1.69" | 56.72 | Speed Lock | Powder coated |
| 4'x3' Shoring Frame | 1.69" | 35.28 | Speed Lock | Powder coated |
Why US:
Tianjing Heshunchang Scaffolding Co. Ltd is a leading manufacturer of American-type frame scaffolding,
system scaffoldings and accessories,galvanized steel pipe,Frames,steel props, metal planks, Aluminum planks,
and other related products.
• 7 years experience, sales volume reaches 1.5 billion US dollars.
• Good quality control in production process, ISO9001:2008,SGS,BV approved.
• Excellent quality and Competitive price, OEM is available.
• Available in an extensive range of stock or custom size.
• The whole process from material to finished products can be traced.
• Our factory is close to the port-Xingang,Tianjin.
