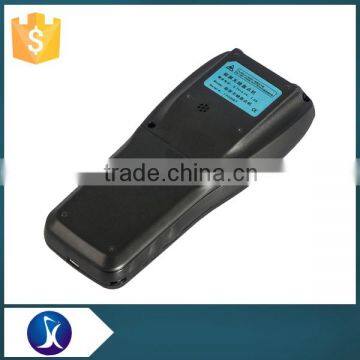

Saints-767 Wireless Laser Handheld Pda Data Collection Device,usb Wireless Barcode Scanner
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Operating System:
Other, OBM
Processor Type:
Other, STM32
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Saints-m3 Mini Portable Wireless Barcode Scanner With MemoryNegotiableMOQ: 10 Pieces -
Saints-757 Usb Wireless Speedata Pda Gps Barcode Reader,pdt Barcode Scanner Portable PdaNegotiableMOQ: 10 Pieces
-
Bottom Price! 4" Gprs Wifi Fingerprint Rugged Supermarkt Pda With Barcode ScannerNegotiableMOQ: 10 Pieces
-
LCD Barcode Scanner Data Collector Barcode Scanner LCD Display NT-9800NegotiableMOQ: 10 Pieces
-
Simply IP67 10inch BT4.0 15000mah 32GB 13.56MHZ NFC Handheld Bluetooth Barcode ScannerNegotiableMOQ: 10 Pieces
Products Status
Stock
Operating System
Other, OBM
Processor Type
Other, STM32
Style
Other, Data Collector
Memory Capacity
Other, 16MB
Screen Size
2.8"
Weight
216g(with battery)
Brand Name
Saints
Model Number
Saints-767
Place of Origin
Guangdong, China
FEATURES:
1. MULTI-FUNCTIONAL
Covers the full circulation of commodity: receiving, shipping, cycle count, replenishment and defect report
2. RECONIZABLE
Supports download of item file: barcode scanned matches to the item automatically and displays on screen right away
3. SIMPLE

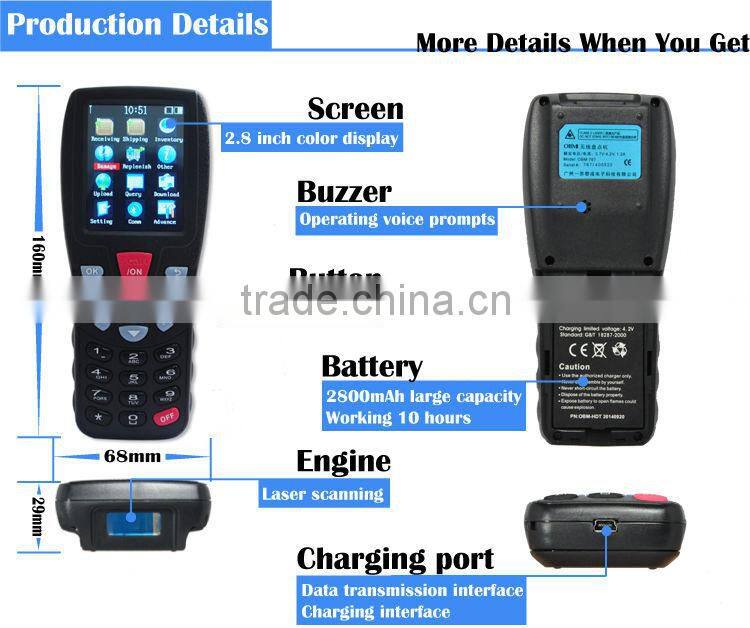

2.8” color display and graphical menu makes it easy to understand
4. EFFICIENT
Report is automatically generated right after inventory count, 90% savings on time, manpower and administrative overhead
5. SAFE
Supports real-time, storage and batch transmission
6. WIRELESS
Adopts mainstream wireless and storage technology, free from cables
7. ENDURING
2800mA POLYMER-Lithium-ion battery ensures long working hours
TECHNICAL PARAMETERS
Radio Specifications:
433MHz |
|
Frequency |
ISM band,433MHz |
modulation |
GFSK |
Rate of Transmission |
50Kbps |
Output Power |
20dBm (max) |
Transmission Coverage |
300M visibility range(Max.) |
Antenna |
2.5DB |
Performance Characteristics:
Light Source |
650nm Laser Diode |
Scan Pattern |
Single line |
Scan Rate |
120 /sec |
Scan Precision |
4mil |
Scan Width |
20mm@window,100mm@100mm |
Depth of Field |
0~250mm(0.33mm,PCS 90%) |
Roll(Till) |
30° |
Pitch |
65° |
Skew(Yaw) |
55° |
Resolution |
30% minimum reflectance |
Operating Mode |
Continuous / itemized scanning |
Error Rate |
1 million-to-one |
Indicator |
beeper,LCD |
Decode Capability |
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber,Industoal 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI… |
Interfaces supported |
Mini USB receiver,optional RS232 or PS2 |
Electrical Parameters:
Receiver Voltage |
DC5V |
Receiver Current |
50mA |
Battery |
Rechargeable lithium ion battery (3.7V ,1900mAh) |
Charging Indicator |
LCDdisplay |
Operating current |
190mA |
Standby Current |
40mA |
Laser Safety |
national class2 regulatory |
EMC |
CE & FCC DOC compliance |
Physical Characteristics:
Memory |
16M |
keypad |
23 |
Dimensions |
160mm×68mm×29mm |
Material |
ABS + silicon |
User Environment:
Operating Temperature |
0°C~45°C |
Storage Temperature |
-20°C~60°C |
Humidity |
5%~95% (non-condensing) |
Ambient Light Immunity |
Max.5,000 Lux(fluorescent) |
Saints is a technology-driven company specialized in the Auto-Identifica-tion (Barcode & RFID) industry. Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode Data Terminal, Stock Counter, wireless Handheld Data Collector, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID Reader.
