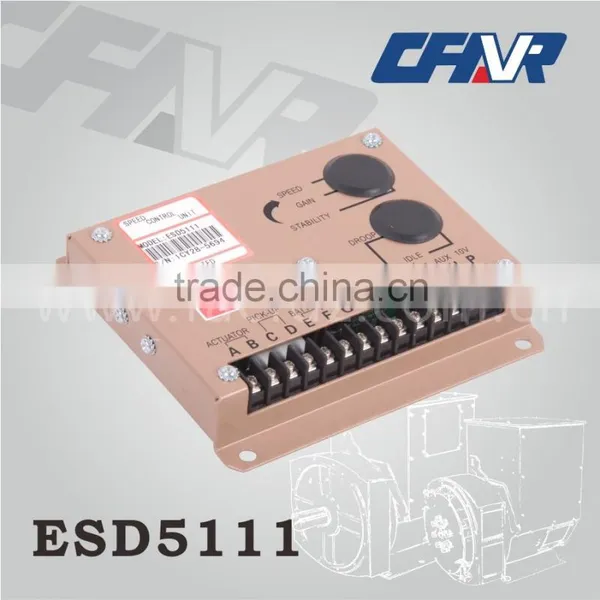

Automatic speed governor ESD5111 for diesel generator
- 3000 Piece / Pieces per Month
- Fuzhou / Xiamen
- T/T Credit Card
Product Details
Place of Origin: | Fujian, China | Brand Name: | Chengfeng | Model Number: | ESD5111 |
Usage: | SVC | Phase: | Three Phase | Current Type: | AC |
Product Description
Automatic speed governor ESD5111 for diesel generatorr:
The ESD5111 series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.
Isochronous Operation/Steady Stability: +/-0.25% or better
Supply: 12 or 24 VDC Battery Systems(transient&reverse voltage protected)
Power Consumption: 50 ma continuous plus acutator current
Maximum Actuator Current at 25celsius(77celsius F): 10 Amps continuous
PERFORMANCE | |
Isochronous Operation/Steady State Stability | ± 0.25% or better |
Speed Range/Governor | 1K-7.5K Hz continuous |
Speed Drift with Temperature | ± 1% Maximun |
Idle Adjust CW | Min. 1200Hz. below set speed |
Idle Adjust CCW | Min. 4100Hz. below set speed |
Droop Range | 1-5% regulation |
Droop Adj. Max. (K-L Jumpered) | 875Hz., ± 75Hz. per 1.0 A change |
Droop Adj. Min. (K-L Jumpered) | 15Hz., ± 6Hz. per 1.0 A change |
Speed Trim Range | ± 200Hz. |
Remote Variable Speed Range | 500 -7.5Hz. or any part thereof |
Terminal Sensitivity | J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance |
L: 735Hz., ± 60Hz/Volt @ 65 K Impedance | |
N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance | |
P: 10V DC Supply @ 20ma Max. | |
Speed Switch Adjustment Range | 1000-10000Hz. |
ENVIRONMENTAL | |
Ambient Operating Temperature Range | -40°c to +85°c |
Relative Humidity | up to 95% |
Storage Temperature | -55°c ~ 90°c |
Shock | 20-100HZ 500mm/Sec. |
INPUT POWER | |
Supply | 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) |
Polarity | Negative Ground(Case Isolated) |
Power Consumption | 50mA continuous plus actuator current |
Maximum Actuator Current at 25 | 10Amps continuous |
Speed Sensor Signal | 0.5-120 Volts RMS |
PHYSICAL | |
Weight | 630g |

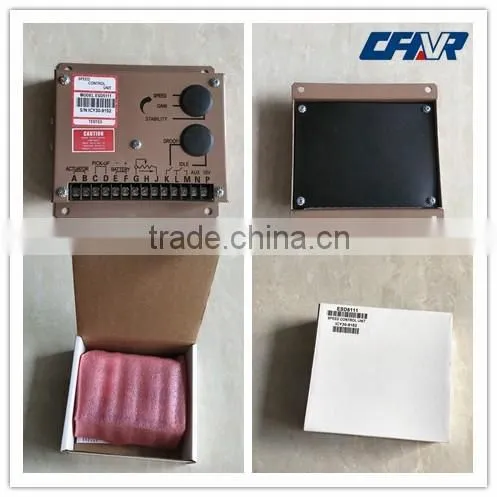

Packaging: Standard Carton Packing
