single phase avr SE350:
Technical parameter:
| MARATHON AVR SE350 | |
| Sensing & Power Input | 190-240 Vac |
| Burden | 500VA |
| Output Power-Continuous | 73 Vda at 3.5 Adc(255w) |
| Output Power-Forcing(240 Vac Input Power) | 105 Vdc at 5 Adc(525w) |
| Regulation | 1.00% |
| Remote Voltage Adjustment Range | ±10% with 2000 ohm rheostat ±5% with 1000 ohm rheostat |
| Frequency Compensation | Adjustable |
| Roll off ferquency | 54-61 Hz for 60 Hz 45-51 Hz for 50 Hz |
| Operation | Weight6.5 oz |
| Power Dissipation | 8 watts maximum |

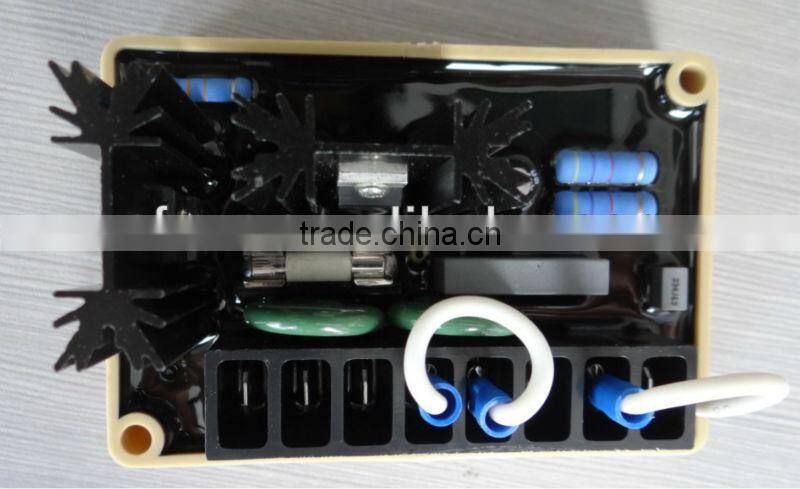

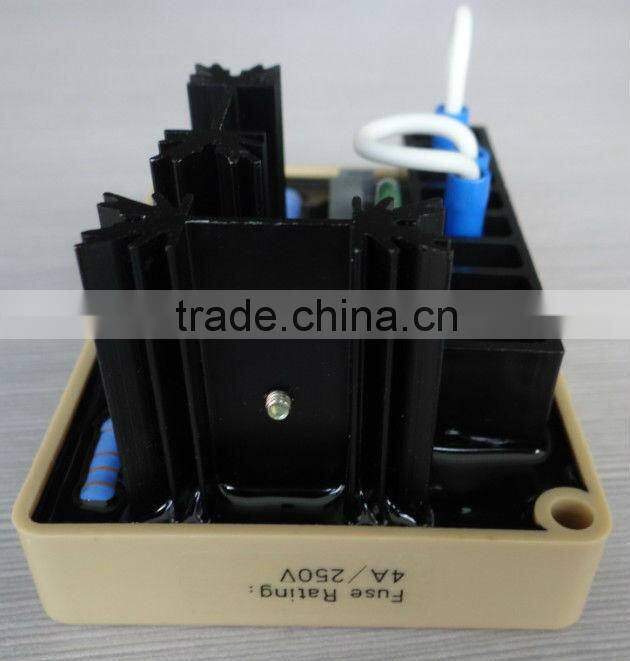

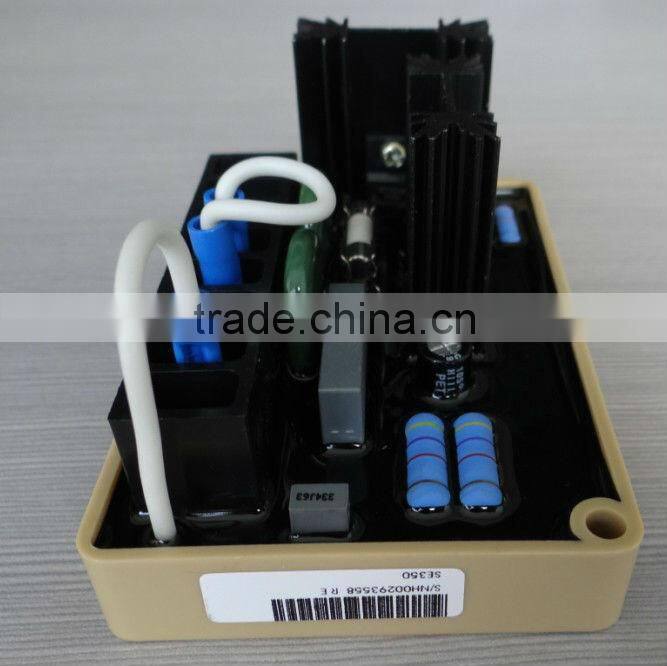

The SE350 voltage regulator is an encapsulated electronic voltage regulator that controls the output of a brushless AC generator by regulating the current into the exciter field.
Packaging: Standard Carton Packing
Payment Terms:
1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Terms:
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.
2.Started export since the year of 2008,with quick response to serve the oversea customers
3.Have already passed the strict quality inspection of ISO9001:2000 quality management system
4.Strong R&D Team to design and test products
5.Professional designers and technicians to provide technical assitance
6.Strict quality control process with strict standards
7.Strong installation consulting support
8.Quick after-sale technical advice and guidance
