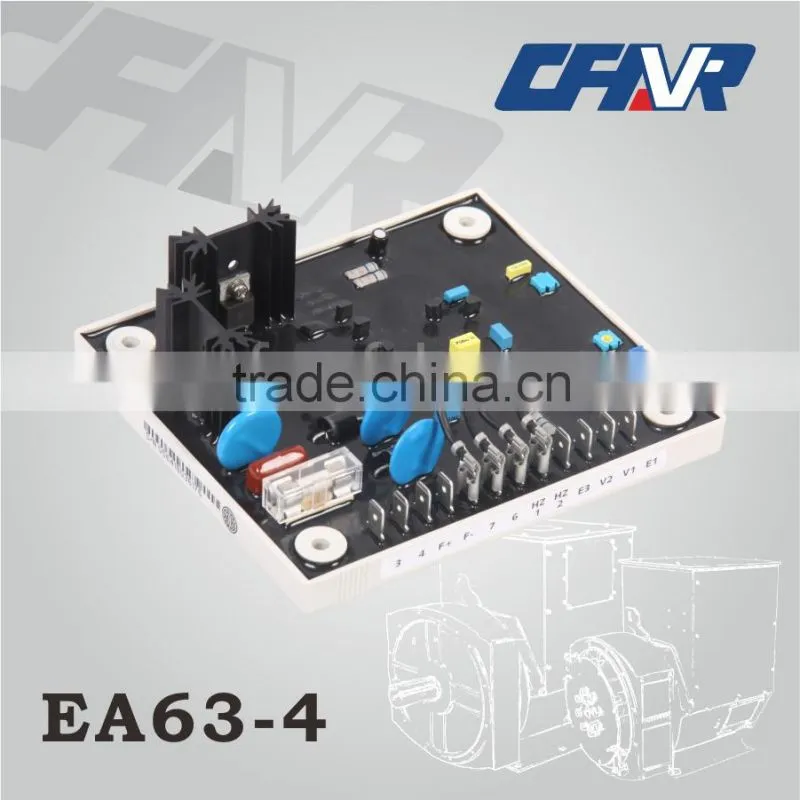

2015 Hotest Seller EA63-4 Generator AVR :
Features:
1· < ±1% Regulation
2· Under Frequency Protection
3· Over Excitation Shut Down
4· EMI Suppression
5· Adjustable Voltage & Stability
6· Built-in High Breaking Capacity Fuse
Technical data:
Model NO. |
EA63-4 |
Sensing Input |
Voltage 120(95~139) or 240(190~277), 1 Phase 2 Wire |
Power Input |
Voltage 95~139 V AC, 1 Phase 2 Wire |
Output |
Voltage Max. 63V DC |
Voltage Regulation |
< ±1% (with 4% engine governing) |
Voltage Build-up |
Residual volts at AVR terminal > 5 VAC |
External Volts Adjustment |
±15% with 10 KΩ 1 watt trimmer |
Thermal Drift |
0.05% per °C change in AVR ambient |
Unit Power Dissipation |
Max. 15 watt |
EMI Suppression |
Internal Electromagnetic Interference Filtering |
Under Frequency Protection |
Knee point adjustable range 45~55 Hz |
Over Excitation Shutdown |
Field volts shut down after time delay if exciter field volts exceeds 95 VDC ±5% |
Environment |
Operating Temperature : -40°C~60°C |
AVR Controls Functions |
VOLT ADJ : Voltage Adjustment |
Shock |
Withstands up to 20 G in each X, Y, Z axes |
Dimensions |
140.0(L) x 125.0(W) x 48.0(H) mm |
Weight |
208 g ±2% |
Photo:
Why to choose us ?
1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.
2.Started export since the year of 2008,with quick response to serve the oversea customers
3.Have already passed the strict quality inspection of ISO9001:2000 quality management system
4.Strong R&D Team to design and test products
5.Professional designers and technicians to provide technical assitance
6.Strict quality control process with strict standards
7.Strong installation consulting support
8.Quick after-sale technical advice and guidance
Our factory
Payment Terms
Payment Terms:
1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Terms:
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
