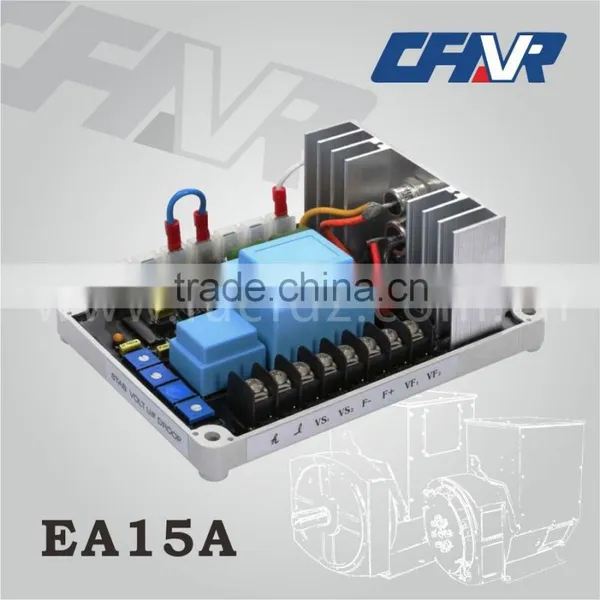

Generator Spare Parts EA15A Avr
US$ 70 - 100
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Chengfeng
Model Number:
EA15A
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou / Xiamen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EA05AF Generator AVRUS$ 10 - 100MOQ: 10 Pieces -
EA05AF AVR Automatic Voltage RegulatorUS$ 10 - 100MOQ: 10 Pieces
-
EA05AF AVR Circuit for GeneratorUS$ 10 - 100MOQ: 10 Pieces
-
Kutai AVR EA440 Compatible Replacement for Sx440US$ 10 - 100MOQ: 10 Pieces
-
AutomatVoltagGenera Stamford AVR EA440-TAVR,SX440US$ 10 - 100MOQ: 10 Pieces
Place of Origin
Fujian, China
Brand Name
Chengfeng
Model Number
EA15A
Usage
Other, SVC, Regulating Voltage for Generator
Phase
Single Phase
Current Type
DC
generator spare parts EA15A avr :
-
EA15A Introduction:
Generator Automatic Voltage Regulator 15 Amp 3 Phase Sensing
EA15A 15 Amp 3 Phase Sensing self excited brushless type genset voltage regulator is an universal AVR to replace genset with 3 phase sensing requirement.EA15A Features:
- Voltage Regulation < ±0.5%
- 220/380/440 VAC Input Voltage Sensing
- 3 Phase Sensing
- High 15A Output Current
- 50/60 Hz Under Frequency Protection
- Soft Start Ramping
- Built-in High Breaking Capacity Fuse
Model NO. EA15A Sensing Input Voltage 220/380/440 VAC 3 phase 3 wire
Frequency 50/60 Hz selectablePower Input Voltage 100~300 VAC 1 phase 2 wire Output Voltage Max. 90 VDC @ 240 VAC input
Current Continuous 15A, Intermittent 20A for 10 sec.
Resistance Min. 4 Ohm @ 35 volts outputVolts Regulation < ±0.5% (with 4% engine governing) Voltage Build-up Residual volt. at AVR terminal > 5 VAC External Volts Adjustment ±15% with 5 K Ohm 1 watt trimmer Unit Power Dissipation Max. 8 watt Soft Start Ramp Time 2 sec. Thermal Drift 0.03% per °C change in AVR ambient Under Frequency Protection 60 Hz system presets knee point at 55 Hz
50 Hz system presets knee point at 45 HzEnvironment Operating Temperature : -40~65 °C
Storage Temperature : -40~85 °C
Relative Humidity : Maximum 95%
Vibration : 3.3G @ 100~2 KHzAVR Controls Functions VOLTS : Voltage Adjustment
STAB : Stability Adjustment
U/F*: To Set the U/F Knee Point (*U/F: Under Frequency Protection)
The following are our products:
1. CF Brushless AVR: CF-8A, CF-12A, CF-15A,SAVRH-75A, SAVRH-PCB, SAVRL-75A, SAVRL-PCB.
2. Stamford AVR: AS440, MX321, MX321-A, MX341,MX341-A, SX440, SX440-A, SX440-T, SX460, SX460-A.
3. Leroysomer AVR: R230, R438, R448, R449, SSAYEC432.
4. Marathon AVR: SE350.
5. Brush AVR: DX-2E, DX-5E, DX-7E, DX-8E, DX-11E, DX-05A.
6. Engine Governor: 3036453, 34008326, EFC3044196, ESD5111, ESD5500E.
7. Controller: CTR101, CTR168, DSE501K, DSE5110
8. Kutai AVR: EA04C, EA05A, EA06, EA230, EA16A.
For more detail informations, would you please visit our website:
Have a nice day. Thanks.
