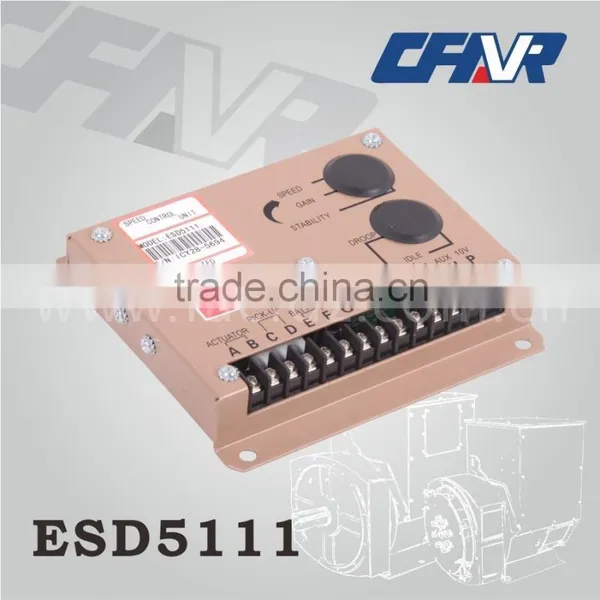

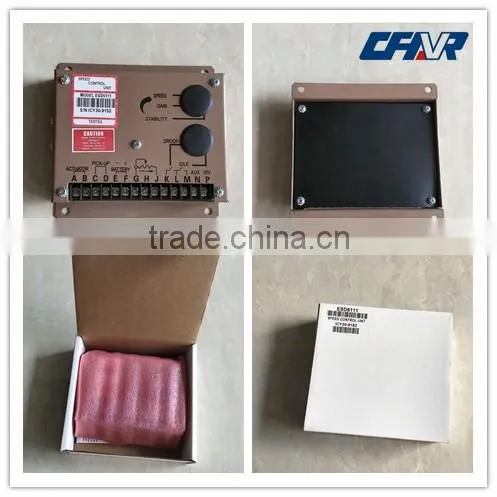

ESD5111 engine governor:
The ESD5111 series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.
Isochronous Operation/Steady Stability: +/-0.25% or better
Supply: 12 or 24 VDC Battery Systems(transient&reverse voltage protected)
Power Consumption: 50 ma continuous plus acutator current
Maximum Actuator Current at 25celsius(77celsius F): 10 Amps continuous
| PERFORMANCE | |
| Isochronous Operation/Steady State Stability | ± 0.25% or better |
| Speed Range/Governor | 1K-7.5K Hz continuous |
| Speed Drift with Temperature | ± 1% Maximun |
| Idle Adjust CW | Min. 1200Hz. below set speed |
| Idle Adjust CCW | Min. 4100Hz. below set speed |
| Droop Range | 1-5% regulation |
| Droop Adj. Max. (K-L Jumpered) | 875Hz., ± 75Hz. per 1.0 A change |
| Droop Adj. Min. (K-L Jumpered) | 15Hz., ± 6Hz. per 1.0 A change |
| Speed Trim Range | ± 200Hz. |
| Remote Variable Speed Range | 500 -7.5Hz. or any part thereof |
| Terminal Sensitivity | J: 100Hz., ± 15Hz/Volt @ 5.0 K Impedance |
| L: 735Hz., ± 60Hz/Volt @ 65 K Impedance | |
| N: 148Hz., ± 10Hz/Volt @ 1Meg. Impedance | |
| P: 10V DC Supply @ 20ma Max. | |
| Speed Switch Adjustment Range | 1000-10000Hz. |
| ENVIRONMENTAL | |
| Ambient Operating Temperature Range | -40°c to +85°c |
| Relative Humidity | up to 95% |
| Storage Temperature | -55°c ~ 90°c |
| Shock | 20-100HZ 500mm/Sec. |
| INPUT POWER | |
| Supply |
12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) |
| Polarity | Negative Ground(Case Isolated) |
| Power Consumption | 50mA continuous plus actuator current |
| Maximum Actuator Current at 25 | 10Amps continuous |
| Speed Sensor Signal | 0.5-120 Volts RMS |
| PHYSICAL | |
| Weight | 630g |
Packaging: Standard Carton Packing
Payment Terms:
1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Terms:
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.
2.Started export since the year of 2008,with quick response to serve the oversea customers
3.Have already passed the strict quality inspection of ISO9001:2000 quality management system
4.Strong R&D Team to design and test products
5.Professional designers and technicians to provide technical assitance
6.Strict quality control process with strict standards
7.Strong installation consulting support
8.Quick after-sale technical advice and guidance
Skype: cfavrcalling Tel: 0086 13515069913
Welcome to visit our website.
