2015 Hotest GAVR-20 AVR for Generator :
CF-20A AVR: applicable to Brushless Generator.
CF series AVR is named by our company name “ChengFeng”. So we are the leader of CF AVR.
Good quality & high range spare parts make superior products.
Trust + Professional + Speed
Technical parameter:
| Model | GAVR-20A |
| Sensing Input Voltage | 220/400VAC,1phase 2wire |
| Power Input Voltage | 180~240VAC, 1phase 2wire |
| Output | Voltage Max.90VDC@240VAC input |
| Current Continuous 6A | |
| Intermittent 15A for 10SEE | |
| Resistance Min.10Ω Max 100Ω | |
| Voltage Build-up | esidualvolts at AVR teminal >5VAC |
| External Volts Adjustment | +/-7%with 1KΩ 1watt trimmer |
| Unit Power Dissipation | Max.8Watt |
| Under Frequency Protection | 60Hz system presets knee point at 57Hz |
| Factory Settings | 50Hz system presets knee point at 47Hz |
The following are our products:

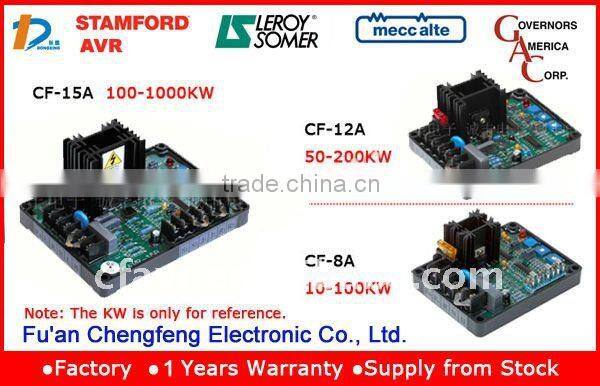

1. CF Brushless AVR: CF-8A, CF-12A, CF-15A, GAVR-15A, SAVRH-75A, SAVRH-PCB, SAVRL-75A, SAVRL-PCB.
2. Stamford AVR: AS440, MX321, MX321-A, MX341,MX341-A, SX440, SX440-A, SX440-T, SX460, SX460-A.
3. Leroysomer AVR: R230, R438,R448, R449, SSAYEC432.
4. Marathon AVR: SE350.
5. Brush AVR: DX-2E, DX-5E, DX-7E, DX-8E, DX-11E, DX-05A.
6. Engine Governor: 3036453, 34008326, EFC3044196, ESD5111, ESD5500E.
7. Controller: CTR101, CTR168, DSE501K, DSE5110
For more detail informations, would you please visit our website:
Have a nice day. Thanks.
