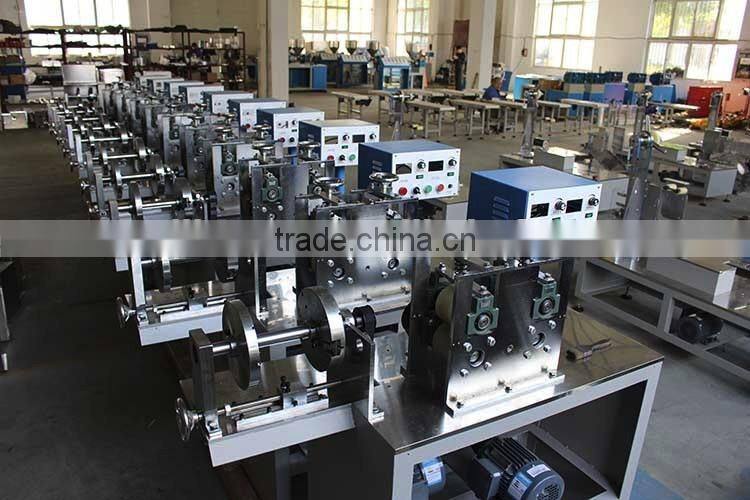

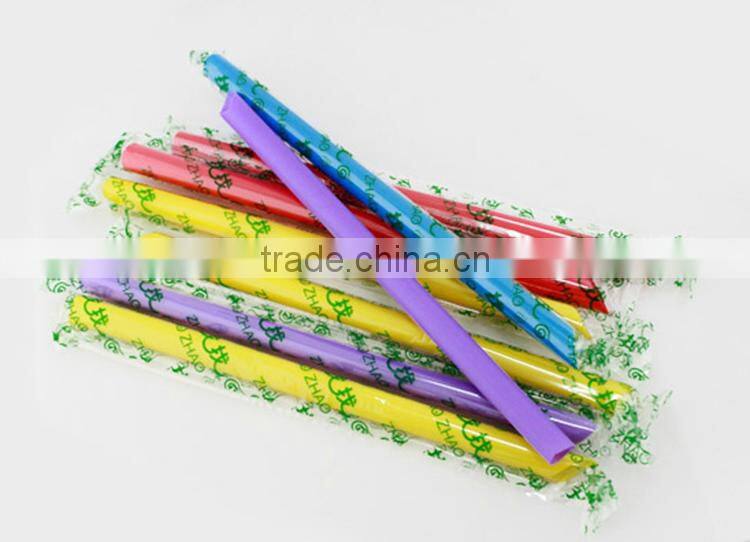

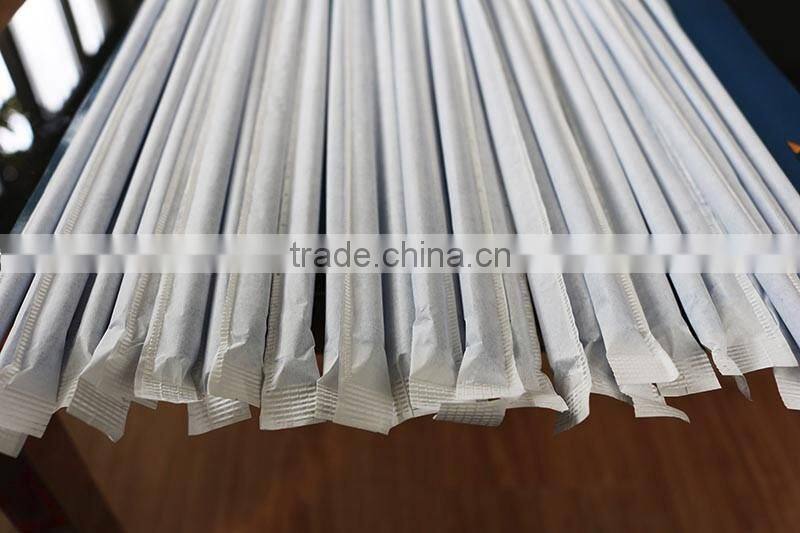

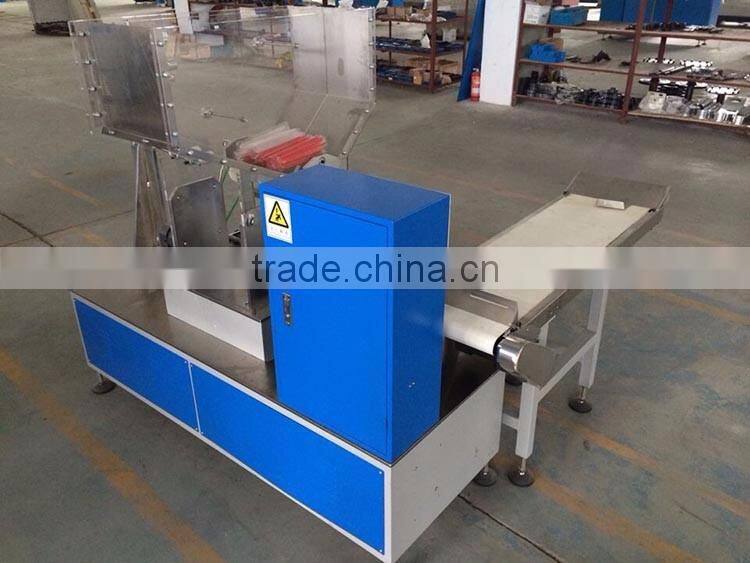

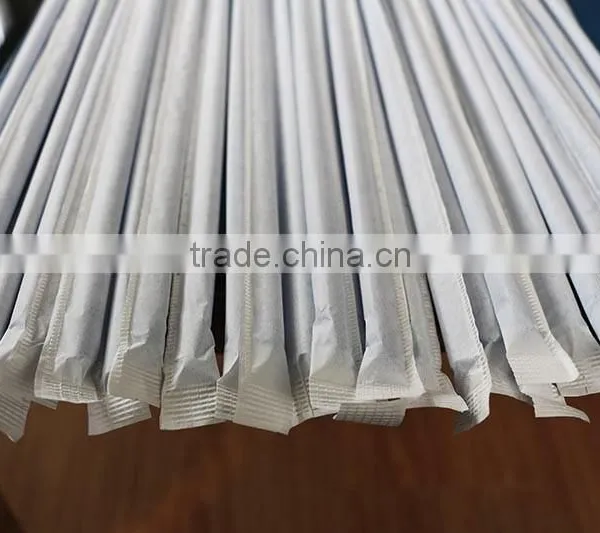

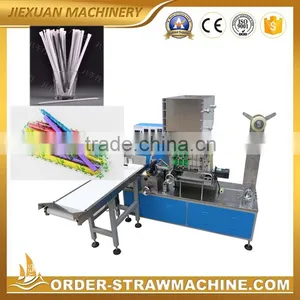

031 series packing drinking straw machine is an equipment for packing straight or flexible straw in bag automatically. The method of packaging involves loading the finished drinking straws into a supply hopper. At the bottom of the hopper are two wheels with transmission belt. The drinking straws drop out of the hopper and are picked up one at a time by rotating wheels. As the wheel rotates, it moves the drinking straws and packaging material (paper or bopp film) along to groove connecting to two mold wheels with cutting knife. The sealed sheet of drinking straws then travel along the conveyor which with cylinder and counter. The individual drinking straw then move along a conveyor to a collection area. The individual drinking straws are then bundled together and packed in boxes or pouches for shipping.

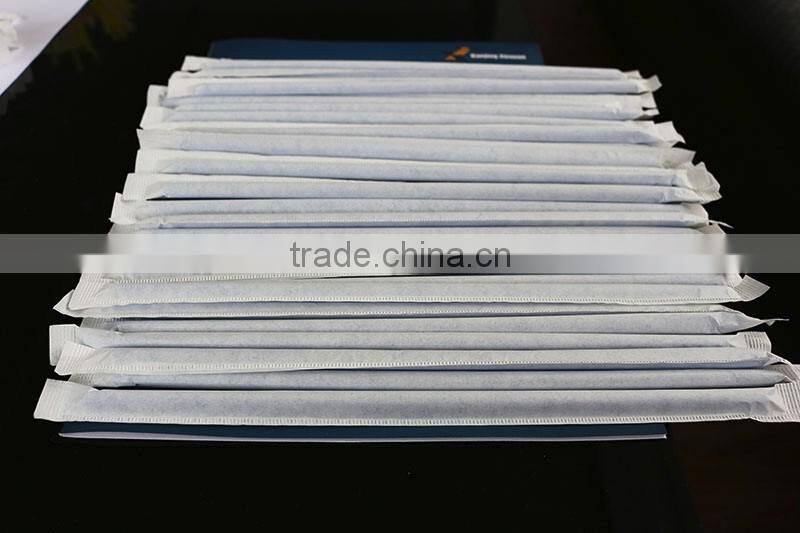

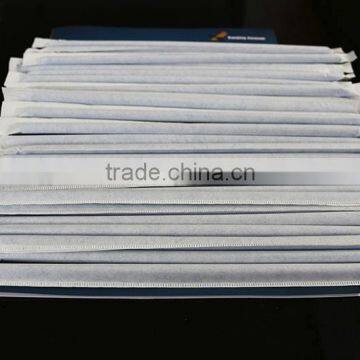

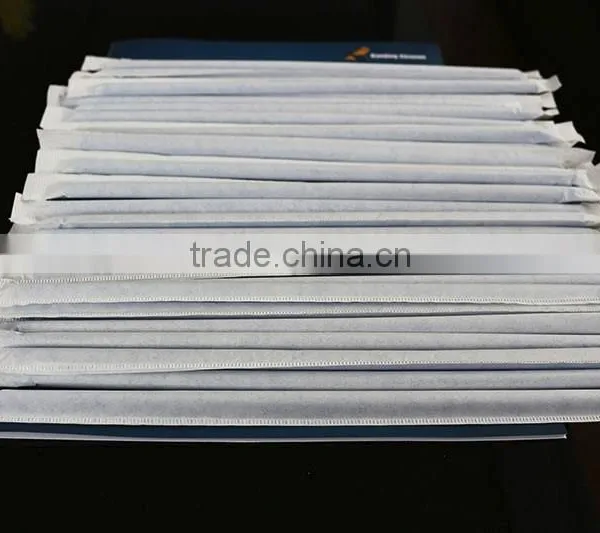

1.Single piece drinking straw packing, feeding and all processes can be completed at one time.
2.Automatic counting design, with cylinder, convenient for secondary packing.
3.Super high speed and considerable capacity.

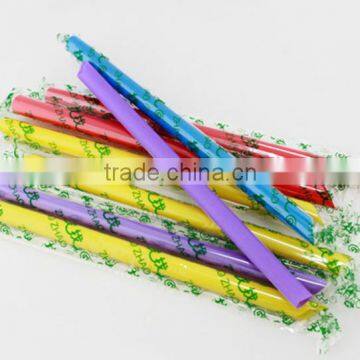

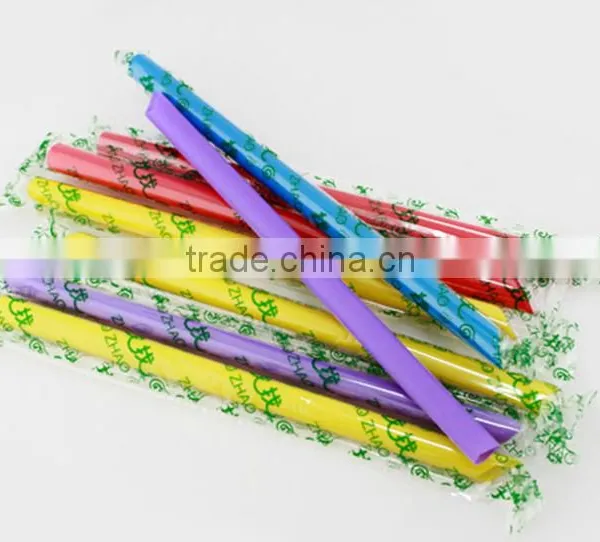

This kind of new machine is ideal for packing a wide range of straws(both straight and flexible one). This machine makes your straw packing operations easier and more efficient, and with highly reliable performance for a long service time.
Capacity |
film: 600~700pcs/min, paper: 500 pcs/min |
|
Packing method |
3 sides sealing |
|
Packing material |
Paper/Bopp film |
|
Width of film/paper normal |
27~55mm |
|
|
Straw specification
|
Diameter |
Φ5mm~Φ13mm |
Straw length |
13cm~27cm Standard |
|
Machine Size L×W×H |
1.5m*0.8m*1.4m +1.3m*0.4m*0.7m |
|
Driving motor |
0.75kw(VFD) |
|
Machine weight |
300kg |
|
1. Quick and professional pre-sales and after-sales services;
2. Factory quality controlled services;
3. Products fast delivery guarantee.
1. Q: Are you a factory or trading company?
We are factory and also have our own trading company.
2. Q: What makes you different from others?
(1)We are lifeful company and aims to build long terms business with you.
(2)We promise to reply to you within 8 hours - sometimes even immediately.
(3)As a manufacturer, we can ensure the delivery time and after-sales services.
3. Q: How can I know the status of my order?
We will send you infoand photos at different production stage of your order.
You will get the latest information in time.
4. Q: Where is your factory located at? How can I visit there?
Our factory is located in Nanjing, Jiangsu Province, China,
(1)You can fly to Nanjing Lukou Airport directly. We can pick you up at the airport;
(2)You can fly to Shanghai Pudong International Airport then come to Nanjing by
High-speed railway, then we will pick you up in the railway station.
