3D Tilt Compensated Compass Digital Heading Sensor Best Price
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RION
Model Number:
DCM308
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Magnetic Distortion Compensation Compass Gyro Low Cost High PerformanceNegotiableMOQ: 1 Piece -
Manual Calibrated Tilt Switch Low CostNegotiableMOQ: 1 Piece
-
Newest Underground Gyro Working Underground Without GPSNegotiableMOQ: 1 Piece
-
Stable Marine Electronic Compass Supplied by FactoryNegotiableMOQ: 1 Piece
-
Accurate Angle Measure Wireless SensorNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
RION
Model Number
DCM308
Usage
Magnetic Sensor
Theory
Other, magnetic compass
Output
Digital Sensor
Specifications
Compass Digital1.Heading accuracy:0.5 degree
2.Small size,
3.low power consumption
4.Customized
3D Tilt Compensated Compass Digital Heading Sensor Best Price
Product Description
Features:
- Heading Accuracy: 0.5 degrees
- Heading resolution:0.1 degrees
- pitch accuracy:0.08 degrees
- Pitch resolution:0.01 degrees
- Roll accuracy:0.08 degrees
- Roll resolution: 0.01 degrees
- Power supply:5V
- Current draw:29mA(Sleep mode:1mA)
- Maximum Dip Angle: ±90 degrees
- RS232/RS485/TTL Optional
- Small size: L50*49*15mm
- Small form factor Low power consumption
- Hard and soft iron correction with quality of calibration score
- Limited Tilt User Calibration
- Widely working temperature: -40-+85 degrees celsius
- Storage temp:-45-+125 degrees celsius
Applications:
- High performance ROV navigation
- GPS system integration
- Vehicle tracking
- Remote terrestrial antenna direction indicators
- Sonar targeting systems
- 3-axis magnetic field sensing
- Survey equipment
- Autopilot
- Satellite positioning Search
- Robotic systems
- Navigation system

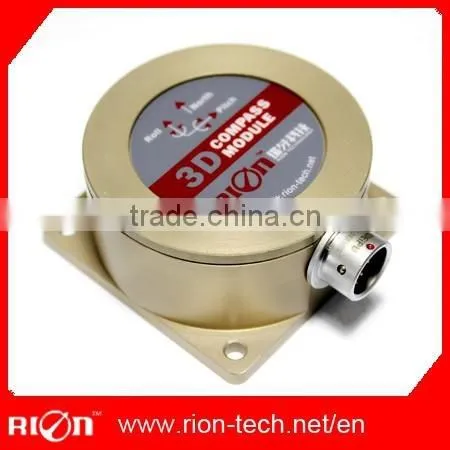

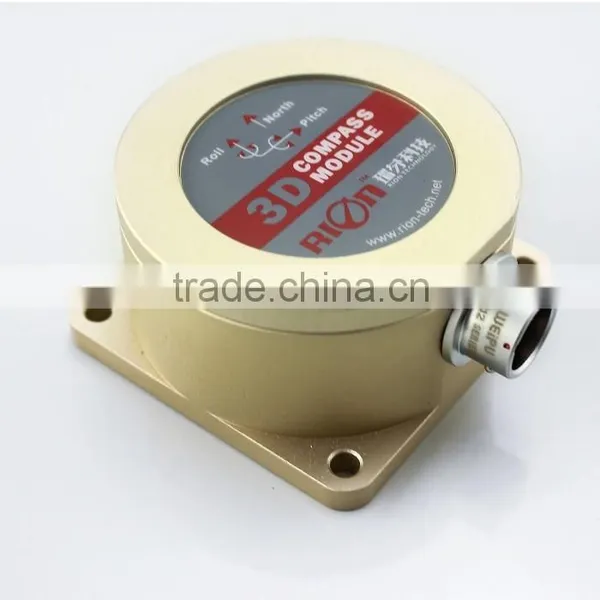

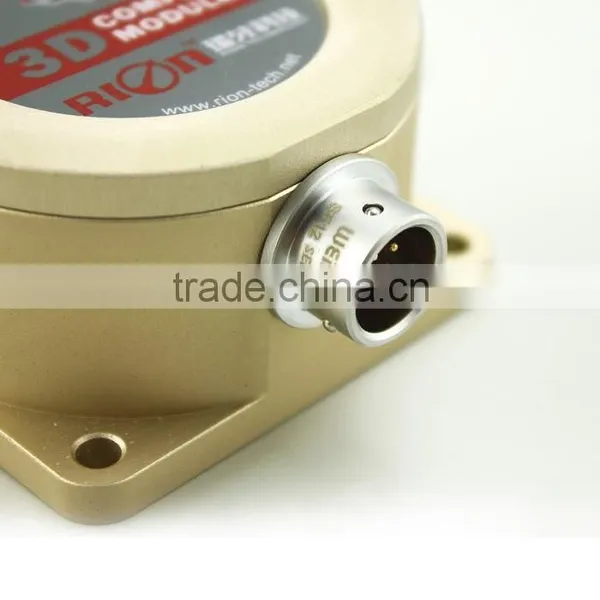

Product Show
DCM308B Measuring Directions&Fix
The DCM308B 3D electronic compass azimuth is using geomagnetic principle, so it is very important to
select a minimum magnetic interference environment for installation positon. Please place and install the DCM308B away from the iron, magnets, engines and other magnetic objects as much possible as you can. Need control over 40CM distance(different magnetic interfere with the compass in different distance ) at least even there are these magnetic medium around . In order to ensure optimal measurement environment please must use the M4 anti-interference screws for installation .
