High Resolution Sealed Inclination Sensor Full Temperature Compensation

cartons

Specifications

High Resolution Sealed Inclination Sensor Full Temperature Compensation

Description:

 ACA2000 is a analog balanced servo inclinometer which manufactured by Rion company, the principle is composed of the non-contact displacement sensor, torque motor, error &amplifier circuit, the feedback circuit and cantilever mass five parts. This series inclinometer accuracy is far superior than the inclinometer relative tothe electrolyte principle or the capacitance principle on the nonlinearity,repeatability, hysteresis, temperature drift and working temperature, resistance shock anti-vibrationand other properties.Internal integration of the 24 ARM high-end system,resolution 0.0001 ° ,precision 0.001 ° ,temperature drift: 0.0008 ° C / ° ,response frequencies up to 300Hz (baud rate 115200),it is a highly competitive industry product nowadays .Non-contact installation features make ACA2000 withsuperior system integration, Simply fix the sensor on the measured surface by screws , then can automatically calculate the object posture inclination, easy to use , no need to find the relative change two surfaces for mounting . With strong ability resistance to external electromagnetic interference and to withstand shock and vibration,in the domestic counterparts products with absolute competitive advantage, specialized in application in the industrial and military fields where the high-end user requirements.

Features:

Dual-Axis Inclinometer                                                 Measuring Range :±1~±90° optional

Response frequence: 300Hz                                       Wide voltage input: 9~15V

Wide temperature working: -40~+85°C                       Resolution: 0.0001°

Size:93.8×55.5×20.5mm(customized)                         IP67 protection class

Output mode RS232,RS485,TTL,PWM are optional  Water-proof air-plug

Application:

 Engineering vehicles automatic leveling                          Bridge & dam detection

Precise equipment level control                                       Medical facilities angle control

Underground drill posture navigation                              Railway gauging rule , gauge equipment leveling

Based onthe angle direction measurement                     Geological equipment inclined monitoring

Directional satellite communications antenna pitching angle measurement

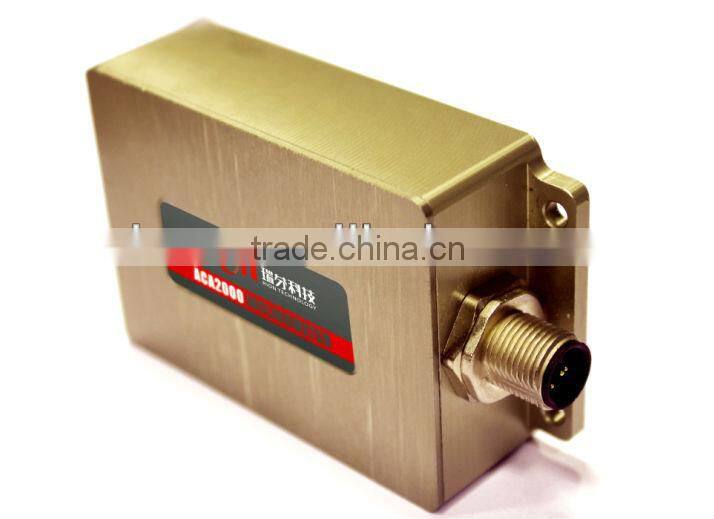

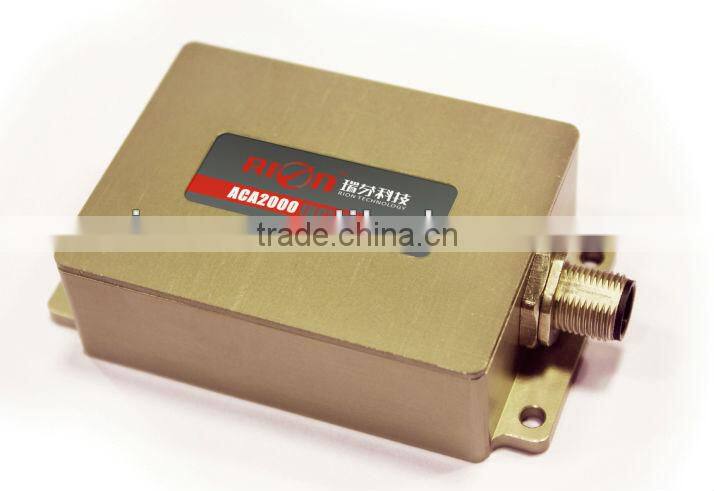

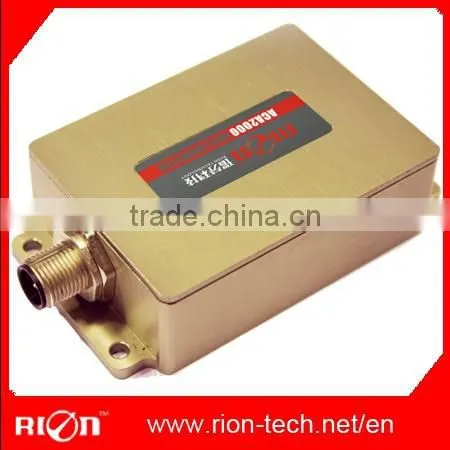

Product Show

Technical Data

Ordering information

Measuring Directions&Fix

The installation must guarantee the product bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the sensor. This product can be installed horizontally or mounted vertically (mounted vertically selection is only applicable to the single axis), for installation please refer to the following scheme.

Dimension

Production installation notes :

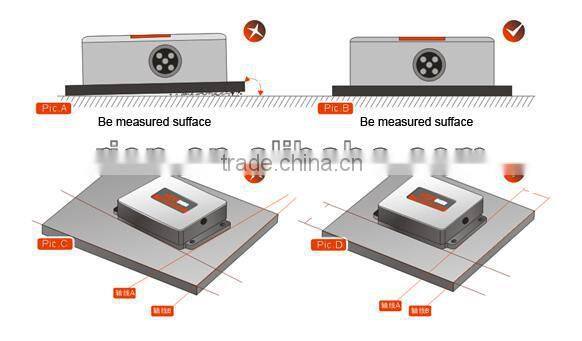

Please follow the correct way to install tilt sensor, incorrect installation can cause measurement errors, with particular attention to the "surface", "line"::1)The Sensor mounting surface and the measured surface must be fixed closely,  smoothly, stability,if mounting surface uneven likely to cause the sensor to measure the angle error. See Figure Pic.AB

2) The sensor axis and the measured axis must be parallel ,the two axes do not produce the angle as much as possible. See Figure Pic.CD

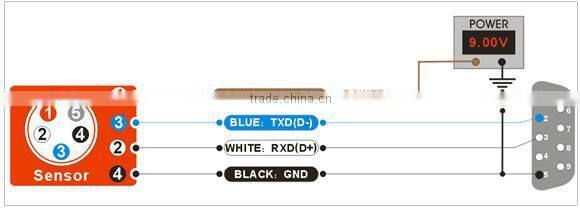

Electrical Connection

Shenzhen RION, as a positon sensor manufacturer and solution expert, attaches much importance to products reseach and develop which spend over 20% of annual profit. We have the most R&D personnel and best technology comparing with our peer to raise our up on the high level of sensor field. And we orientate ourself to market tightly and engage ourself into providing the most considerate and professional solution and service to customers. RION introduce advanced equipment, such as TEMP&HUMI chamber, salt spray corrosion test chamber, high precision automatic turntable, high precision marble checking platform, digital thermostat drying oven, electrostatic discharge tester and 360 degree mechanical turntable etc, and set up Environmental Testing Laboratory, Product Aging Chamber, 2D&3D Posture Calibration Room and Shake&Impact Test Room for R&D and factory test.

Beside owning excellent hardware, RION also developed 15 sets of software independently and keep developing, including multi-sensor monitor software, remote sensor monitor software, synchronous dynamic l tracking 3D presentation software, tilt switch early warning and debugging software and sensor serial port setting presentation software etc which could apply to XP, Win7, Win8, WinCE and Android system. RION, owning talent and diligent personnel, advanced technology and market-orientated strategy, engages itself in offerring you the most considerate and professional solution and service of position sensor.

You satisfaction is our ultimate destiny.

Certificates & Honor

We will ship your order within 7 business days after we receive the full payment.

If you choose ship by DHL/UPS/FEDEX/TNT,it will take 3-5 work days; If you choose EMS ,it will take 5-7 work days.

One year warranty is provided, during that period, we exchange and fix the malfunction item forfree, and still we take care of products for its lifetime.

we are position sensor solution expert, full service and support before, in the middle of and after sales would be provided.

We accept the payment by Escrow/Alipay,including Paypal,Credit Card and T/T, WU.
