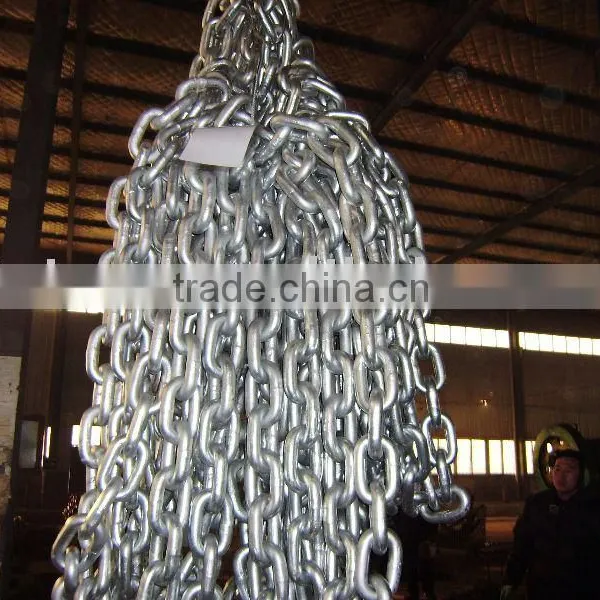

Weld Anchor Chain for Boat

Weld Anchor Chain for Boat thumbnail-1
Weld Anchor Chain for Boat photo-1
US$ 1,000 - 2,000 MOQ: 2 Tons
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
TSD
Model Number:
12~65mm
Contact Supplier Request Quote Chat Now
Qingdao Tai Star Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name TSD
Model Number 12~65mm
Structure Welded Chain
Function Other, use for ship
Material Other, CM490, CM690
Standard or Nonstandard Standard

Specifications

1) Weld anchor chain, open link chain,
studless link chain
2) Surface hot dip galvanized
3) Diameter from 12 to 65mm

1) Weld anchor chain,studless chain

   outside length is 6 x dia.
   outside width is 3.6 x dia

2) Surface: hot dip galvanized
3) Diameter: from 12 to 65mm
4) Grade: 2  Material: 20Mn

6) packing: in wire rope bundle




OPEN LINK / STUDLESS LINK ANCHOR CHAIN, LINK SIZE (6×3.6D), TEST LOAD AND WEIGHT
D(φ)
DIAMETER		 CHAIN LINK SIZE BM1
U1 OPEN LINK CHAIN		 BM2
U2 OPEN LINK CHAIN		 BM3
U3 OPEN LINK CHAIN		 APPROX.
WEIGHT
 L
OUTSIDE
LENGTH		  B
OUTSIDE
WIDTH		 PROOF
LOAD		 BREAKING
LOAD		 PROOF
LOAD		 BREAKING
LOAD		 PROOF
LOAD		 BREAKING
LOAD		 27.5M
INCH MM MM MM KN KN KN KN KN KN KG
1/2 12.5 75 45 28.75 57.81 41.20 82.60 56.40 112.80 85.41
9/16 14 84 50.4 34.78 69.93 51.00 101.90 70.76 141.51 106.55
5/8 16 96 57.6 47.10 94.72 66.20 132.30 92.42 184.83 139.43
11/16 17.5 105 63 56.35 113.31 78.89 157.78 110.55 221.10 178.35
3/4 19 114 68.4 66.42 133.57 93.60 187.20 130.32 260.64 217.68
13/16 20.5 123 73.8 77.33 155.49 108.64 217.27 151.70 303.42 229.14
7/8 22 132 79.2 89.06 179.08 125.40 250.90 174.40 349.40 264.49
15/16 24 144 86.4 105.98 213.25 149.90 298.90 207.90 415.80 341.82
1-1/16 26 156 93.6 124.38 250.12 175.40 350.80 244.00 488.00 369.94
1-1/8 28 168 100.8 144.26 290.08 203.80 406.70 283.00 566.00 427.04
1-3/16 30 180 108 165.60 333.00 234.20 467.50 324.90 649.80 490.98
1-1/4 32 192 115.2 188.42 378.88 265.60 531.20 369.60 739.30 559.65
1-5/16 34 204 122.4 212.70 427.72 299.90 599.80 417.30 834.60 671.52
1-7/16 36 216 129.6 238.46 479.52 336.10 672.30 467.80 935.70 707.85
1-1/2 38 228 136.8 265.70 534.28 374.40 748.70 521.30 1042.50 788.98
1-9/16 40 240 144 294.40 592.00 414.50 829.10 577.60 1155.20 869.36
1-5/8 42 252 151.2 324.58 652.68 457.70 915.30 636.80 1273.60 959.30
1-3/4 44 264 158.4 356.22 716.32 502.70 999.60 698.90 1398.00 1111.25
1-13/16 46 276 165.6 389.34 782.92 548.80 1097.60 763.90 1527.80 1152.07
1-7/8 48 288 172.8 423.94 852.48 597.80 1195.60 831.70 1663.50 1256.26
2 50 300 180 460.00 926.09 648.80 1293.60 902.50 1805.00 1360.41
2-1/16 52 312 187.2 497.54 1000.48 697.63 1395.26 976.14 1952.28 1485.61
2-1/8 54 324 194.4 536.54 1078.92 752.33 1504.66 1052.68 2105.36 1648.08
2-3/16 56 336 201.6 577.02 1160.32 809.09 1618.18 1132.10 2264.20 1715.97
2-5/16 58 348 208.8 618.98 1244.68 867.91 1735.82 1214.40 2428.80 1844.50
2-3/8 60 360 216 662.40 1332.00 928.80 1857.60 1299.60 2599.20 1973.29
2-7/16 62 372 223.2 707.30 1422.28 991.75 1983.50 1387.68 2775.36 2101.56
2-1/2 64 384 230.4 753.66 1515.52 1056.77 2113.54 1478.66 2957.32 2298.47
2-9/16 66 396 237.6 801.50 1611.72 1123.85 2247.70 1572.52 3145.04 2398.10
2-11/16 68 408 244.8 850.82 1710.88 1192.99 2385.98 1669.26 3338.52 2522.88
2-3/4 70 420 252 901.60 1813.00 1264.20 2528.40 1768.90 3537.80 2697.65
