SURFACE:SELF-COLORED OR ACCORDING TO CLIENT REQUEST
MATERIAL:(U1:CM370;U2:CM490;U3:CM690)

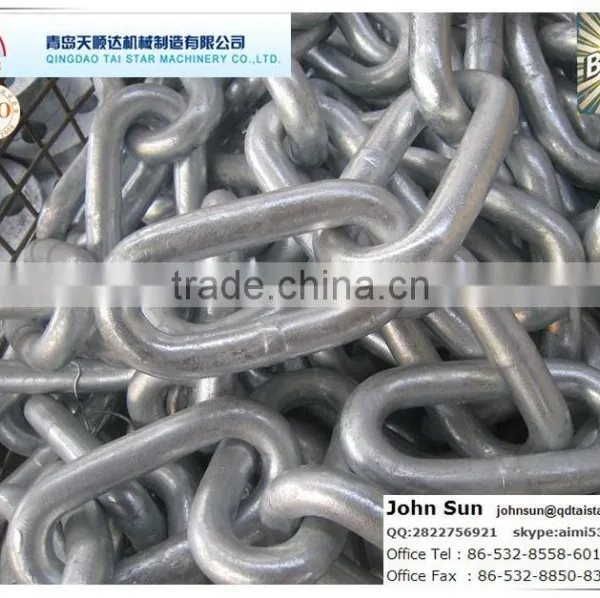

OPEN LINK / STUDLESS LINK ANCHOR CHAIN, LINK SIZE (6×3.6D), TEST LOAD AND WEIGHT
D(φ) DIAMETER | CHAIN LINK SIZE | BM1 U1 OPEN LINK CHAIN | BM2 U2 OPEN LINK CHAIN | BM3 U3 OPEN LINK CHAIN | APPROX. WEIGHT | |||||
L OUTSIDE LENGTH | B OUTSIDE WIDTH | PROOF LOAD | BREAKING LOAD | PROOF LOAD | BREAKING LOAD | PROOF LOAD | BREAKING LOAD | 27.5M | ||
INCH | MM | MM | MM | KN | KN | KN | KN | KN | KN | KG |
1/2 | 12.5 | 75 | 45 | 28.75 | 57.81 | 41.20 | 82.60 | 56.40 | 112.80 | 85.41 |
9/16 | 14 | 84 | 50.4 | 34.78 | 69.93 | 51.00 | 101.90 | 70.76 | 141.51 | 106.55 |
5/8 | 16 | 96 | 57.6 | 47.10 | 94.72 | 66.20 | 132.30 | 92.42 | 184.83 | 139.43 |
11/16 | 17.5 | 105 | 63 | 56.35 | 113.31 | 78.89 | 157.78 | 110.55 | 221.10 | 178.35 |
3/4 | 19 | 114 | 68.4 | 66.42 | 133.57 | 93.60 | 187.20 | 130.32 | 260.64 | 217.68 |
13/16 | 20.5 | 123 | 73.8 | 77.33 | 155.49 | 108.64 | 217.27 | 151.70 | 303.42 | 229.14 |
7/8 | 22 | 132 | 79.2 | 89.06 | 179.08 | 125.40 | 250.90 | 174.40 | 349.40 | 264.49 |
15/16 | 24 | 144 | 86.4 | 105.98 | 213.25 | 149.90 | 298.90 | 207.90 | 415.80 | 341.82 |
1-1/16 | 26 | 156 | 93.6 | 124.38 | 250.12 | 175.40 | 350.80 | 244.00 | 488.00 | 369.94 |
1-1/8 | 28 | 168 | 100.8 | 144.26 | 290.08 | 203.80 | 406.70 | 283.00 | 566.00 | 427.04 |
1-3/16 | 30 | 180 | 108 | 165.60 | 333.00 | 234.20 | 467.50 | 324.90 | 649.80 | 490.98 |
1-1/4 | 32 | 192 | 115.2 | 188.42 | 378.88 | 265.60 | 531.20 | 369.60 | 739.30 | 559.65 |
1-5/16 | 34 | 204 | 122.4 | 212.70 | 427.72 | 299.90 | 599.80 | 417.30 | 834.60 | 671.52 |
1-7/16 | 36 | 216 | 129.6 | 238.46 | 479.52 | 336.10 | 672.30 | 467.80 | 935.70 | 707.85 |
1-1/2 | 38 | 228 | 136.8 | 265.70 | 534.28 | 374.40 | 748.70 | 521.30 | 1042.50 | 788.98 |
1-9/16 | 40 | 240 | 144 | 294.40 | 592.00 | 414.50 | 829.10 | 577.60 | 1155.20 | 869.36 |
1-5/8 | 42 | 252 | 151.2 | 324.58 | 652.68 | 457.70 | 915.30 | 636.80 | 1273.60 | 959.30 |
1-3/4 | 44 | 264 | 158.4 | 356.22 | 716.32 | 502.70 | 999.60 | 698.90 | 1398.00 | 1111.25 |
1-13/16 | 46 | 276 | 165.6 | 389.34 | 782.92 | 548.80 | 1097.60 | 763.90 | 1527.80 | 1152.07 |
1-7/8 | 48 | 288 | 172.8 | 423.94 | 852.48 | 597.80 | 1195.60 | 831.70 | 1663.50 | 1256.26 |
2 | 50 | 300 | 180 | 460.00 | 926.09 | 648.80 | 1293.60 | 902.50 | 1805.00 | 1360.41 |
2-1/16 | 52 | 312 | 187.2 | 497.54 | 1000.48 | 697.63 | 1395.26 | 976.14 | 1952.28 | 1485.61 |
2-1/8 | 54 | 324 | 194.4 | 536.54 | 1078.92 | 752.33 | 1504.66 | 1052.68 | 2105.36 | 1648.08 |
2-3/16 | 56 | 336 | 201.6 | 577.02 | 1160.32 | 809.09 | 1618.18 | 1132.10 | 2264.20 | 1715.97 |
2-5/16 | 58 | 348 | 208.8 | 618.98 | 1244.68 | 867.91 | 1735.82 | 1214.40 | 2428.80 | 1844.50 |
2-3/8 | 60 | 360 | 216 | 662.40 | 1332.00 | 928.80 | 1857.60 | 1299.60 | 2599.20 | 1973.29 |
2-7/16 | 62 | 372 | 223.2 | 707.30 | 1422.28 | 991.75 | 1983.50 | 1387.68 | 2775.36 | 2101.56 |
2-1/2 | 64 | 384 | 230.4 | 753.66 | 1515.52 | 1056.77 | 2113.54 | 1478.66 | 2957.32 | 2298.47 |
2-9/16 | 66 | 396 | 237.6 | 801.50 | 1611.72 | 1123.85 | 2247.70 | 1572.52 | 3145.04 | 2398.10 |
2-11/16 | 68 | 408 | 244.8 | 850.82 | 1710.88 | 1192.99 | 2385.98 | 1669.26 | 3338.52 | 2522.88 |
2-3/4 | 70 | 420 | 252 | 901.60 | 1813.00 | 1264.20 | 2528.40 | 1768.90 | 3537.80 | 2697.65 |
| ANCHOR | JIS STOCKLESS ANCHOR | |
| BALDT ANCHOR | ||
| HALL ANCHOR | ||
| ANCHOR CHAIN | OPEN/STUDLESS LINK CHAIN | |
| STUD LINK CHAIN | ||
| CHAIN | English standard link chain | English standard Short link chain |
| English standard Medium link chain | ||
| English standard Long link chain | ||
| American standard link chain | American standard Proofcoil chain ASTM80(G30) | |
| American standard High test chain ASTM80(G43) | ||
| American standard Transport chain ASTM80(G70) | ||
| American standard Proofcoil chain NACM90(G30) | ||
| American standard Proofcoil chain NACM96(G30) | ||
| Germanic standard link chain | Germanic standard DIN763 link chain | |
| Germanic standard DIN764 link chain | ||
| Germanic standard DIN766 link chain | ||
| Germanic standard DIN5685 A/C link chain | ||
| Australian standard link chain | Australian standard Short link chain | |
| Australian standard Medium link chain | ||
| Australian standard Long link chain | ||
| Russia standard link chain | ||
| Dobber chain | ||
| Hatch board chain | ||
| Binding chain | ||
| Lifting chain | ||
| High tensility chain for mining | ||
| High intensity chain | ||
| ANCHOR ACCESSORIES | Anchor shackle | |
| Joint shackle | ||
| Kenter shackle | ||
| Swivel | ||
| SHACKLE | European Type Anchor Shackle SH01 | |
| European Type D Shape Shackle SH02 | ||
| US Type Shackle G210 G209 SH06/SH05 | ||
| US Type Shackle G2150 G2130 SH08/SH07 | ||
| JIS Type Shackle SH19 | ||
| OTHER PRODUCTS | CHAIN TENSIONER | |
| TOWING RING/CHIN BRACKET | ||
| BOLLARD | ||
| U-ANCHOR | ||
| EC-3ANCHOR | ||
Qingdao Tai Star Machinery Co.,Ltd.establish in 1996, is one of leading companies in China,specializing in producing anchor chain and chain.
Our compangy is located in Qingdao City,the area of our compang is about 40,000 square meters,and have fixed assets RMB90,000,000, our company have 200 employees,10 engineers and 30 professional technicians, factory yearly capacity is about 12,000 tons
We can manufacture Grade 1,Grade 2 and Grade 3 stud&studless anchor chain as well as various chain accessories. We can also manufacture English standard,American standard,German standard,and Russian standard chain,and high test chain,widely used in ship,mining,pulling,binding,lifting and so on,with diameter from 6mm to 70mm. Meanwhile,we can process special specification welded chain and chain assemblies according to sample or drawing of clients. Our products sell well at home and abroad,was favourably reviewed.
1. Are you a factory or a trading company?
We are a factory manufacturing,established in 1996,is one of leading companies in China,specializing in producing anchor chain and chain.
Our company is located in Qingdao China. The area of our factory is about 40,000 square meters, and has fixed assets RMB 90,000,000,it also has 200 employees, factory yearly capacity is about 12, 000 tons.
2. How do you ensure quality?
We have strict self inspection mechanism, Third party inspection is accepted
Guaranteeing quality inspection of each product before assembly and packing.
3. Where are your customer?
After 20 years of development,our customers all over the world.Our products sell well at home and abroad,was favourably reviewed.
How to order?
Order by FAX: You can print out a copy of your order and fax it anytime to us at +86 532 88508376
Order by TEL: our order line at +86 532 885586018 during regular business hours. Our regular business hours are typically 8:00 A.M. - 5:00 P.M. Beijing Standard Time.
Order by e-mail : send your order to us :
On Line Message :
Skype: aimi539 , QQ:2822756921 , WeChat:15865328520
Order face to face :Actual inspection to the factory:
NORTH INDUSTRIAL DISTRICT JIMO,QINGDAO CITY ,CHINA
Order Online: Using our on-line Function 24 hours per day, Send your inquiry details below:
