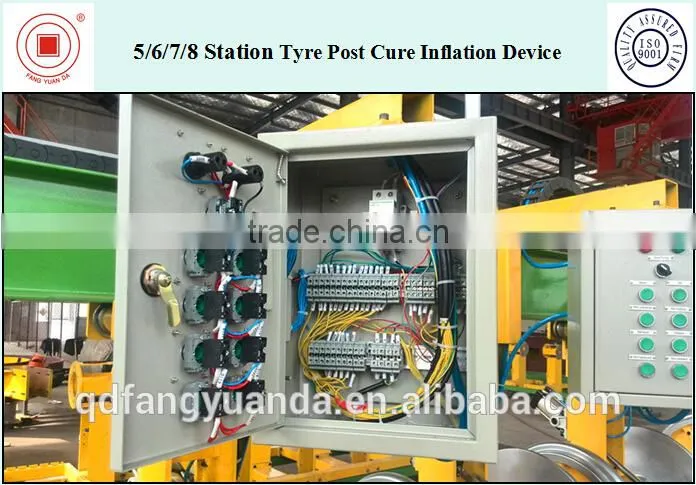

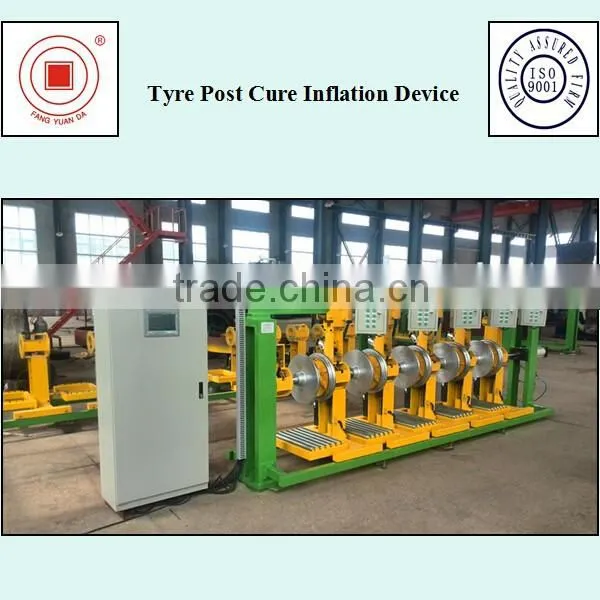

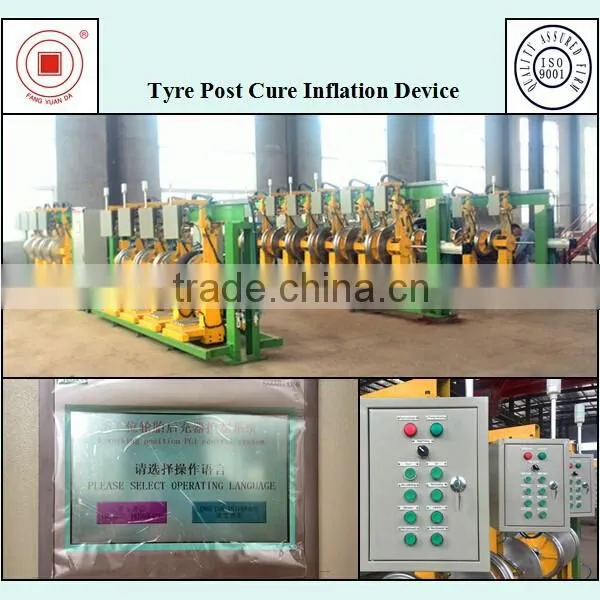

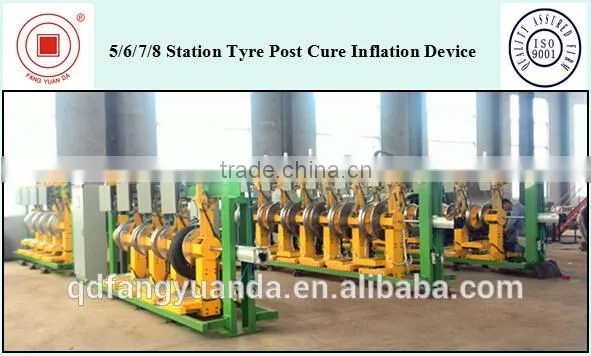

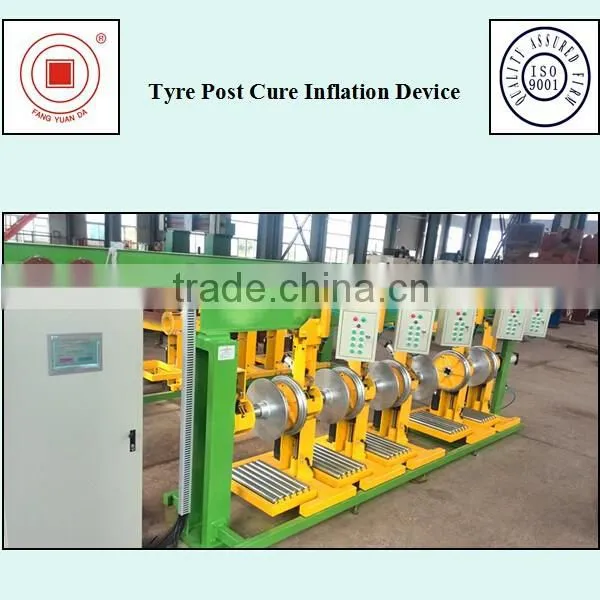

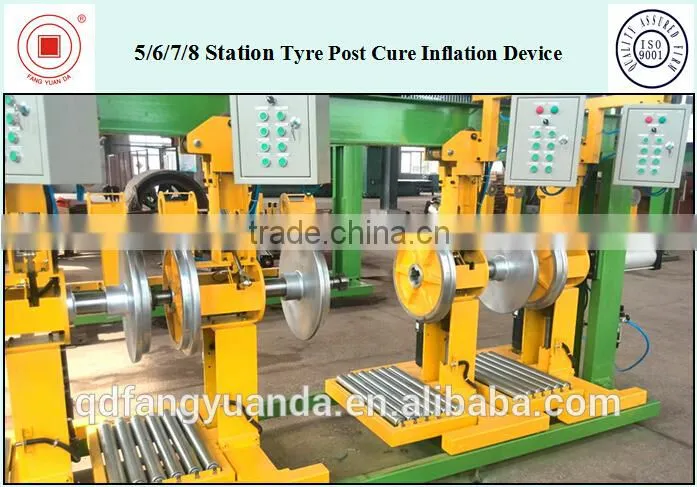

Tyre Post Cure Inflation Device
We can design and produce tyre inflation device according to customers' requirements.
1. Inflation Device -Technical Data:
Equipment Name |
4 Station Tyre Inflation Device |
5 Station Tyre Inflation Device |
6 Station Tyre Inflation Device |
8 Station Tyre Inflation Device |
Dimension and Weight |
5083*1200*2000 |
5000*1100*1900 |
6868*1200*2200 |
7520*1200*2000 |
Equipment Total Weight |
2400KG |
2700KG |
3700KG |
4200KG |
Locking Form |
Inner-retangular teeth locking |
Inner-retangular teeth locking |
Inner-retangular teeth locking |
Inner-retangular teeth locking |
Drive Method |
Motor, cylinder |
Motor, cylinder |
Motor, cylinder |
Motor, cylinder |
Diameter of Apply Tyre Rim |
19.5” – 22.5” |
17.5” – 19.5” |
22.5” – 24” |
20” – 22.5” |
Tyre Outside Diameter |
Min 900mm Max 1200mm |
Min 900mm Max 1100mm |
Min 1000mm Max 1300mm |
Min 900mm Max 1200mm |
Rim Width |
Min 250mm Max 350mm |
Min 180 Max 280mm |
Min 160mm Max 260mm |
Min 150mm Max 250mm |
Motor |
0.4KW 380V 50HZ 1400r/min |
0.4KW 380V 50HZ 1400r/min |
0.4KW 380V 50HZ 1400r/min |
0.4KW 380V 50HZ 1400r/min |
Reducer |
1:5 |
1:5 |
1:5 |
1:5 |
Compressed Air Pressure |
0.8MPa |
0.8MPa |
0.8MPa |
0.8MPa |
Main Electrity |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
Solenoid Valve Power |
DC24V |
DC24V |
DC24V |
DC24V |
Control Loop |
DC24V |
DC24V |
DC24V |
DC24V |
2. Inflation Device - Technical requirement
1 Each station can be operated indepently.
2 Each station has independent air regulator and pressure gauge.
3 Air pressure can be relieved individually in case of malfunction.
4 Tyre lifting device lifts the tyre to rim close position, and the lifting height is controlled by sensors. Whenever tyre size is changed, the sensor position should be adjusted accordingly.
5 Button box in every rim can be operated with all actions.
6 Sound-light indicator alarms automatically when the cycle finished.
3. Inflation Device - Configuration requirement
1 PLC: Siemens

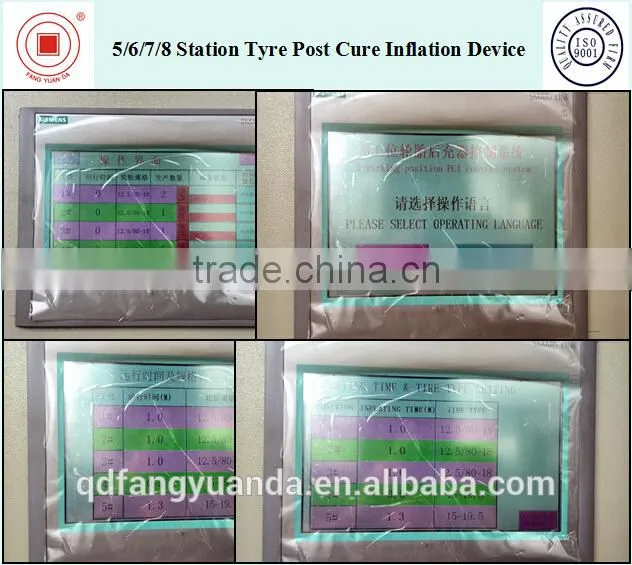

2 Touch panel: Siemens
3 Solenoid valve: SMC
4 Approximate Switch: Omron
5 Buttons: Schneider made in china
4. Inflation Device - locking and unlocking safe operation
1 The locking pneumatic cylinder is controlled by buttons. The signal is sent first to PLC then to solenoid valve. The solenoid valve will release compressed air to push cylinder and then rotate the spindle, and finally complete locking and unlocking actions.
2 Photoelectric sensors are installed at the locking & unlocking positions, and pressure sensor is installed on the chuck, which will send signal to PLC.
3 Air can be inflated into the tire only when the chuck is at the locking position. Auto or manual air inflation operations will be invalid when the chuck is at unlocking or middle positions due to no locking signal sent to PLC.
4 When there is pressure inside the tire, the pressure sensor will send signal to PLC, so that unlocking operations cannot be done. That is to say, the unlocking operation will be valid only when pressure inside the tire is zero .
FANGYUANDA is a manufacturing company specialized in producing tire curing press, tire vulcanizer, tire mold, building drum and tyre inflation device. We also provide the supporting service, including installation, maintenance, training, etc. We have the ability to develop powerful design and we can design according to customer’s request.
Our products of all-steel giant tire vulcanizing machine (105-212 inch tire vulcanizer) and all-steel giant segmented tire mold (27R49-59/80R63) have got Chinese Patent and have a high market share.
- After more than 20 years of continuous efforts and development, with our strengths in China’ s rubber machinery industry, our business of complete sets machines have covered rubber machinery and tire vulcanizer, tire mold and inflation device industry.
- According to your drawings, we can manufacture quality products.
- We have the capability of establish the whole plant, technology transfer, technical advisory services and transformation.
- In order to ensure and improve the quality of our export products, we take various effective methods to track and supervise each procedure from raw materials procurement, manufacturing, commissioning and inspection during each steps.
- We own GB/T19001-2008/ISO 9001: 2008 quality management system certification and get Chinese Patent of all-steel giant tire vulcanizer and segment mold by cooperating with Qingdao Science and Technology University and Nanjing Industry University.
