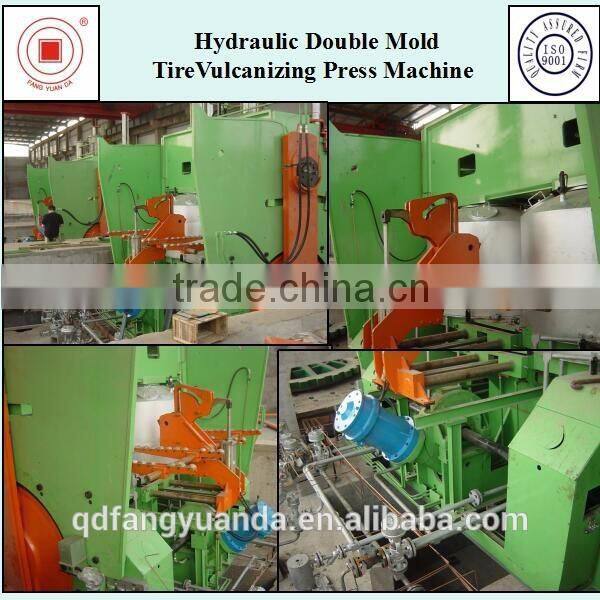

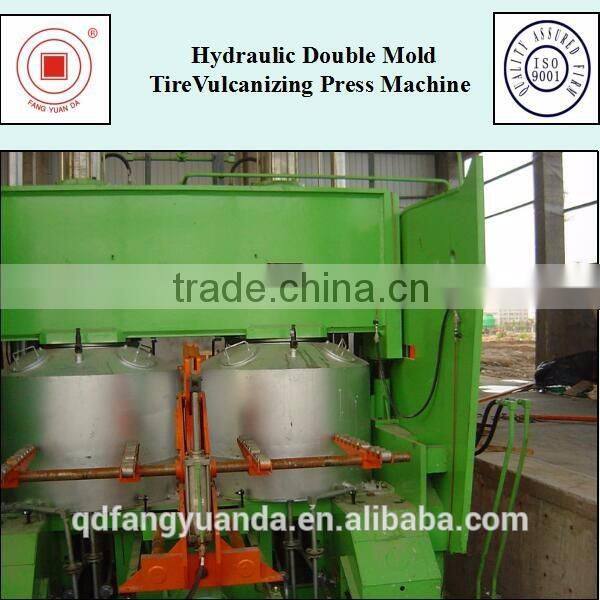

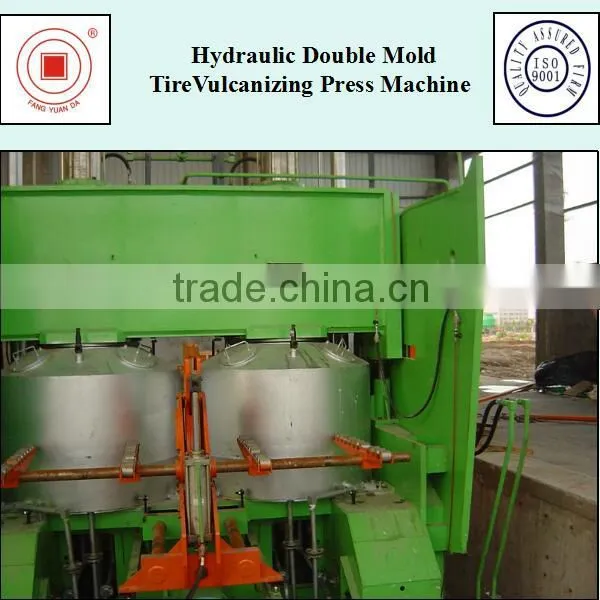

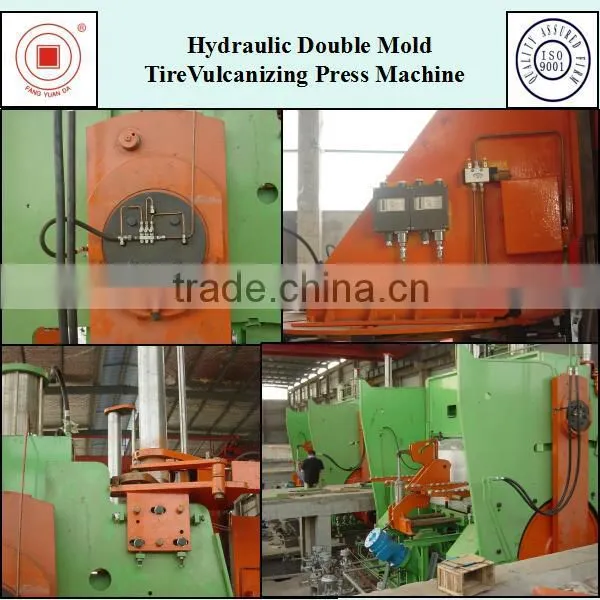

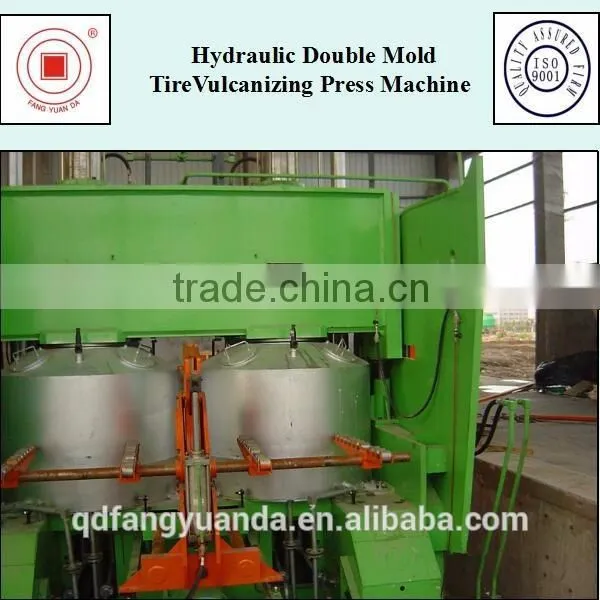

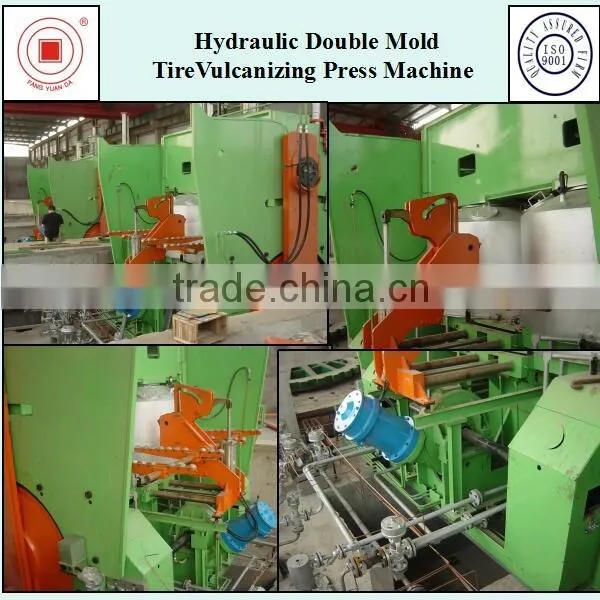

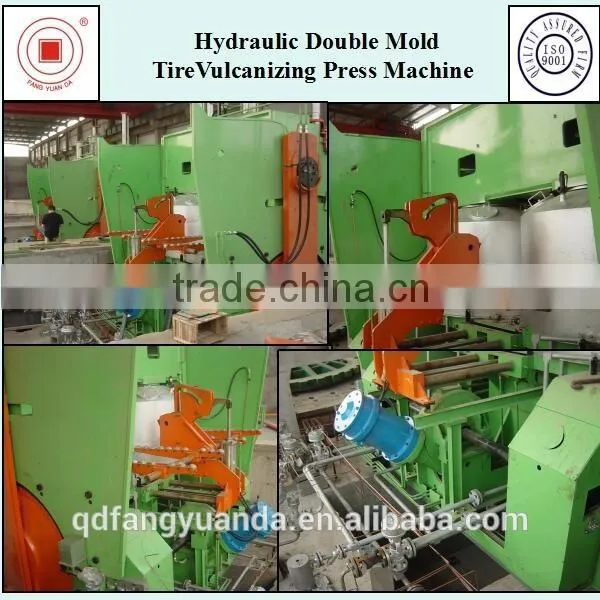

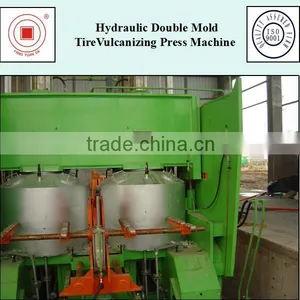

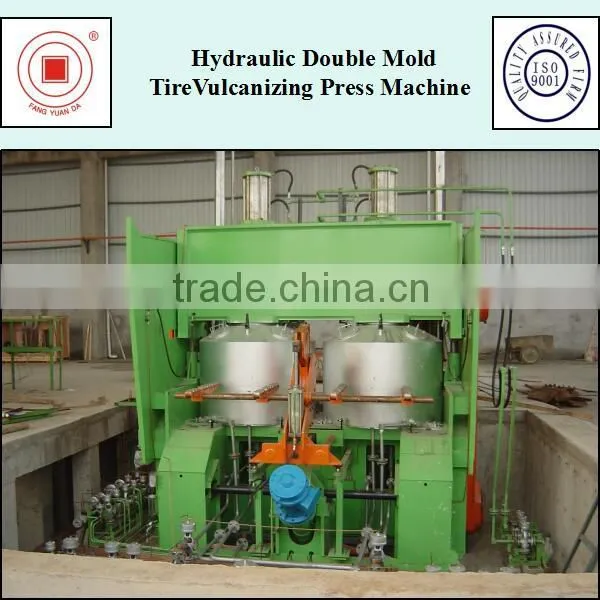

Hydraulic Double Mold Tire Vulcanizing Press Machine
We manufacture many and various tire vulcanizing press machine including tire vulcanizing machine, tire mould, tire building drum, etc. with more than 20 years' OEM and ODM expeience.
Hydraulic Tire Vulcanizing Press Machine - Characteristics
- This vulcanizing press machine is Hydraulic Horizontal-Moving tire curing press and has double moulds. Its beam movement type is vertical lift and translation.
- This vulcanizing press machine can be configured with electric mould adjusting device, segmented mould driving device, tyre post inflation device, etc. according to user's request.
- Heating type: Steamer Type.
- The vulcanization pipe system can be customized.
- There are single and double or three station tire holders for customers to choose.
- The control system adopts imported electrical components, high degree of automation control.
Hydraulic Tire Vulcanizing Press Machine - Applications
This vulcanizing press machine is applicable to vulcanize green tire, such as heavy & light truck radial tire and bias tire. And it is applicable to the Nitrogen vulcanization or steam vulcanization process.
Hydraulic Tire Vulcanizing Press Machine - Mechanism Features
- The type of center mechanism is BOM.
- This vulcanizing press machine is equiped with double-column manipulator, trolley type double cylinder unloading mechanism and front lever type demoulding mechanism.
- This vulcanizing press machine adopts PLC programmable controller as the control core. Based on industrial computer man-machine interface, users can realize the vulcanization process parameter setting as well as real-time data acquisition, preservation, alarm and visual query of historical parameters when vulcanizing.
- This vulcanizing press machine has Ethernet interface and supports cluster vulcanizing machine network.
Hydraulic Tire Vulcanizing Press Machine - Specifications of Some Size
Item |
Unit |
Specification |
|||
1400 |
1600 |
1665 |
|||
Vulcanizing Chamber Number |
|
2 |
2 |
2 |
|
Stay-warm Case of Vulcanizing Chamber Inner Diameter |
mm |
Φ1400 |
Φ1620 |
Φ1665 |
|
Maximum Mold Clamping Force |
kN |
2890×2 |
4300×2 |
4340×2 |
|
Vulcanizing Model Height |
mm |
241-445 |
254-935 |
350-635 |
|
Structural Style of Center Mechanism |
|
BOM |
BOM |
BOM |
|
Diameter of Applicable Bead Ring |
In |
16-20 |
16-24.5 |
18-24 |
|
Maximum External Diameter of Vulcanized Tyre |
Segment Mould |
mm |
Φ1000 |
Φ1135 |
Φ1200 |
Two Piece Mould |
mm |
Φ1070 |
Φ1235 |
Φ1300 |
|
Maximum Thickness of Vulcanized Tyre |
mm |
360 |
490 |
490 |
|
Maximum Height of Tyre |
mm |
750 |
750 |
890 |
|
Theoretical Time of Opening /Closing Mould |
S |
60 |
58 |
78 |
|
Maximum Weight that Manipulator can grasp |
kg |
100 |
100 |
100 |
|
Maximum Weight of Mould |
kg |
5500 |
6500 |
6500 |
|
Maximum External Pressure of Vulcanization Medium |
Mpa |
|
1.4 |
|
|
Maximum Internal Pressure of Vulcanization Medium |
Mpa |
|
2.8 |
|
|
Dynamic Water Pressure |
Mpa |
|
2.1-2.5 |
|
|
Dynamic Air Pressure |
Mpa |
|
0.7 |
|
|
Control Air Pressure |
Mpa |
|
0.35 |
|
|
FANGYUANDA is a manufacturing company specialized in producing tire making machine, tire vulcanizing press machine, tire mold and building drum. We also provide the supporting service, including installation, maintenance, training, etc. We have the ability to develop powerful design and we can design according to customer’s request.
Our products of all-steel giant tire vulcanizing press machine (105-212 inch tire vulcanizing press machine) and all-steel giant segmented tire mold (27R49-59/80R63) have got Chinese Patent and have a high market share.
- After more than 20 years of continuous efforts and development, with our strengths in China’ s rubber machinery industry, our business of complete sets machines have covered tire making machine and tire vulcanizing press machine and tire mold industry.
- According to your drawings, we can manufacture quality equipment.
- We have the capability of establish the whole plant, technology transfer, technical advisory services and transformation.
- In order to ensure and improve the quality of our export products, we take various effective methods to track and supervise each procedure from raw materials procurement, manufacturing, commissioning and inspection during each steps.
- We own GB/T19001-2008/ISO 9001: 2008 quality management system certification and get Chinese Patent of all-steel giant tire vulcanizing press machine and segment mold by cooperating with Qingdao Science and Technology University and Nanjing Industry University.
1. Are you a trade company or manufacturer?
We are a manufacturer located in Qingdao City, Shandong Province, China. We have accumulated more than 20 years' manufacturing experience in tire mold, tire vulcanizing press machine, tire making machine, building drum, etc.
2. Do you have own export license?
Yes, we have our own export license and we started exporting in 2008. We have exported our equipments to Belgium, America, Brazil, Korea, India, Sri Lanka, Iran, Ethiopia, and many other countries.
3. Does your company accept OEM/ODM?
Yes, we have more than 20 years' OEM and ODM experience. You can send us your drawings, we can design and produce as your request.
We welcome your visiting to our factory for further discussion.
