Factory cost flatbed color digital automatic A2 sheet metal printer

Factory cost flatbed color digital automatic A2 sheet metal printer

Byc printer(A4-A0)  is designed on the basis of 3D digital printing system, can directly print on any flat object like textile,glass,wood,metal,stone,ceramic tile and so on.

It supports A3+ non-margin output,and some of our upgraded products reach high resolution of 5760dpi. Whatever the pattern is,simple color block,full color or intermediate color, our printer can print at once.

it replaces silk-screen,pad printing and transfer printing machine without plate making and repeated overdye.

It realizes printing on rough surface smoothly(the fall≤5mm), completely solving the problem that traditional printer can't print intermediate color and only print on flat surface.

The printing image is pretty,colorful and vivid.

The image waterproof,sun-protective,enduring and good fastness.

Under the help of coating and dedicated ink, it can print directly on various flat objects.

We now have these 7 models for you to chose:

1)Model number: BYC168-1

Max. print size: 210*290mm(print 1 t-shirt at a time)

Max. print resolution: 5760*1440dpi

Color: 6

Print speed: under photo mode, print A4 picture, takes about 111 seconds

Print head:R230

2)Model number: BYC168-2.3

Max. print size: 329*600mm(print 1 t-shirt at a time)

Max. print resolution: 5760*1440dpi

Color: 6

Print speed: under photo mode, print A4 picture, takes about 111 seconds

Print head: R1390

3)Model number: BYC168-3

Max. print size: 329*600mm

Max. print resolution: 5760*1440dpi

Color: 8

Print speed: under photo mode, print A4 picture, takes about 62 seconds

Print head:R1900

4)Model number: BYC168-4

Max. print size: 610*1800mm

Max. print resolution: 2880*1440dpi

Color: 8

Print speed: under photo mode, print A4 picture, takes about 100 seconds

Print head: 7880C

5)Model number: BYC168-5A

Max. print size: 420*1000mm

Max. print resolution: 2880*1440dpi

Color: 8

Print speed: under photo mode, print A4 picture, takes about 90 seconds

Print head:4880C

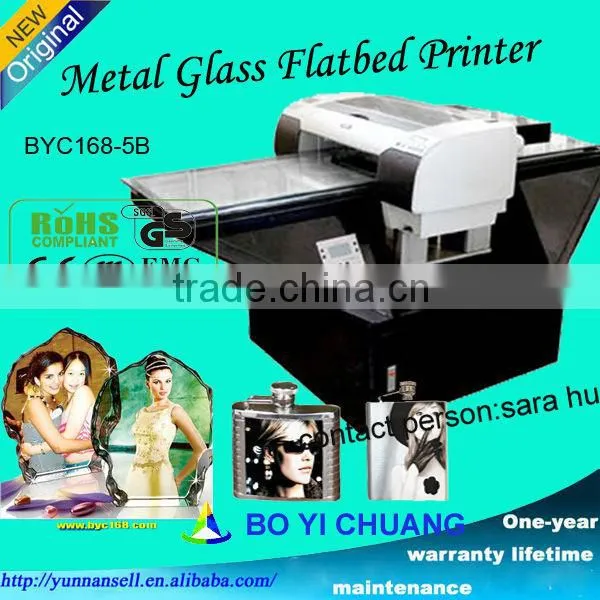

6)Model number: BYC168-5B

Max. print size: 420*1400mm

Max. print resolution: 2880*1440dpi

Color: 8

Print speed: under photo mode, print A4 picture, takes about 90 seconds

Print head: 4880C

7)Model number: BYC168-6

Max. print size: 1180*2500mm

Max. print resolution: 2880*1440dpi

Color: 8

Print speed: under photo mode, print A4 picture, takes about 100 seconds

Print head: 9880C

To learn more about our printer, please send us an enquiry!

For us to recommend you the suitable model, please include these information in your enquiry:

1) the print size you need

2) the daily printing amount

We will see whch model is the best for you, and send you the price list!

Photos of machines

Application field

1. Sign making shop
2. Photo studio or film development shop
3. Screen printing
4. Garment,Textile and fabric, such as the T-shirt, flag, handkerchief, neckerchief...
5. Leather, shoes, clothes, crystal and other crafts & gifts industries
6. Leather, shoes industries
7. All kind of factories of art items with image

It is a compliment to screen printing production and heat-transfer industries as it can do some jobs which are very expensive or not possible with the traditional printing.

How does it print  lighters?

1) Spray coating before printing, make sure the brightness of the printed lighters

2) lay the blank lighters in the tray, put the tray on the board of the printer

3) choose and adjust the picture in the graphic software(like photoshop,coreldraw and so on), then do the printing

4) take the finished lighters from the tray

For more details, pls contact me directly!

Two main kinds of inks: (both have 6 or 8 colors for choose)

1)Textile Inks to print on T-shirts and other textile.

    (No need Coating but need Color fixer after printing)

This is the printing procedure(white T-shirt)

1. edit the picture on computer
2. position the T-shirt on platform
3. choose and edit photo on computer
4. start printing
5. heating the T-shirt for fast drying

For dark T-shirts / textile,you should also go with White ink.

This is the printing procedure(Black T-shirt)

1. edit the picture on computer
2. position the object on platform
3. choose and edit photo on computer
4. printing white ink first (use RIP software)
5. printing color ink
6. heating the T-shirt for fast drying

2)Multi-functional inks to print on metel,plastics and all the other materials except textile.

   (Need coating before printing)

This is the printing procedure:

1. Spray the coatings on the surface of object
2. drying for 3-4 minutes in normal condition
3. position the object on platform
4. choose and edit photo on computer
5. printing

Stand accessories

Samples

Differents trays

Machine Shop

Reliable Certifications

Old cutomers

Factory cost flatbed color digital automatic A2 sheet metal printer

Attentions

No 1. When do the cleaning by the printer's automatic cleaning tool, the continuous cleaning can not be more than 3 times

No 2. If the cleaning unit(nozzle moistening device) can not be sealed with the nozzle bottom, will affect the intact ink-jet of nozzel directly. Need to change the parts(It's consumable)

No 3. About the ink continue supply system, because the ink have a little corrosion, so shall change the accessories regularly in case of it may bad effect to the ink circulation(It is consumable)

For more details, please feel free to send me email or contact directly by ali TM!

Warranty  Terms

One year warranty, lifelong maintence!

Seller will replace the spare parts of printer for buyer free within one year, except print head, cleaning unit, CISS and damaged by any improper operations.

After sales Service

We can offer online English service by our skillful and experienced technicians,online guide with camera& microphone to help you and your clients,

We've detailedly record the videos of how to maintain the machine to the User manual DVD.

We'll keep on providing the best service, because"Your satisfaction is our pursuit!"
