Plastic box washing machine with steam Sterilization system

Specifications

Capacity: 200-9000 pcs/H
External dimension: 6800*1200*1100mm or as need
with steam Sterilization system

High Pressure Crate Washer,Tray Washer,Bin Washer



Capacity: 300-900 pcs/H
External dimension: 6800*1200*1100mm

Specification of plastic crate washer

Main parameter:

Capacity: 600 pcs/H

External dimension: 6800*1200*1100mm

Electrical Power consumption: 4 KW

Steam consumption: 100KG/H

Water consumption: 300KG/H

Washing agent: alkali solution and hot water

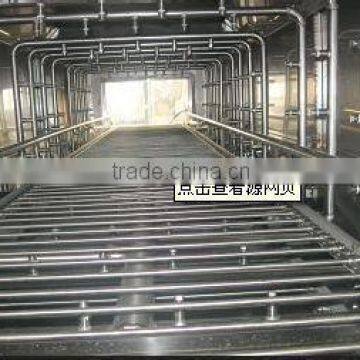

Structure and description

1. Material: SUS304 stainless steel

2. Main parts: conveying system, water tank with filtration, water recirculation pumps, steam heating, spray nozzles, electrical

control system.

3. Working principal: steam is injected to water directly for heating; the spraying nozzles are used in all directions, so crates can be

cleaned from different directions; there are three washing sections, 1st section by spraying alkali solution, cleaning temperature 80

degrees; 2nd section by spraying hot water, temperature 80 degrees; 3rd by normal water cleaning and meanwhile cool the crates

before output;



4. This machine is driven by chain so the machine works continuously



5. Cleaning speed: adjustable to exact requirement.



Use: mainly used to wash the plastic crates, for example the storage crates of milk bottle, juice bottle and beer bottles.
