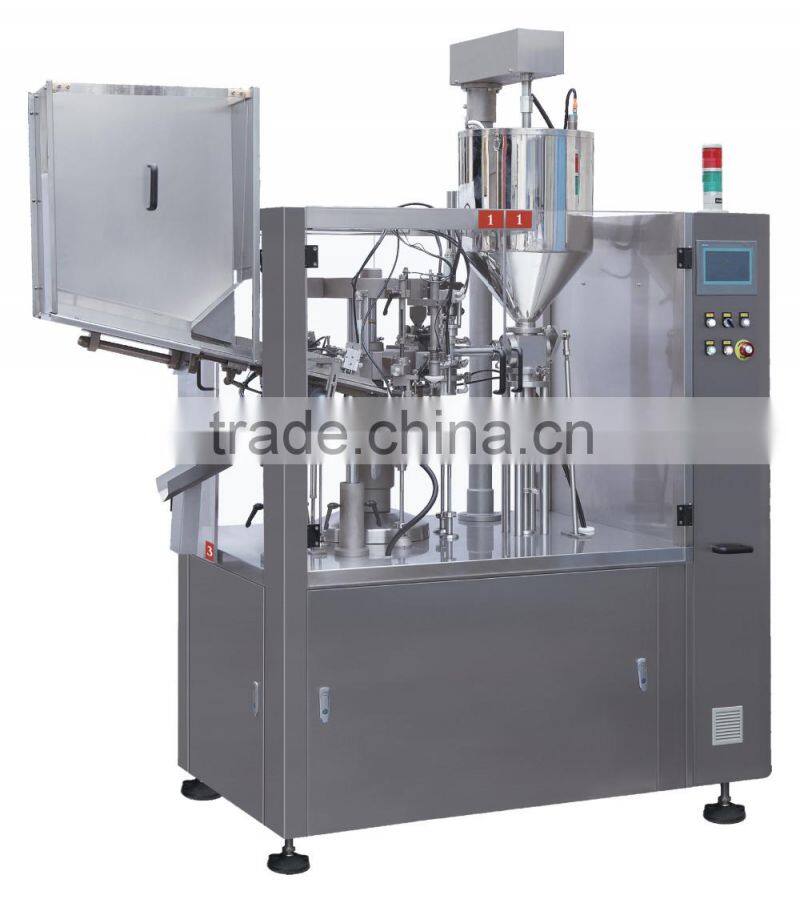

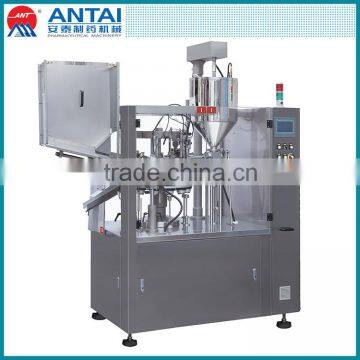

1.The Product has 12 locations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of plumbum tube, ALU tube, plastic tube and laminated tubes. It is a multi-purpose machine
2.Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3.With external reversal feeding system, makes tube charging more convenient and tidy.
4.The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
5.Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
6.Three-layer jacket instant heater with inside air heating, it won’t damage the pattern outer wall of tube and achieves firm and beautiful sealing effect.
NF-80 | |||||
| Configuration Standard | Technical Parameters | Remarks | ||
n Infrastructure | |||||
| Main Machine Landing Area | (about) 3m2
|
| ||
| Working Area
| (about)2.5 m2 |
| ||
| Water Chiller Landing Area | (about)1 m2 |
| ||
| Working Area | (about)4 m2 |
| ||
| Whole Machine (L×W×H) | 2.5X1.2X2.4M |
| ||
| Integrated Structure | Union mode |
| ||
| Weight | (about)1200Kg |
| ||
n Machine case body | |||||
| Case Body Material | 304 |
| ||
| Opening Mode of Safety Guard | Handle Door |
| ||
| Safety Guard Material | Organic Glass |
| ||
| Frame Below Platform | Stainless Steel |
| ||
| Case Body Shape | Square-shape |
| ||
n Power, Main Motor etc. | |||||
| Power Supply | 50Hz/380V 3P |
| ||
| Main Motor | 2.2KW |
| ||
| Hot Air Generator | 3KW |
| ||
| Water Chiller | 1.5KW | Standard | ||
| Jacket barrel heating power | 2 KW | option | ||
| Jacket barrel blending power | 0.18 KW | option | ||
n Production Capacity | |||||
| Operation Speed | 75/min/max |
| ||
| Filling Range | Plastic tube3-250ml,Alu tube 5-180ml |
| ||
| Suitable Tube Length | 210mm |
| ||
| Suitable Tube Diameter | 13-60mm(above 50 should make special 50) | Alu tube12.5-30 mm | ||
n Pressing Device | |||||
| Pressing Guiding Main Component | SMC |
| ||
n Pneumatic Control System | |||||
| Low Voltage Protection | SMC |
| ||
| Pneumatic Component | AIRTAC ( part SMC ) |
|
| ||
| Working Pressure | 0.5-0.6MPa |
|
| ||
| Compressed Air Consumption | 1.5m³/min |
|
| ||
n Electrical Control System |
| |||||
| Control Mode | PLC+Touch Screen |
|
| ||
| PLC | SIEMENS |
|
| ||
| Frequency inverter | SIEMENS |
|
| ||
| Touch Screen | SIEMENS |
|
| ||
| Coder | OMRON |
|
| ||
| Temperature Controller | OMRON |
|
| ||
| Filling detect Photo electric cell | OMRON or Germany |
|
| ||
| Total Power Switch etc. | France Schneider |
|
| ||
| Color Code Sensor | JAPAN Sunx or USA Banner |
|
| ||
| Register servo motor | Japan Yaskawa |
|
| ||
| Hot Air Generator | LEISTER (Switzerland) |
|
| ||
n Suitable Packing Material & Other Devices | ||||||
Suitable Packing Material | Aluminum-plastic composite tube and Plastic composite tube |
| ||||
Obliquely Hanging Lining-up Tube Storehouse | Speed Adjustable |
| ||||
Material contacting with filling material | 316L Stainless Steel |
| ||||
Jacket layer hopper device | Temp. Setting according to material and filling demand | option | ||||
Jacket layer stirring device | In case of no material mixing, it remains fixed in hopper | option | ||||
Auto stamping device | Single side or double sides printing at the end of seal tube. |
| ||||
