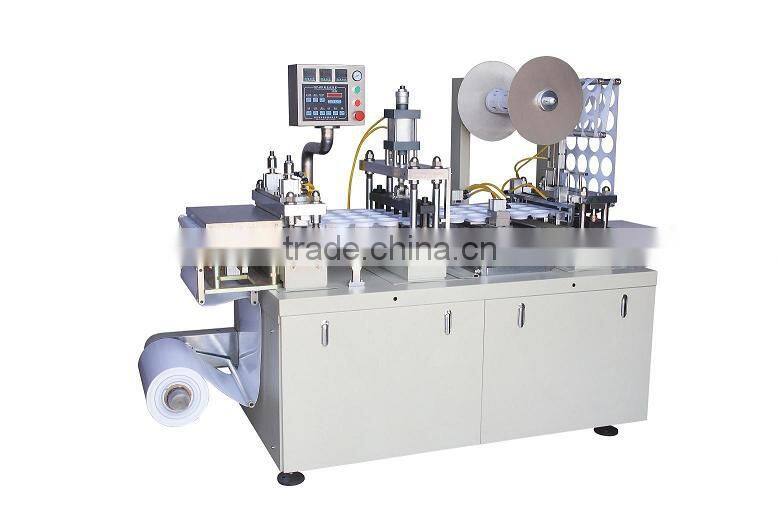

Help CenterDP-420 High Speed Auto Automatic Forming Machine
Related Products
-
DP-420 China Manufacturer Custom Vacuum Forming MachineNegotiableMOQ: 1 Unit -
DP-420 High Speed Forming MachineNegotiableMOQ: 1 Unit
-
DP-420 Professional Factory Made Auto Thermoforming MachineNegotiableMOQ: 1 Unit
-
DP-420 Professional Manufacture Multifunction Thermoforming MachineNegotiableMOQ: 1 Unit
-
DP-420 Automatic Plastic Thermoforming MachineNegotiableMOQ: 1 Unit
The achievement of GMP/QS double standard purification clean production, improve product hygiene and safety, meanwhile, resolve cross contamination;
Roll Film Loading, Forming, Hole Punching, Punching, Output, Roll Film Reclaiming Six-Station Synchronous Production, Manipulator Feeder, Compact Structure & Stable Performance, Easy Operations;
Operation Area and Transmission Parts are complete isolation to avoid pollution and convenient to clean;
Stroke Adjustable, mould replacement is simple, easy to change mould size, suitable for different specification;
Can adopt PLC Human Interface, Stepless Frequency Speed Adjustment, PC Circuit Control Board;
Mould can be designed according to customer’s requirement.
Forming and punching for plastic material like PS/PVC/PET etc.
Cutting Speed |
8-32 punch/min |
Max forming area |
410mmx×150mm |
Max forming depth |
30mm(bigger depth 52mm) |
Power |
4.6kw |
Water pressure |
0.2Mpa |
Water consumption |
0.2m³/h |
Pneumatic pum flow volume |
≥0.3m³/min (tap water or recycling water) |
Air pressure |
0.5-0.7Mpa |
Machine size(L×W×H) |
2150×950×1750mm |
Applicable material |
thick:0.15-0.55mm width:<430mm |
Machine weight |
800kg |
