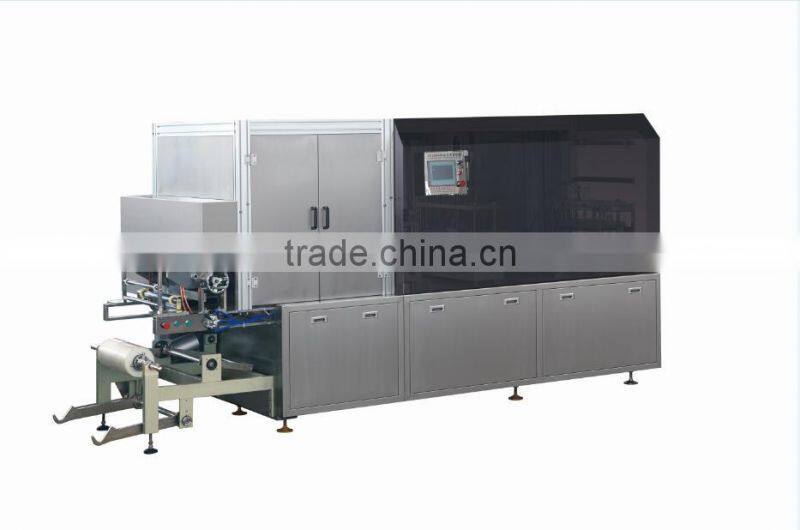

Help CenterDB-450 Professional Cup Vacuum Thermoforming Machine
Related Products
-
DB-450 New Technology Designed Price Blister Thermoforming MachinesNegotiableMOQ: 1 Unit -
DB-450 High Speed Auto Blister Thermoforming MachinesNegotiableMOQ: 1 Unit
-
DB-450 New Technology Designed Cup Thermoforming Machine SmallNegotiableMOQ: 1 Unit
-
ZPQ-250 First Rate Factory Price Full-Automatic Plastic Thermoforming MachineNegotiableMOQ: 1 Unit
-
ZPQ-250 Top Quality Thermoforming Machine UsedNegotiableMOQ: 1 Unit
DB-450 Plastic Lid thermoforming Machine are developed by our research and development personnel according to the demand of packing market. In combination with the advantages of aluminum-plastic blister packing machine and plastic sucking forming machine, this machine is a new type product developed in light of pharmaceutical standard GMP and food standard QS. This machine adopts a fully automatic flow covering blow molding or plastic suction molding, punching and diet cutting as the special properties of products required by the users. It is with advanced technology, safe and simple operation, which will avoid the consumption of labor on the manual punching and contamination from the touch with the employee. Therefore, the quality requirement is secured during the production. Aligned heating is employed by the equipment, and it enjoys low power consumption, small covering of land. It is applicable to the plastic ware such as PP, PVC, PET, PS medicine trays, and cup lids, thermoforming boxes.
1. Speed reducer, main-rotating connection, main shaft are on line (to decrease driving error) for mechanical transmission.
2. Sensor controls are adopted in pneumatic system .PLC control makes the whole machine run smoothly, keeps synchronous stability during the products are to be packed in multi-labor, long- distance .
3. Main motor non-stop speed regulating, the travel adjustable at will, simple and convenient to change the mold, manipulator traction, stable running.
4. Positive pressure formation in the equipment. (Puffing forming)
Model |
DB-450PP-1(Single heater) |
DB-450PP-2(Up & down heater) |
Punch Frequency |
15-35punch/min |
10-35punch/min |
Material |
PP, PS, PET, PVC, EPS, etc. |
|
Max. Forming Length |
260mm |
260mm |
Max. Forming Width |
470mm |
470mm |
Max. Forming depth |
50mm |
50mm |
Upper and Lower Forming Power |
16KW |
24KW |
Motor Power |
6KW |
6KW |
Total Power |
3-phase 4-line 380V 50Hz (220V 60Hz) 22kw |
|
Water Consumption |
0.3m³/h (Tap water or recycle water) |
0.3m³/h (Tap water or recycle water) |
Air Pressure |
0.5-0.8(mpa) |
0.5-0.8(mpa) |
Exhaust Volume |
≥0.6 m³/min |
≥0.6 m³/min |
Pressure of water supply |
0.2MPa |
0.2MPa |
Machine overall size(L×W×H) |
5000×1600×2000mm |
5000×1600×2000mm |
Packing Size(L×W×H) |
5200×1800×2300mm |
5200×1800×2300mm |
The maximum width of material |
510mm |
510mm |
Weight |
3500KG |
3800KG |
