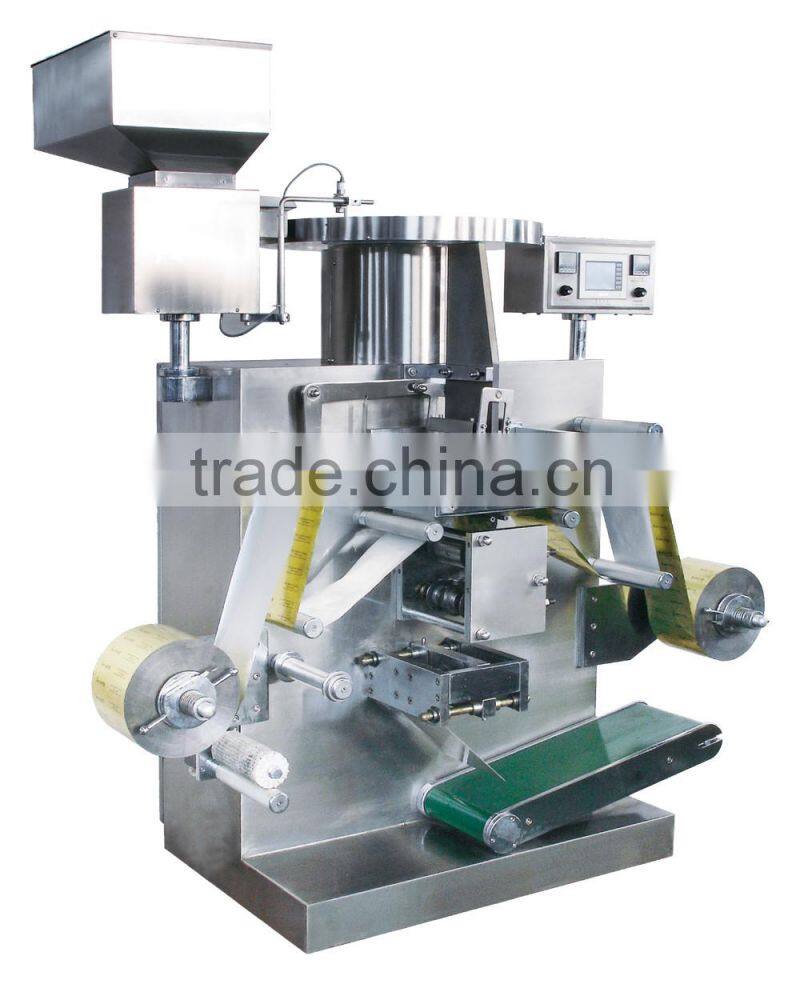

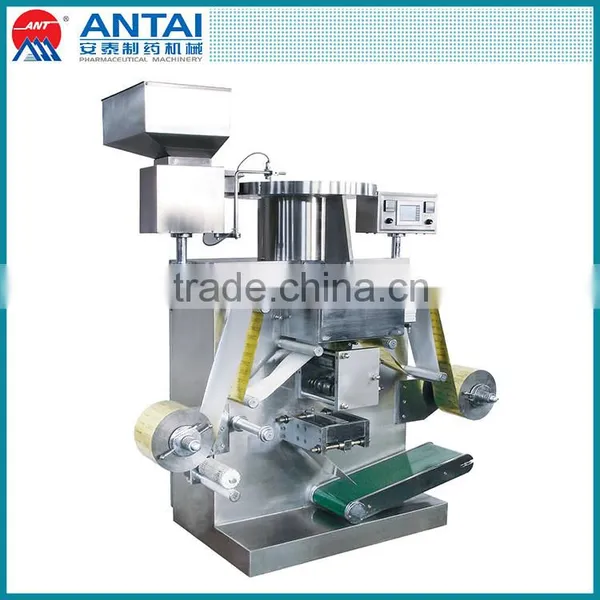

First Rate Factory Price Automatic Strip Packing Machine
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Medical
Packaging Material:
Wood, Other, Wood, wooden case
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Technology Designed Tape Packing Strip MachineNegotiableMOQ: 1 Unit -
2016 Hot Sell Wax Strip Packing MachineNegotiableMOQ: 1 Unit
-
High Efficiency Automatic Alu/Alu Strip Packing Machine For Tablet And CapsulesNegotiableMOQ: 1 Unit
-
Suppliers Alu/Alu Strip Packing MachineNegotiableMOQ: 1 Unit
-
Professional Automatic Alu/Alu Strip Packing MachineNegotiableMOQ: 1 Unit
Condition
New
Application
Medical
Packaging Material
Wood, Other, Wood, wooden case
Automatic Grade
Automatic
Driven Type
Mechanical
Power
0.55KW
Place of Origin
Zhejiang, China
Brand Name
ANTAI
Model Number
DLL-160C
Weight
1450*600*1670mm
Dimension(L*W*H)
600KG
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
This model strip packing machine has PLC Human interface, frequency converter, higher automation, easy operation, beautiful style, full function, well performance and durability. It conforms to "GMP" standards.

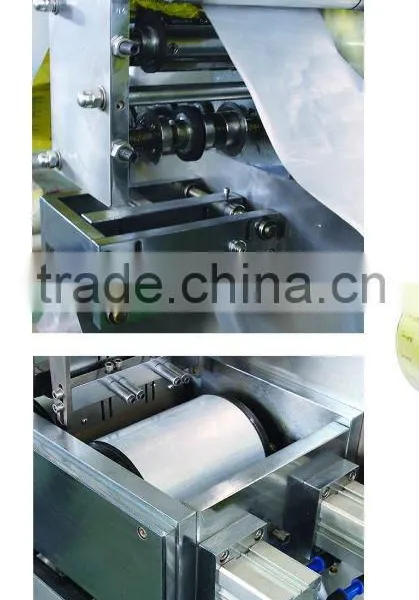

1. Vibration feeder and crisp remover can effectively remove the powder and crisps inside medicine.
2. Auto counting, horizontal perforation, slitting, waster-side cutting, printing batch number and auto punch etc functions can be achieved automatically in one process.
3. The diameter of heat pressing cam can be changed from 110 to 140 mm.
4. The rotation speed of the material controlling cam is equal to heat pressing cam, and the cams isodisperse is equal to medicament nest of heat pressing cam. Therefore it can have the distance from the plate edge the medicament nest and the one between the central medicament nest be equal.
5. The punch adpots electronic checking signal and PLC programs. It can change the number of granules at any time in the horizontal direction of the plate, making the user free to change the plates without replacing the moulds.
6. It can be equipped with an additional cursor tracking and registering plate system, inking wheel printer to have the products printed beautifully and uniformly, upgrading the products. The digit numbers are stamped more clearly.
Notes: we take part in the drafting out the JB/T10641-2006 for Soft Double Al Packing Machine that will be actualized on April 1st, 2007
2. Auto counting, horizontal perforation, slitting, waster-side cutting, printing batch number and auto punch etc functions can be achieved automatically in one process.
3. The diameter of heat pressing cam can be changed from 110 to 140 mm.
4. The rotation speed of the material controlling cam is equal to heat pressing cam, and the cams isodisperse is equal to medicament nest of heat pressing cam. Therefore it can have the distance from the plate edge the medicament nest and the one between the central medicament nest be equal.
5. The punch adpots electronic checking signal and PLC programs. It can change the number of granules at any time in the horizontal direction of the plate, making the user free to change the plates without replacing the moulds.
6. It can be equipped with an additional cursor tracking and registering plate system, inking wheel printer to have the products printed beautifully and uniformly, upgrading the products. The digit numbers are stamped more clearly.
Notes: we take part in the drafting out the JB/T10641-2006 for Soft Double Al Packing Machine that will be actualized on April 1st, 2007
| Speed of drum (rpm) | 7-15 stepless |
| Capacity (thousand pcs/h) | 20-60 thousand pcs/h |
| Max. Packing Width (mm) | 165mm (customized) |
| PVC for Medicine(mm) | 0.15-0.1*150 |
| AL/PL Complex Film(mm) | 0.08*150 |
| Hole die of Reel (mm) | 40-45 |
| Electrothermal Power | 1kw*2 |
| Main Motor (kw) | 0.55 |
| Air Pressure (Mpa) | 0.4 |
| Air supply | ≥0.1m3/min |
| Overall Dimensions(mm) | 1450*600*1670(L*W*H) |
| Weight (kg) | 600 |
