Tropical, Medicine Blister Packing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Medical
Packaging Type:
Capsule, Other, Capsule, BLISTER SHEET
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC Forming MachineNegotiableMOQ: 1 Unit -
Blister Packing Machine (AL/PL/AL)NegotiableMOQ: 1 Unit
-
Tropical Pharmaceutical MachineryNegotiableMOQ: 1 Unit
-
DZP-250ZY Automatic Wet Tissue Folding& Packing MachineNegotiableMOQ: 1 Set
-
DPB-250E Automatic Pharmaceutical Blister Packaging Machine/Pharmaceutical MachineryNegotiableMOQ: 1 Unit
Condition
New
Application
Chemical, Medical
Packaging Type
Capsule, Other, Capsule, BLISTER SHEET
Packaging Material
Wood
Automatic Grade
Automatic
Driven Type
Mechanical
Voltage
380/220V
Power
8.5KW
Place of Origin
Zhejiang, China
Brand Name
ANTAI
Model Number
DPB-250R
Weight
2000KG
Dimension(L*W*H)
5200*600*1700MM
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

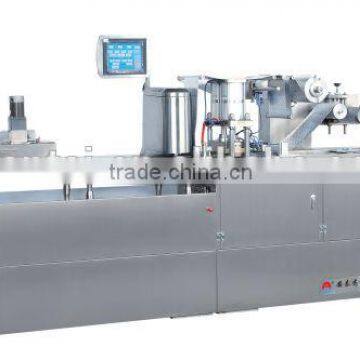

Blister Packing Machine
This tropical Blister Packing Machine can be used in three functions including AL/PL/AL, AL/AL, and AL/PL.
Blister Packing Machine FEATURES:
1. Adopt gear reducers from Rexnord Company of Germany, adjustable stroke, well performance, lower noise, long life and stable operation.

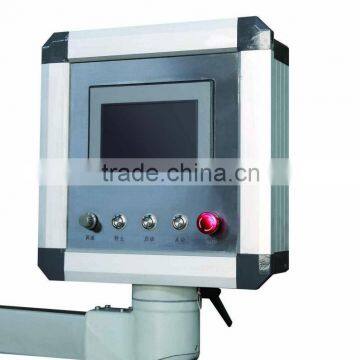

2. PLC Human Interface control system.
3. Automatic checking, rejection devices.
4. Linkage segment structure (one part is PVC forming, feeding and heat- sealing, the other is heating aluminum cool forming, heat-sealing and punching),,which is convenient to enter into workshop.
5. Advanced and accurate controlled system for light, electricity and gas. Make sure synchronization and register printing packaging for feeding and forming of PVC and tropical aluminum, filling, sealing, printing batch number, punching, automatic reject, collecting waste etc.
2. PLC Human Interface control system.
3. Automatic checking, rejection devices.
4. Linkage segment structure (one part is PVC forming, feeding and heat- sealing, the other is heating aluminum cool forming, heat-sealing and punching),,which is convenient to enter into workshop.
5. Advanced and accurate controlled system for light, electricity and gas. Make sure synchronization and register printing packaging for feeding and forming of PVC and tropical aluminum, filling, sealing, printing batch number, punching, automatic reject, collecting waste etc.
This machine can be equipped with image detecting controlling device; the automatic function will bee improved further, details as follow:
1. Product detecting and rejecting functions: check out the pills of which the rate of defect is above 15%, half-filled capsules and empty capsules; it can reject waste plate automatically.
2. On line statistical function: can calculate the number of the checked and rejected products.
3. Tracing and displaying functions for the waste plate: tracing and displaying the position and situation of the waste plate on the main screen of the monitor, until rejected.
4. Manual rejecting Function: the system has the function of point reject and continuous reject.
5. System protective function: the system will alarm if troubles happen.
1. Product detecting and rejecting functions: check out the pills of which the rate of defect is above 15%, half-filled capsules and empty capsules; it can reject waste plate automatically.
2. On line statistical function: can calculate the number of the checked and rejected products.
3. Tracing and displaying functions for the waste plate: tracing and displaying the position and situation of the waste plate on the main screen of the monitor, until rejected.
4. Manual rejecting Function: the system has the function of point reject and continuous reject.
5. System protective function: the system will alarm if troubles happen.
Blister Packing Machine Main Technical Parameters
| Cutting Frequency (Times/min) | AL/PL/AL 6-25 AL/PL 6-30 |
| Capacity (10 thousand pcs/h) | AL/PL/AL 4-10 AL/PL 10-30 |
| Stroke (mm) | 40-160 |
| Max. Forming Area & Depth of PVC(mm) | 230×150×26 |
| Max. Forming Area & Depth of tropical Al(mm) | 230×150×14 |
| PVC Forming Power (upper) (Kw) | 1.5 |
| PVC Forming Power (lower) (Kw) | 1.5 |
| Forming Al Heat-Sealing Power (Kw) | 1.5 |
| Main Motor Power (Kw) | 2.2 |
| Total Power (Kw) | 8.5 |
| Air Pressure (Mpa) | 0.4~0.6 |
| Compressor Capacity (m³/min) | ≥0.5 |
| Packing Material Specification(mm) | PVC for medicine 0.25-0.5×250 |
| PTP (PTP for Al-foil) | 0.02-0.05×250 Tropical AL 0.08-0.10×250 |
| Overall Dimensions(mm) | 4310×720×1550(L×W×H) |
| Total Weight (kg) | 2000 |
