DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato Paste Packing Machine

DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato Paste Packing Machine photo-1
DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato Paste Packing Machine photo-2
DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato Paste Packing Machine photo-3
DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato Paste Packing Machine photo-4
DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato Paste Packing Machine photo-5
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Other, Chocolate Jam, butter
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type Other, Chocolate Jam, butter
Packaging Material Wood, Paper
Automatic Grade Automatic
Driven Type Mechanical
Voltage 380V/220V
Power 6.2KW
Place of Origin Zhejiang, China
Brand Name ANTAI
Model Number DPB-250
Dimension(L*W*H) 2900*720*1550MM
Weight 1600KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

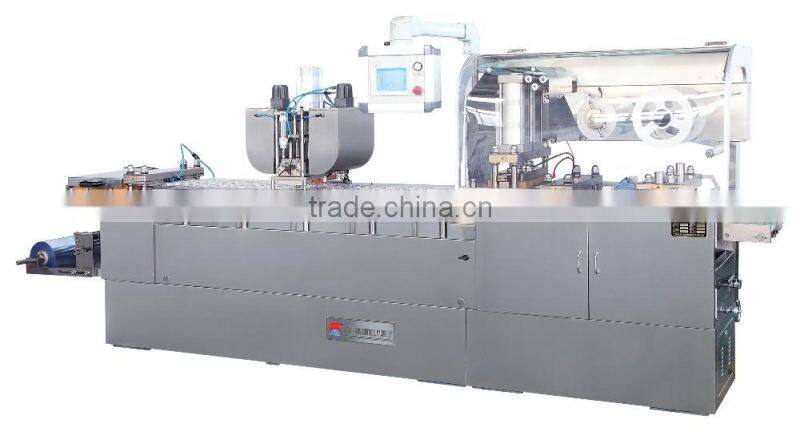

DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato paste packing machine

This Chocolate Packaging Machine is suitable for packaging chocolates, biscuits, perfume, essence, facemasks etc with AL/PL, Al/Al, PL/PL materials. It is equipped with a touch screen control system and frequency converter, with characterized by higher automation and easy operation. It is popular equipment for the foodstuff and cosmetics, particularly for those who are to make their own career.

DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato paste packing machine



DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato paste packing machine

1.  The distance can be adjusted freely in the same flat surface for forming, heat-sealing,  perforation, punching parts etc. It is suitable for various sizes of foodstuff packaging, and it has high precision and good Suitability.
2.  Adjustable stroke, automatic feeding, register heating, positive pressure forming, up and down net web, cylinder heat-sealing,  printing batch number with automatic perforation, mechanic dragging, easy operation, stable running.
3.  It is adopted with imported gear reducer with lower noise and long life.
4.  Correct location of die pressure plate, convenience of replacement.
5.  Combination mechanism, convenient to assemble and disassemble,easy maintenance.   (The body can be manufactured separately in order to easily transport the machine  into workshop)
6. Equipped with temperature reserve chocolate feeder, it can ensure the chocolate charged smoothly, freely and accurately.
Notes: 1. It can be added register sealing device with cursor trace.

Product Description

DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato paste packing machine

Cutting Frequency (Times/min) 6-30
Capacity (10 thousand pcs/h) 3.5-23
Max. Forming Area and Depth(mm) 240×150×26
Stroke (mm) 40-160 (customized)
Standard Plate(mm) 80×57 (customized)
Air Pressure (Mpa) 0.4-0.6
Air supply ≥0.3 m³/min
Total Power 380V/220V 50Hz 6.2kw
Main Motor Power (kw) 1.5
PVC Hard Pieces(mm) 0.150.5×250
PTP Aluminum Foil(mm) 0.02-0.035×250
Dialysis Paper(mm) 50-100g×250
Mould Cooling tap water or recycling water
Overall Dimensions(mm) 2900×720×1550(L×W×H)
Weight (kg) 1600

DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato paste packing machine

 DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato paste packing machine
Packaging & Shipping

DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato paste packing machine

DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato paste packing machine
Certifications



 DPB-250 Chocolate Flat Plate Blister Packing Machine /tomato paste packing machine
