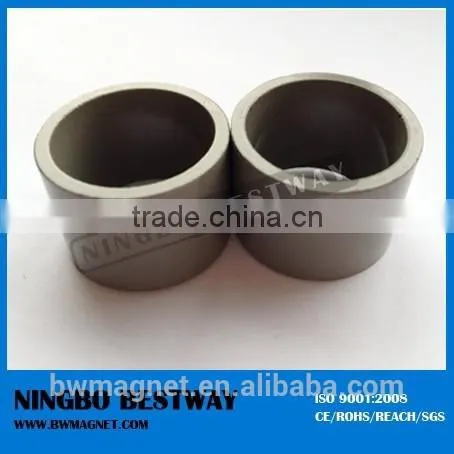

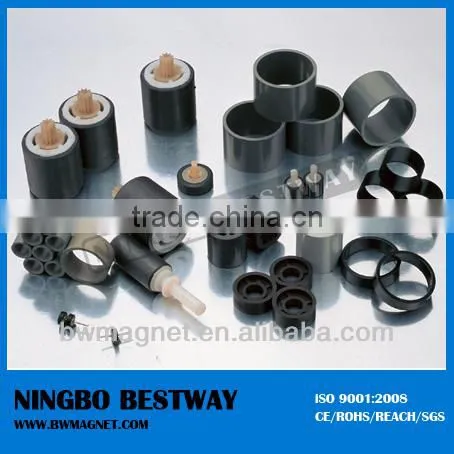

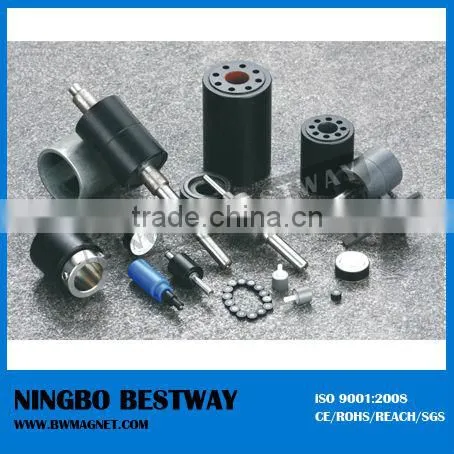

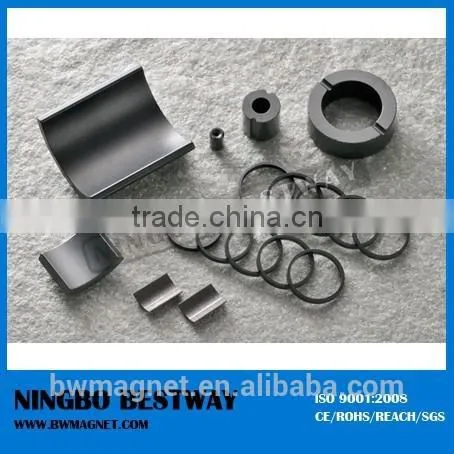

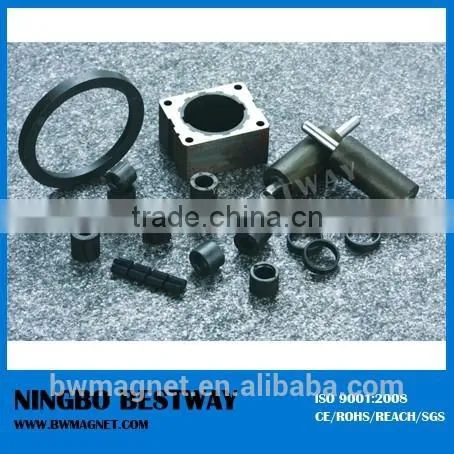

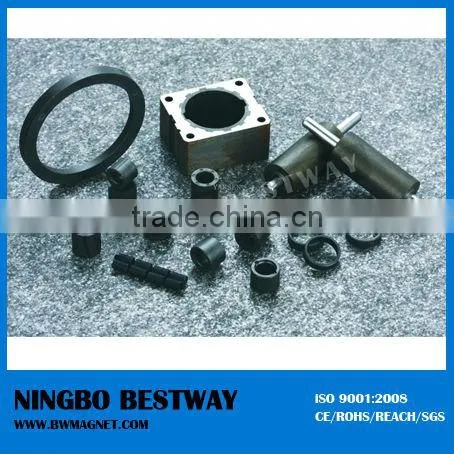

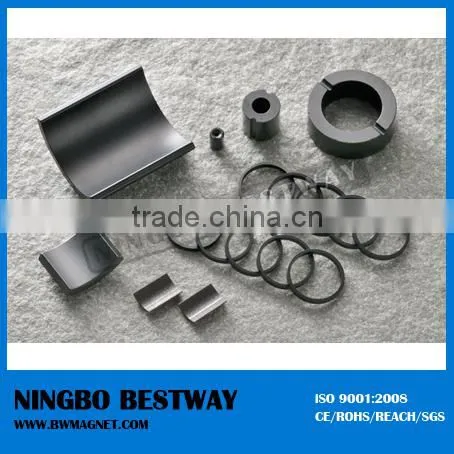

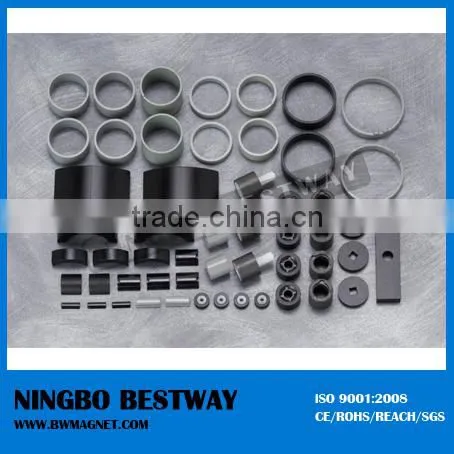

Bonded multipole motor magnet
Material:
Quick-quenched NdFeB magnetic powder with bonding agent.
Grade:
BN-6 to BN-12
Type:
Compression molding magnets & Injection molding magnets
Coating:
1. Black, grey Epoxy;
2. Prylene.
Magnetization:
Thickness Magnetization, Radiation Magnetization, Multi-pole Magnetization
Performance:
Br T: 0.55-0.80
(BH)max k J/M3 (MGOe): 44-92 (5.5-11.5)
Tw 0C: 110-150
Produts Tech:
Powder--Belending--Granulation--Compaction--Curing--Refining--Coating--Magnetization--Packing
Features:
1. High precision;
2. Excellent magnetic properties;
3. Stable working temperature;
4. Good corrosion-resistance and nice surface.
The complete combination of injecting process and high-property rare-earth powder makes it possible to form easily the anisotropic(especially radial anisotrotropic)super-thin ring or block magnets in complex shapes.The products can be formed in a unit together with other components.This process provides high precision and high acceptable rate of products.
Usages:
1. The compression molding magnets, as for simple mould and high magnetic properties, are widely used in stepping motor, CD-ROM spindle motor, general motor, vibrating motor, pick-up, HDD spindle motor, and FDD spindle motor.
2. The injection molding magnets, as for complex mould, magnetic properties around 6 to 7 MGOe, and highly consistency, are widely used in electric expansion valve, air-condition motor etc,.
