Chicken plunker
Chicken depilator
Brief introduction of poultry plucker machine

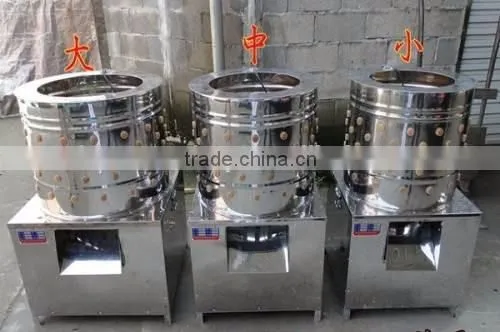

Models : We have four type chicken plucker :
1. Small chicken plucker
2,Middle capacity chicken/duck/goose plucker
3,Large capacity "A"shape vertical feather removal machine
4,Large capacity Horizontal poultry feather removal machine
Suitable for chicken, duck, goose, bird, quail, parrot, reptile and so on.
Below are details information
Large capacity "A"shape vertical feather removal machine
This machine is made by 304 stainless steel . And it can working continuously without ant pollution to the chickens. It can remove the feather of chicken, we also have duck plucker machine.
There are 48pcs hair removal plates, each plate has 12 plucker fingers.
If pluck chicken, finger length--85mm, if pluck duck, finger length--95mm.

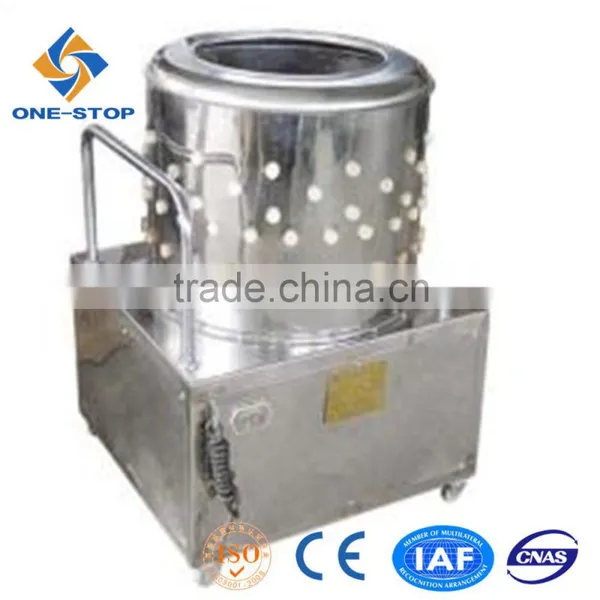

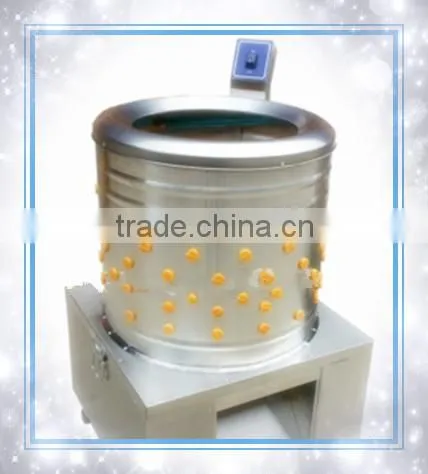

Small Chicken Plucker drum type
Definition
Poultry feather removal machine is used to remove the feather of poultry after butchered.
It is also suitable for the peeling of ginger,potato,and the skin removing of fish.
Chicken Plucker Using Method
1. Scald the poultry after slaughtered by hot water of 65-80 degree.
2. Then turn on the machine,put the scalded poultry into the machine(ginger,potato
and fish can put into directly).
3. After 10 seconds working,turn on the tap,and wash away the removed feather,
then take out the poultry.
4. The whole process of process chicken is about half minute.
Chicken Plucker Attention
1. Equip a leakage switch on the ground line.
2. Turn on the switch,and check if the machine running normally before using.
3. Wash the tube completely after using.
4. After long time using,please change the robber stick when they are wearing or broken. So as to ensure the working efficiency.
5. After a period of using,if the rolling disc become slower,it might be the belt screw track slip.
6. Then please adjust the nut on the machine base, but note it can't be too tight.
| Model | N-50 | N-55 | N-60 |
| Voltage | 220V | 220V | 220V |
| Power | 1100w | 1500w | 2200W |
| Depilation net rate | 96% | 96% | 96% |
| Weight | 60Kg | 65kg | 70Kg |
| Motor speed | 1400r/min | 1400r/min | 1450r/min |
| Work capacity | 1~2pcs/m | 3~5pcs/m | 7-8pcs/m |
| Barrel diameter | 500mm | 550mm | 600mm |
| Overall size | 680*630*900 | 700*650*900 | 780*730*900 |
---------------------------------------------------------------------------------------

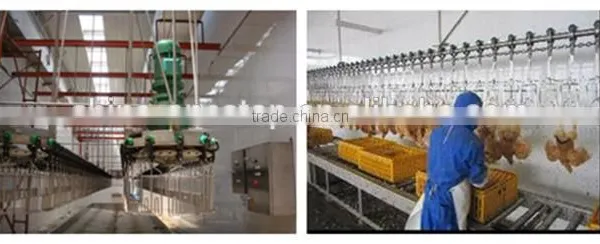

1000Chickens/h Slaughter and Parting Line
| 1000 Chickens per hour Slaughter&Cutting Line Equipment List | |||||
| No. | Items | Model | Unit | Quantity | Remarks |
| I. Slaughter/Scald/Defeather Section | |||||
| 1 | Hanging conveyor for slaughter | L=88m | set | 1 | Hook space: 6 inches; It consists of T rail, SUS T straight rail, bend rail and connections, SUS drive chain, nylon hanger and SUS plastic trolley, SUS hook, SUS drag chain and drive device and frame. Motor reducer, variable-frequency speed control system, tensioning gear, slewing gear and SUS connections are included. |
| 2 | Waterbath stunning machine (Larger size) | set | 1 | SUS frame, fiberglass groove | |
| 3 | Air drum type scalding machine (Larger size) | Full closed | set | 1 | Length:3.3m, scalding time:1minute; It includes SUS air drived stirring system, 1 air blower, SUS poultry baffle, SUS shell and steam enclosed cover, SUS rail and corner wheel, water level and temp auto control system; |
| 4 | Vertical defeathering machine | 6 rows with 8 plates each row | set | 1 | Adjustable SUS frame, two parallel cabinets; total 6 rows with 8 plates each row, each plate has 12 rubber whips; 6 belt drive devices, 6 high speed chinlon belts, feather baffle and SUS spray pipe are included; |
| 5 | Hook washing machine (larger size) | set | 1 | SUS frame, 2 nylon brushes and motor drive, 2 SUS brush cabinet and spray pipes | |
| 6 | Automatic poultry unhooking device | set | 1 | Made from SUS | |
| 7 | Carcass chute | set | 1 | Made from SUS | |
| 8 | Electric control cabinet | DK-1 | set | 1 | Used to control the drive equipments in this section |
| II. Evisceration Section | |||||
| 1 | Evisceration hanging conveyor | L=32m | set | 1 | Hook space: 8 inches; It consists of T rail, SUS T straight rail, bend rail and connections, SUS drive chain, nylon hanger and SUS plastic trolley, SUS hook, SUS drag chain and drive device and frame. Motor reducer, variable-frequency speed control system, tensioning gear, slewing gear and SUS connections are included. |
| 2 | Evisceration reception chute | pc | 4 | SUS chute and frame with adjustable legs | |
| 3 | Carcass washing device | pc | 1 | Frame, shell and pipes are made from SUS | |
| 4 | Electric control cabinet | DK-4 | set | 1 | Used to control the drive equipments in this section |
| III. Pre-cooling Section | |||||
| 1 | Spiral pre-cooling Machince(Larger size) | L=9m | set | 1 | Screw diameter:1.8m, including chute, SUS tank and frame, SUS screw propulsion device, auto poultry output system, air-blast system and air blower, motor reducer; Cooling media: cold water or brash ice(cold water chilling unit and slice ice machine) |
| 2 | Carcass reception chute | L=2m L=3m | set | 2 | SUS chute and frame |
| 3 | Electric control cabinet | DK-4 | set | 1 | Used to control the drive equipments in this section |
| Sub-total: | |||||
| IV. Cutting Section | |||||
| 1 | Hanging conveyor for cutting | L=45m | set | 1 | Hook space: 8 inches; It consists of T rail, SUS T straight rail, bend rail and connections, SUS drive chain, nylon hanger and SUS plastic trolley, SUS hook, SUS drag chain and drive device and frame. Motor reducer, variable-frequency speed control system, tensioning gear, slewing gear and SUS connections are included. |
| 2 | Worktable | 1800×900×800 | pc | 15 | SUS frame and adjustable legs, and SUS worktable |
| 3 | Electric control cabinet | DK-3 | set | 1 | Used to control the drive equipments in this section |
| IV. Installation materials cost (Mainly major steel beams, hanging,materials, etc.): Total 15t,buyer can source at your local, we give the drawing or buying from us. | |||||
| V. Installation fees: Including the worker's round tickets, salary $100/day/person, Accommodation. | |||||
| VI. Transportion Cost: To be discussed. | |||||
Roy Du Sales Representative
China One Stop Engineering Co,.Ltd
ADD:No.10 Hong Kong road Middle ,Qingdao, China.
Email:onestop16#
Tel/Fax:+86 532 85026977 18678437719
Online talk: QQ:97986716 Skype: du.roy1,
Web:
