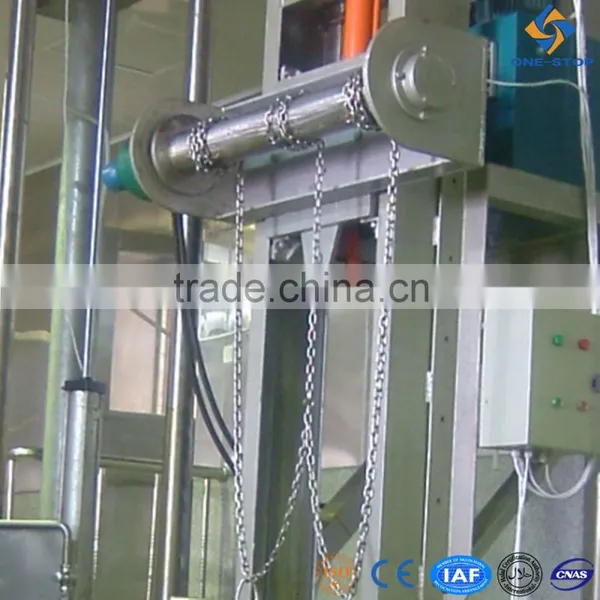

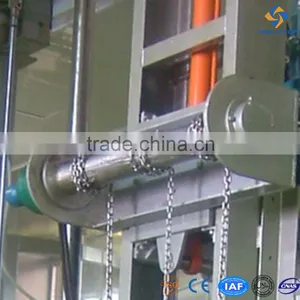

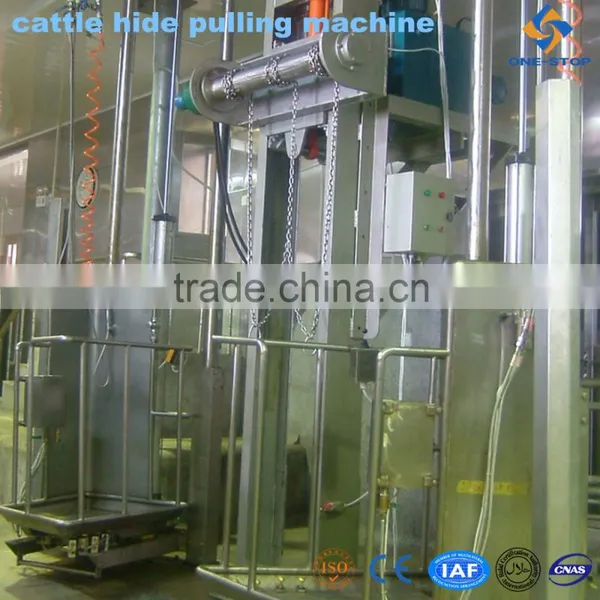

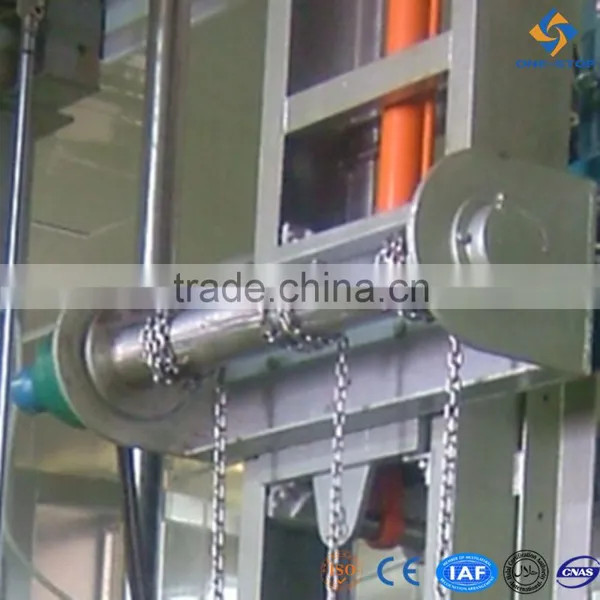

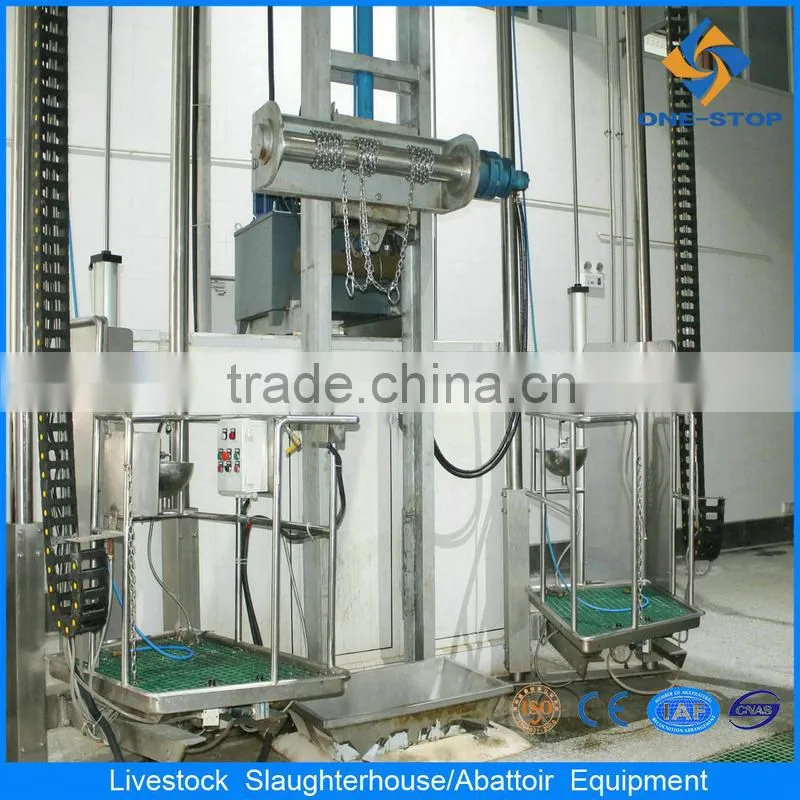

Cattle slaughtering equipment peeling step machine

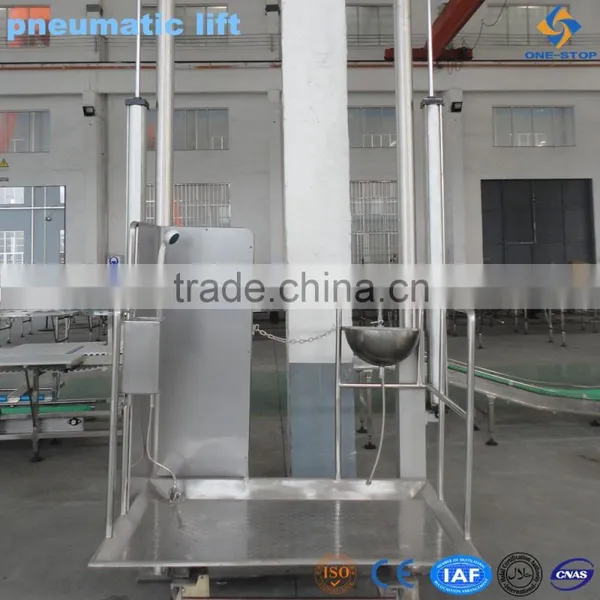

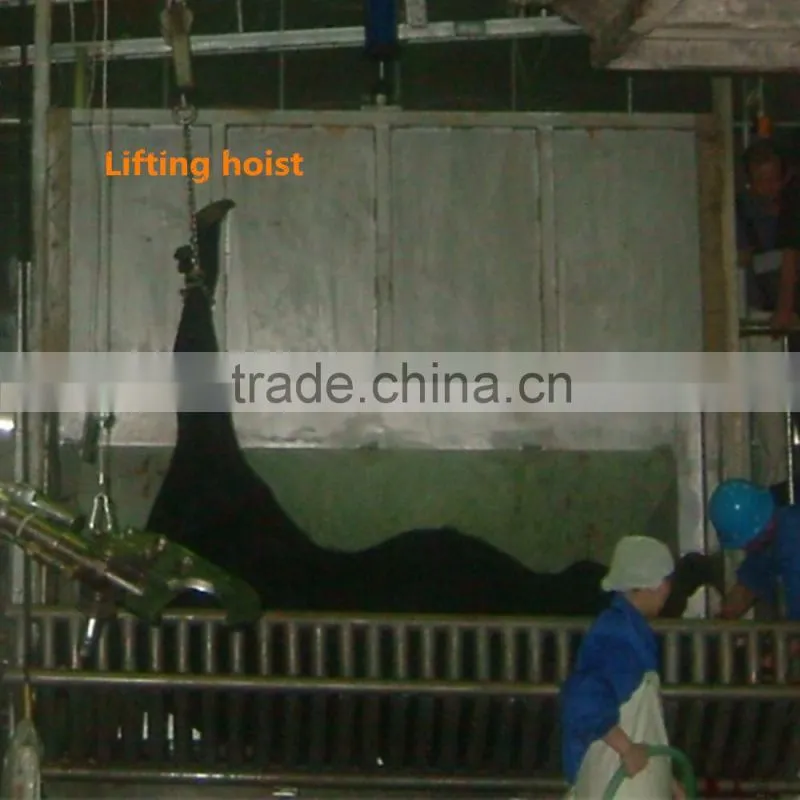

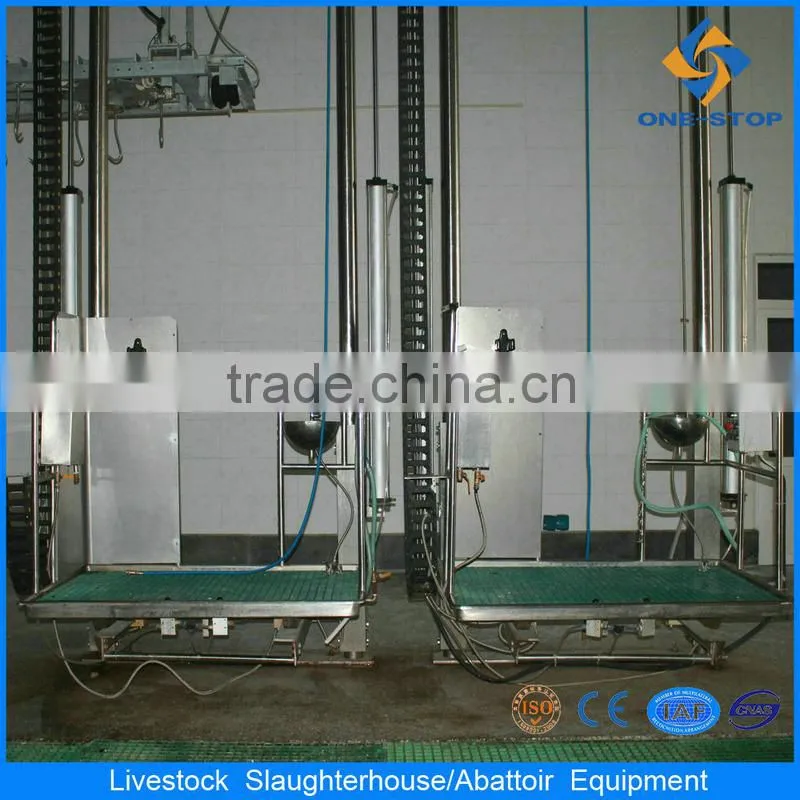

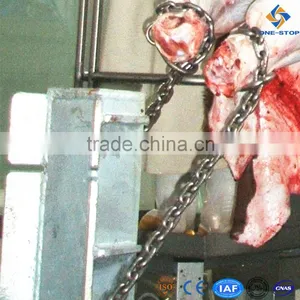

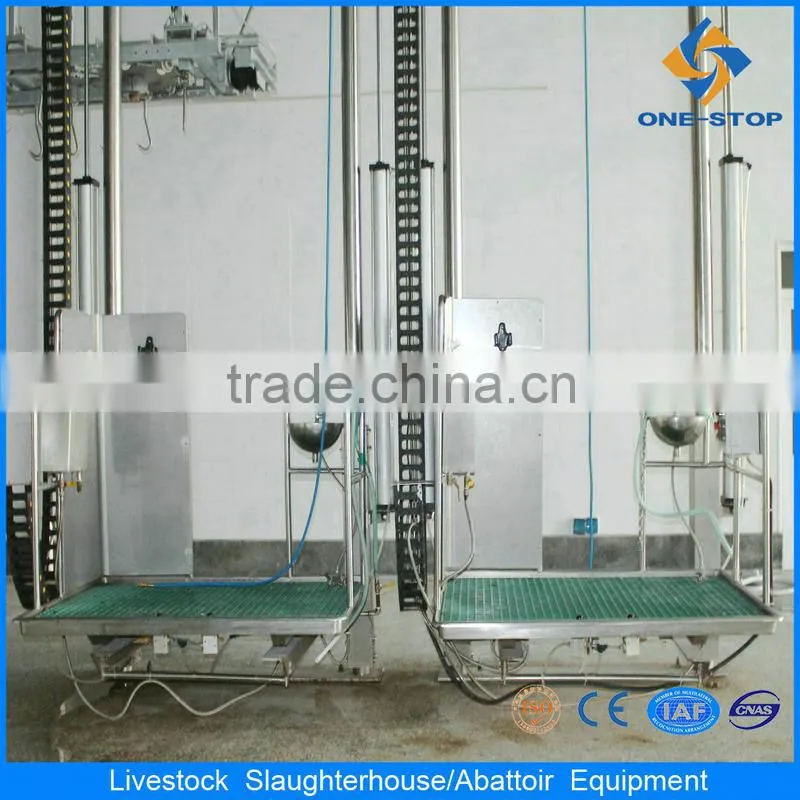

There are mechanical decorticator and aerodynamic decorticator. Two workers are needed in operating this kind of equipment, who will fasten the cattle which is in the decorticating position to the rack with shackles, and peel the hide from top to bottom. In operation, the whole process can be controlled by stopping the lift platform at different positions.
Materials: Q235B, Stainless Steel.
[Technology Parameter]
External dimensions |
1700×800×5500 |
Retard model |
BLD12-59-1.1 |
Air cylinder model |
160×2300 |
pressure of the air cylinder |
0.5~0.8Mpa |
Productivity |
40~60head per hour |
--------------------------------------------------------------------------------------
Halal complete cattle slaughter machine line for 100 heads per day Equipment list as below:
Name Qty Unit
1 guard rail for entrance way 1 set
2 Live cattle weighing system 1 set
3 cattle leading drawer 1 pc
4 Pneumatic reverse box 1 pc
5 Live cattle hanging hoist 1 pc
6 Auto bleeding conveying line. 32 m
7 Shackle chain 20 pc
8 Bleeding trough 1 pc
9 Cattle blood conveying pipe 1 pc
10 Cattle blood conveying pool 1 pc
11 Three-position pre-peeling platform 3 pc
12 Rehanging and Anus closing platform 1 pc
13 Rehanging hoist 1T 1 pc
14 Seven work-position step forward conveyor 1 pc
15 Hydraulic skin peeler (including the leg tied support) 1 set
16 Pneumatic single pole elevator 2 pc
17 Chest open saw 1 pc
18 Band half parting saw 1 pc
19 Chest-open platform 1 pc
20 Sterilizer for half-parting saw 1 pc
21 Sterilizer for chest-open saw 1 pc
22 White viscera picking out platform with slide trough 1 pc
23 Red viscera picking out platform 1 pc
24 Carcass quarantine and trimming double-pole elevator 1 PC
25 Platform for viscera quarantine 1 PC
26 Pneumatic double pole elevator for half parting 1 PC
27 (24 Trays )Synchronous quarantine line 1 set
28 Viscera sliding trough 2 pc
29 Red Viscera receiving platform 1 pc
30 White Viscera receiving platform 1 pc
31 red visceral work platform 8 pc
32 red viscera washing pool 10 pc
33 cattle intestine washer 1 pc
34 sick cattle quarantine line 18 m
35 400KG Electric orbit scale 1 set
36 Tube rail hand push line 420 m
37 Tube rail pulley 600 pc
38 Tube rail convey cart 2 pc
39 Tube rail switch 45 pc
40 Central control System of Slaughtering line 1 set
41 (4.3m3/min,0.8MPa)Air compressor(4.3m3/min,0.8MPa) 1 pc
42 TOTAL
1 Hand wash Device with cutter sterilize 10 set
2 Apron washer 3 pc
3 Cutter sterilizing device 2 pc
4 Four position hand wash basin 3 pc
5 Total:
1 Four-parted carcass hoist and descender 2 set
2 Dividing and conveying line 2 set
3 1200×700×800 Dividing work table 36 pc
4 Revolving sorting table 2 pc
5 Standard cart 200L 5 pc
6 Hand wash device with cutter sterilizer 6 set
-------------------------------------------------------------------------------------
