XH-1000 Wire Wrapping Machine

FOB Price

US$ 6,000 - 8,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, Machinery & Hardware
Packaging Type	Other, ring	Packaging Material	Other, galvanized steel wire/CO2 welding wire etc.
Automatic Grade	Automatic	Driven Type	Electric
Voltage	Customerized	Power	3.75KW/h
Place of Origin	Jiangsu, China	Brand Name	sanlian
Model Number	XH-1000	Dimension(LWH)	202014502040
Weight	about 1450kg	Certification	ISO9001
After-sales Service Provided	Engineers available to service machinery overseas

1.Machine Name:

XH-1000 wire wrapping machine

2.Machine application:

galvanced steel wire, CO2/MIG/Gas shiled welding wire. The finished products will be packaged in loops.

3.Main technical parameter:

Parameter name	Data
Speed of packing ring	88R/min
Speed of roller	3.56-20.88R/min
Width of packing strap	90mm
Outer diameter of packing strap	500mm
Inner diameter of packing strap paper tube	48mm
Lap width ration	Changeable
Package dimensions	Max. outer diameter	1000mm
	Min. inner diameter	300mm
	Max. width	350mm
	Max. weight	500kg
Motor Power	3.75kw
Machine dimension	LengthHeightWidth	202014502040(mm)
Machine weight	≈1450kg

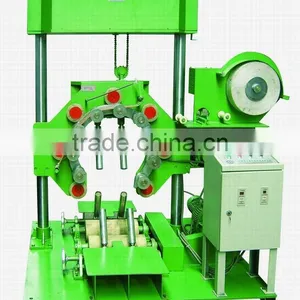

4.Pictures of wire packing machine:

5.Why Not Choose Us:

(1 ). We are one of the leading wire drawing machine manufacturers with more than 20 years experiences with a high reputation.

(2). We have gotten ISO9001:2008 standard and certificate.

(3). Company location: Jiangyin city, 150km away from Shanghai. Welcome to visit us, we will pick you up from Shanghai.

(4). Number of employees: 100-120

(5). We have a professional technical team, a good after-sale service team, an excellent production management team.

(6). We can design and produce various wire drawing machines, auxiliary equipment according to customers’ special requirements.
