Steel bar packager XL-400
Detailed Selling Lead Description
Product Name: steel bar packager XL-400
Company Published: 2009
Business Type: Manufacturer
Number Of Employees: 100-200 people
Place Of Origin: Jiangyin, Jiangsu, China
Port: Shanghai
Package: wooden case
Delivery Time: 30 days
Feature: Applicable for packing steel bar, steel tube, etc.
Main technical parameter:
Parameter name |
Unit |
Data |
Rotor speed of packing ring |
R/min. |
85 |
Width of packing strip |
Mm |
150 |
Max. outer diameter of packing strip |
Mm |
220 |
Caliber of packing strip |
Mm |
50 |
Lap width ratio |
|
50%-30% (changeable) |
Packages’ diameter |
Max. length (mm) |
6000 |
Max. outer diameter (mm) |
500 |
|
Max. weight (kg) |
1500 |
|
Power |
KW |
8 |
External dimension |
Length *width*height (mm) |
9800*1400*2000 |

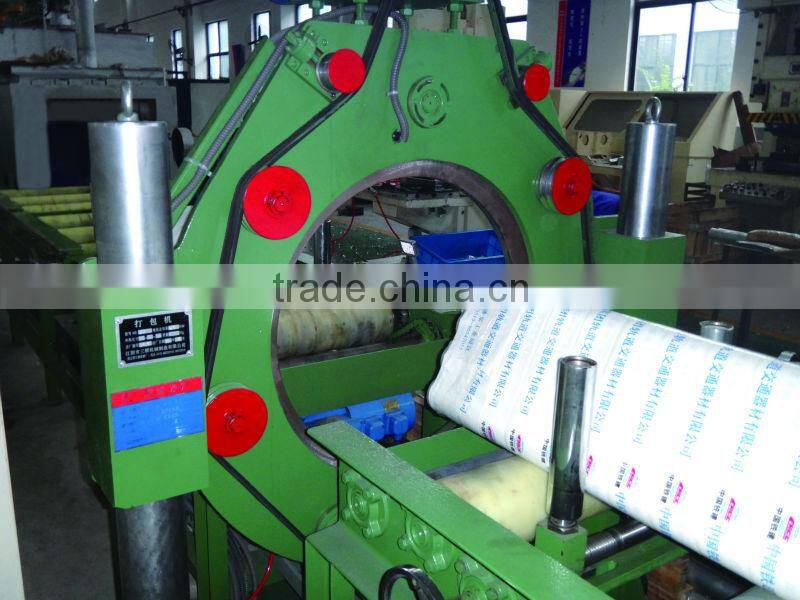

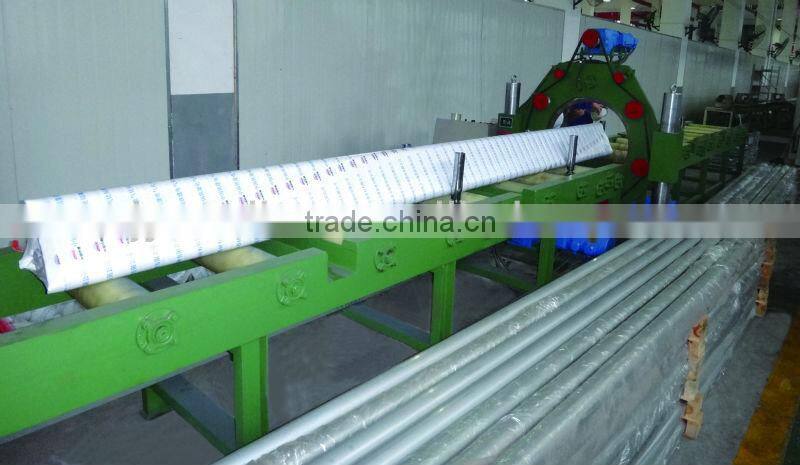

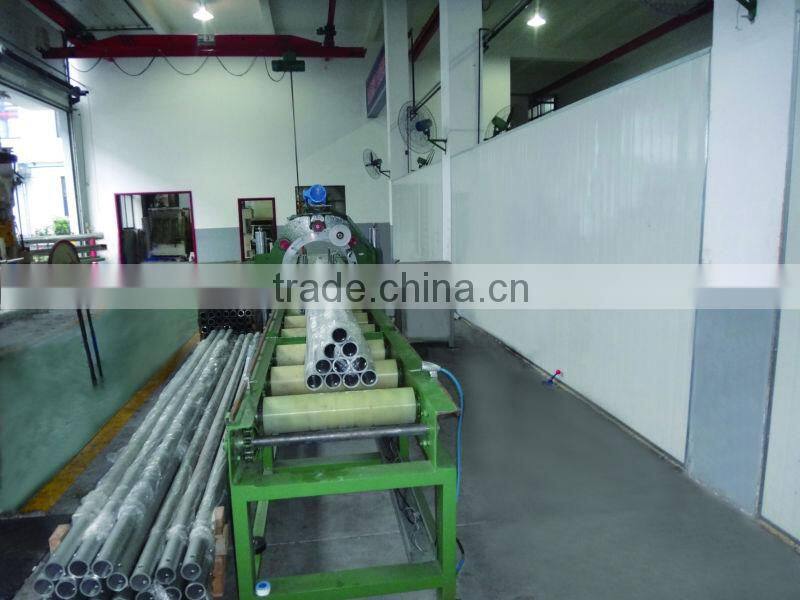

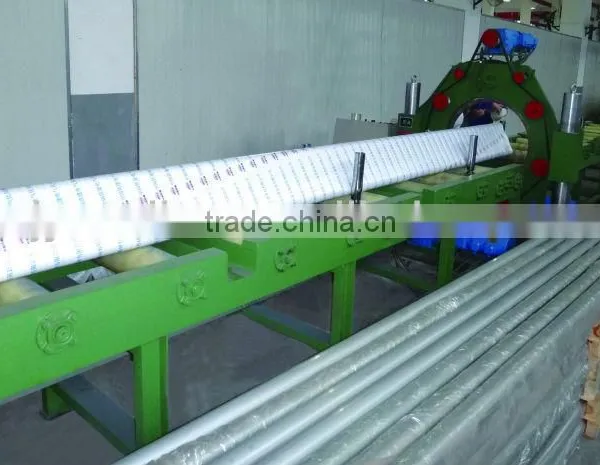

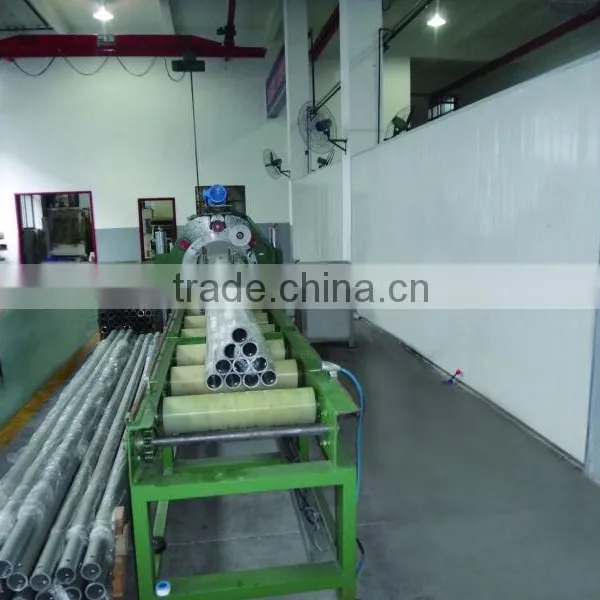

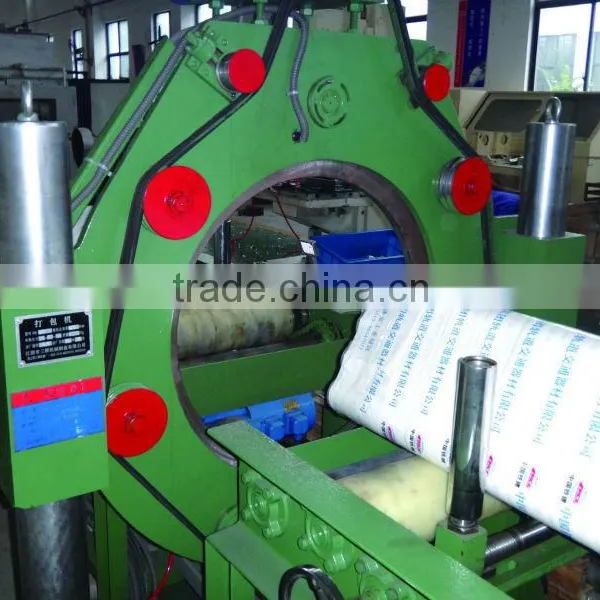

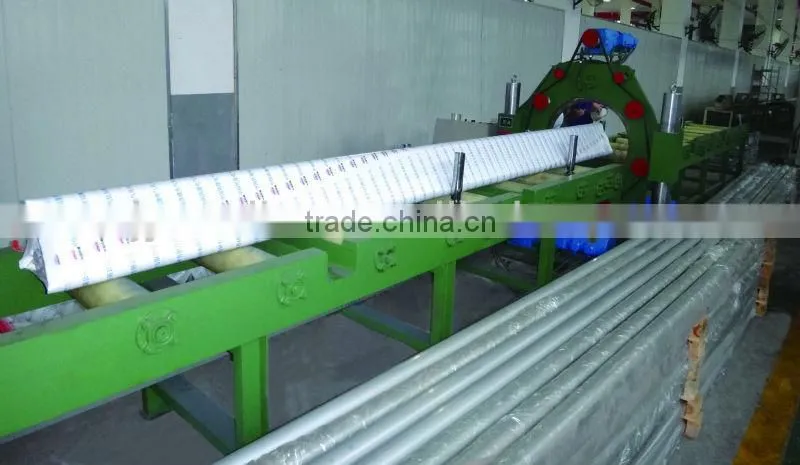

pictures of machine:
