spooler wire take-up machine SG740
Detailed Selling Lead Description
Product Name: Bobbin wire take-up machine SG740
Company Published: 2009
Business Type: Manufacturer
Number Of Employees: 100-200 people
Place Of Origin: Jiangyin, Jiangsu, China
Port: Shanghai
Delivery Time: 30 days
Package: wooden case
Feature: Applicable for continuous finished drawing wire take-up and wreathered steel wire coiling in the level direction of the bobbin.
Main technical parameter:
Item | Unit | Parameter |
Block size | mm | 1120×560×850(Outer width) |
Wire diameter | mm | 6.0~5.0 |
Take-up strength | Mpa | 1200~1650 |
Take-up speed | m/min | 240~300 |
Load carrying capacity | Kg | 2500 |
Traversing space between | mm | 28 (adjustable constant distance) |
Coiling tension | N | 190 |
Air pressure | Mpa | 0.45 |

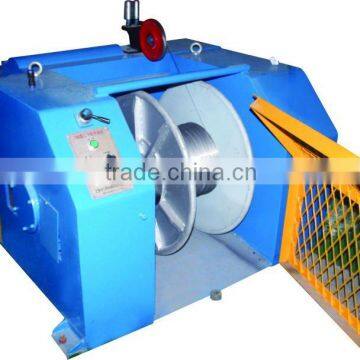

Picture of machine:
