PVDF Aluminium composite panel exterior decoration acp board

Specifications

Specifications
Standard size:1220*2440*4mm
Delivery time:30day
Warranty:15year
Weather,Fire,Waterproof

Quick Details

Place of Origin:	Ningbo China (Mainland)	Brand Name:	Lanren	Usage:	Outdoor
Function:	Fireproof	Surface Treatment:	PVDF Coated

Packaging & Delivery

Packaging Detail:	standard export packing & as customers' requirements
Delivery Detail:	25-30 days

Specifications

Standard size:1220*2440*4mm
Delivery time:30day
Warranty:15year
Weather,Fire,Waterproof



Wall Cladding ACP aluminum composite panel



1.Specifications

Standard size	1220*2440*3mm and 1220*2440*4mm
Accepted Width	Max:2000mm
Accepted Length	Max:6000mm
Accepted Thickness	2mm,3mm,4mm,5mmm,6mm
Aluminum alloy thickness	0.10mm 0.15mm 0.18mm 0.21mm 0.25mm 0.3mm 0.35mm 0.40mm  0.45mm  0.50mm
Weight	5 kg/m2 base on 4*0.4mm
Nonstandard	sizes are available according your requirement

2.Quality

    1)Under natural climate ,film coating will be no flake .no rubbles ,no vestige and no pulverization.
    2)Under common environment.no flake.no rubbles.
    3)Under common temperatures and radiation,no color deferent.
    4)According to international test standard,all the tested items are satisfied with high-class.
    5)Our products with PVDF coating which produced under GB/T17748-1999 is with 70% PVDF.and under common environment,we canguarantee 15~20 years;and for FR products,it is good at fireproof,and the FR grade is B1(according to the standard Q B8624).

3.Seaworthy packing
    1) 20 foot container: 2mm panel-6000M2, 3mm panel-5000M2, 4mm panel-4000M2, 5mm panel-3000M2.
    2) 40 foot container:2mm panel-8000M2,  3mm panel-7000M2,  4mm panel-6000M2, 5mm panel-5000M2.

4.Material

   1) Top: aluminum alloy(3003) coated with Fluorin carbon resin (PVDF) or Polyester resin  (PE) roasting painting.
   2) Core:non-toxic polyethylene or  fireproof material(B1).
   3) Back:aluminium alloy sheet coated with polyester resin painting.
   4) Surface finish: PVDF / PET coated,brushed finish, mirror finish, wooden faced,marble faceed ,nano painting ect.
   5) Surface coating thickness :25~30 μm  70% KYNAR 500 PVDF or PET.

5.Feature

   1)Super werther resistance
   2)Light weight easy to process
   3)Excellent fire resistance
   4)Excellent impact strength
   5)Uniform and colorful coating
   6)Easy maintenance...and so on

6.MOQ

    MOQ:1000 SQM , Stock size could be less .

7.Delivery time

    Within 30 work days after receiving the first deposite payment .

8. Payment

    T/T, L/C

9.Production capacity

    Average 3500 SQM/Day

10. Brand

 Lanren







Wall Cladding ACP aluminum composite panel

11.Detail Packing

   Strong wooden case & bulk or In pallet





12.Structure

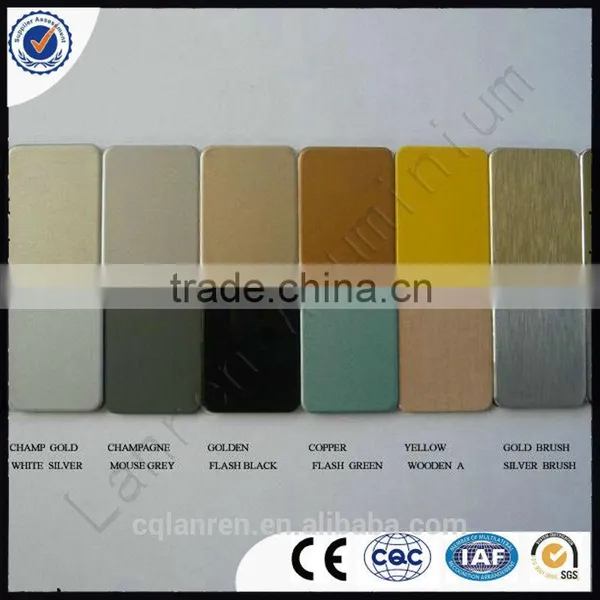

13.Color Panel

lors charts







15.Main Usage



16.About us and our Manufactory

Chongqing Lanren Aluminium Co., Ltd was established in 1995, located in Chongqing municipality in China. Through over 17 years construction and development, our factory have cover 266,400 square meters and 3000 workers, and Lanren has  become into a comprehensive super large size aluminium fabrication enterprise for its large production scale, advanced equipments, full ranged product varieties in  China.







17.Certificate

Our ISO 9001:2008certified company houses 67 QC staff with 15 years experience that are allocated to at least two QC staff per production line. To maintain a strict QC system, we not only utilize precision testing instruments but we also continuously train our QA personnel regarding the latest testing principles.

18.Exhibition

We go to many places for exhibition, and have established long term business ship with more than 70 countries and areas in the world, including Canada, Brazil, India, Chile, Nigeria, Ghana, Italy etc.We will continue to provide high quality products and better service for our widespread customers, and welcome to visit our company and establish good business relationship.

19.Contact us.
