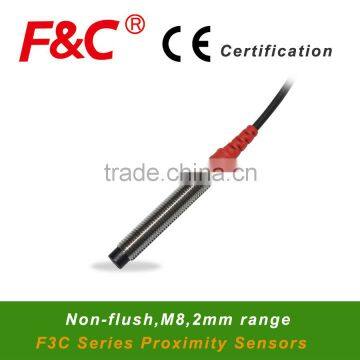

M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years Warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor

F&C Sensing Technology (Hunan) Co., Ltd.
M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years Warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor thumbnail-1
M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years Warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor thumbnail-2
M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years Warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor thumbnail-3

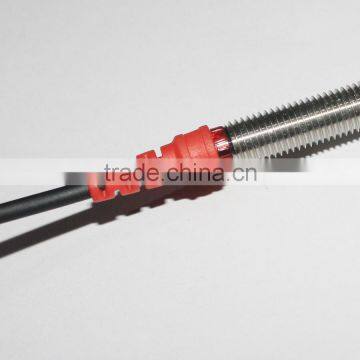

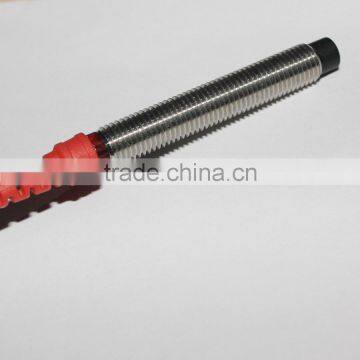

M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years Warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor photo-1
M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years Warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor photo-2
M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years Warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor photo-3
US$ 5 - 10 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3C-08KN02-N/P
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name F&C
Model Number F3C-08KN02-N/P
Usage Position Sensor
Theory Inductance Sensor
Output Switching Transducer

 M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor

M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor

M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor


M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years warranty, 360 Degree LED View, NON-Flush 12~24VDC SensorM8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor

M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor

M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor

Product Description

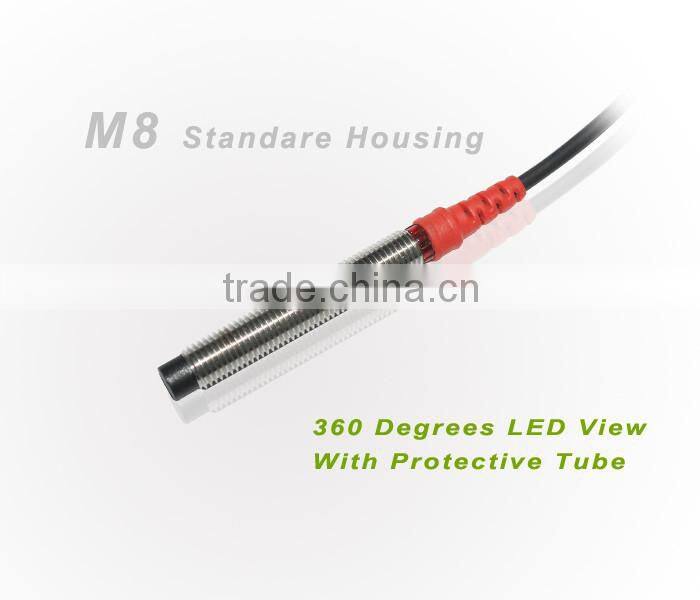

F3C series Proximity sensor
1) 2M soft PUR cable;

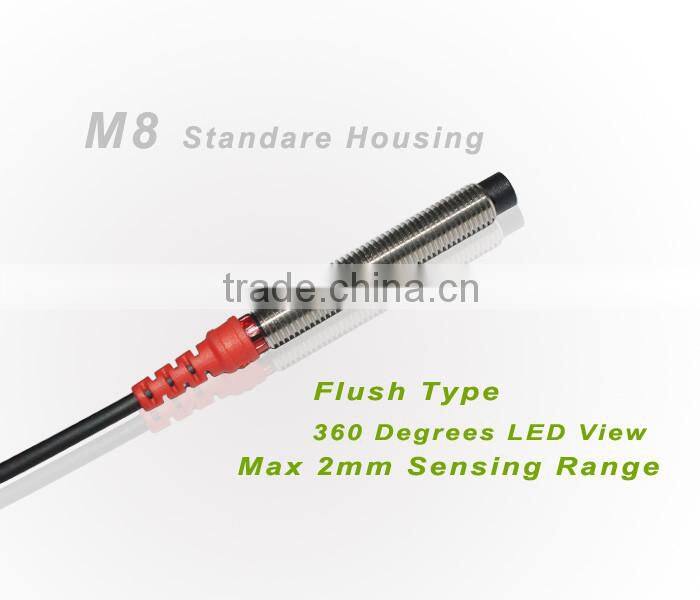

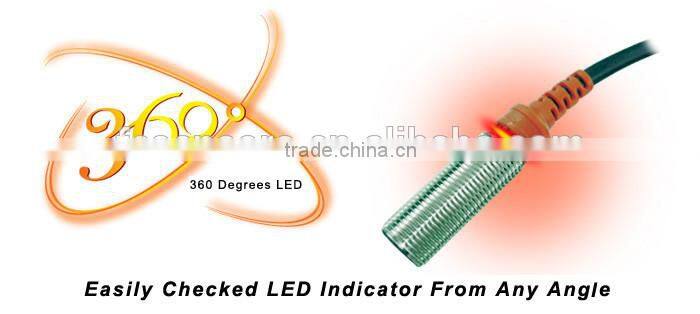

2) 360 degrees LED view;
3) With red protective tube for protecting cable;
4) Support for customizing, 5V DC offered.


DiscriptionsPart NumbersOutputSensing RangeDetected ObjectCable

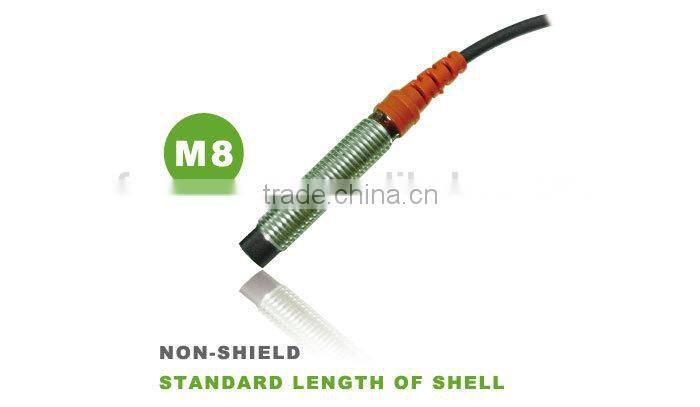

M8/NON-Flush/Standare HousingF3C-08KN02-N R2MNPN.NO2mm8×8×1(iron)φ4×2M/3-wires
F3C-08KN02-N2 R2MNPN.NC
F3C-08KN02-P R2MPNP.NO
F3C-08KN02-P2 R2MPNP.NC



Response frequency1000Hz/800Hz
Hysteresis10%≤sensing distance
Operating voltageDC:12~24VDC±10%/ can customize 5V
Current consumptionDC:≤8mA No—Load
Load currentDC:24V 150mA Max
Leakage currentDC:≤0.01mA no-Load
Residual votageDC:≤1.5VDC No-load
Operating temperature-20°C~+70°C
MaterialPBTand SUS304
Wiring method2M/3-wires
Protection degreeIP67

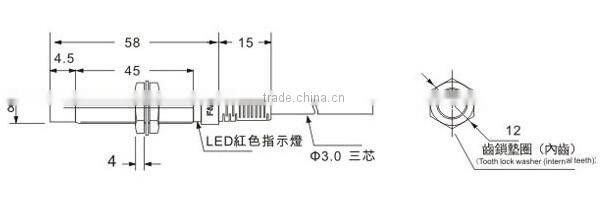

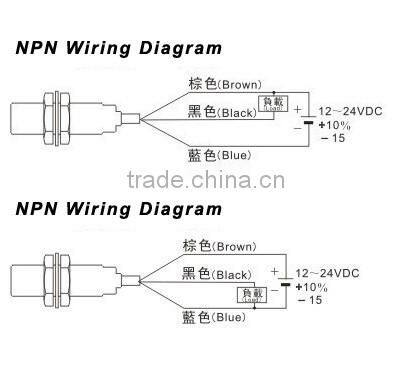

Diagram



M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor

M8 F&C F3C-08KN02 Series Inductive Proximity Sensor, 2 Years warranty, 360 Degree LED View, NON-Flush 12~24VDC Sensor
