RF Connector - TNC Adapter Crimp Plug for RG58
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
db
Model Number:
tnc connector
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF Connector - TNC Female Connector Bulkhead Crimp Jack for RG316NegotiableMOQ: 500 Pieces -
RF Connector -female TNC Bulkhead Connector Crimp Jack for RG316NegotiableMOQ: 500 Pieces
-
RF Connector -female TNC Jack Bulkhead Connector Crimp for RG316NegotiableMOQ: 500 Pieces
-
RF Connector -female Tnc Bulkhead Jack Connector for RG316NegotiableMOQ: 500 Pieces
-
50 Ohm RF TNC Connector - Male Cable Crimp for RG316NegotiableMOQ: 500 Pieces
Place of Origin
Jiangsu, China
Brand Name
db
Model Number
tnc connector
Type
TNC
Application
RF
Gender
Male
Specifications
RF TNC adapter1.factory price ISO9001 timely delivery
2.rf connector
3.50 ohm,0-11 GHz
4.TNC crimp adapter

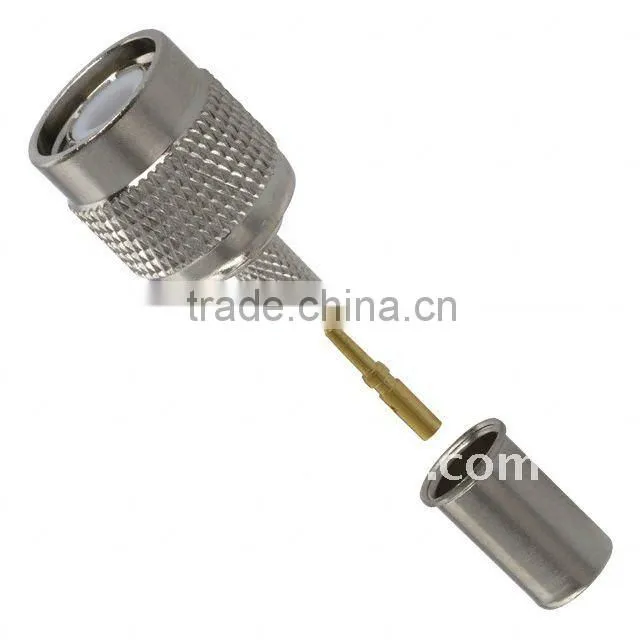

RF Connector - TNC adapter Crimp Plug for RG58
Series TNC are very popular thread coupling middle-power coaxial connectors, which are an ideal choice for use in cellular and mobile communication, airplane, aerospace, and radar applications where vibration-resistant and environmental protection must be required.
RF Connector - TNC adapter
Straight Crimp Plug
For RG58 LMR195 Cables
Features:
- Threaded coupling nut application
- 50Ω and 75Ω are available and intermateable
- Various options for different applications
Applications:
- Antennas
- Broadcast
- Radios
- Telecom
Electronical Specifications
| Impedance | 50Ω | 75Ω |
| Frequency Range | 0-11 GHz | 0-2 GHz |
| Working Voltage | 500 VRMS max. at sea level | 500 VRMS max. at sea level |
| Dielectric Withstanding Voltage | 1500 VRMS min. at sea level | 1500 VRMS min. at sea level |
| VSWR | Straight: 1.3 max., R/A: 1.5 max. | Straight: 1.3 max., R/A: 1.5 max. |
| Contact Resistance | Center Contact: 3 milliohm Max. | Center Contact: 3 milliohm Max. |
| Outer Contact: 2 milliohm Max. | Outer Contact: 2 milliohm Max. | |
| Insulator Resistance | 5000 megaohms min. | 5000 megaohms min. |
Material Specifications
| Parts Name | Material | Finish | |
| Center Contact | Male | Brass | 3u" Gold or Silver per requirement |
| Female | BeCu or P. Bronze | 3u" Gold or Silver per requirement | |
| Body, Metal Parts | Brass | Nickel | |
| Insulators | PTFE, Delrin, PBT | None | |
| Clamp Gaskets | Silicone rubber | None | |
| Crimp Ferrules | Annealed copper | Nickle or Silver per requirement | |
Note: Other Material/Finish is available on request

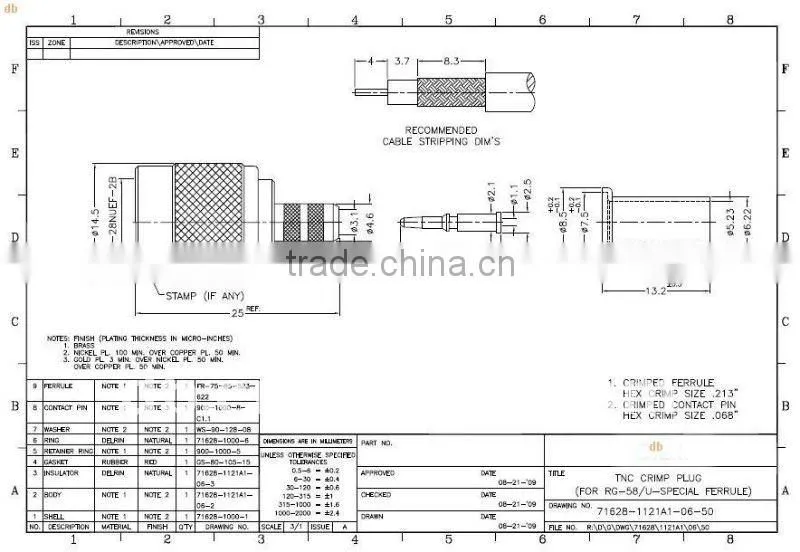

Designs of tnc connector:
