RF Connector - 50 ohm rf cable crimp N Connector
- 100000 Piece / Pieces per Month
- shanghai
- T/T D/P D/A Credit Card
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | db | Model Number: | N connector |
Type: | Other, n connector | Application: | RF | Gender: | Male |
Product Description
Specifications
N connector1.factory price ISO9001
2.50 ohm rf connector
3.For lmr240 cable
4.N connector N crimp cable plug
1)APPLICATION of n connector :
GSM System
GPS Navigation System
Wireless Communication System
Antennas
Car Radio
Test Equipment
Microwave Components
Data Transmission
Lan System
Satellite Transmission
Aviation Equipment
Antennae, base stations, transmitters,
2)n jack connector
- Plug ( Male )
- Contact Pin – Brass/Copper, Gold finish
- Impedance-50 Ohms
- Contact Body material –Brass or equivalent Non –Corrosive
- RoHS compliant
3) Type-N Mechanical Ratings
Mating | 5/8-24UNEF threaded coupling | |
Durability | 500 matings max | |
Recommended Coupling Nut Torque | 6 to 10 in-lbs | |
Coupling Proof Torque | 15 in-lbs | |
Coupling Nut Retention Force | 101.2 lbs max | |
Contact Captivation | 15.3 lbs max | |
Cable Retention | RG-174,188,316 | 20 lbs min |
RG-58,142,223,400 | 40 lbs min | |
RG-59,62,210 | 40 lbs min | |
RG-8,11,213,214 | 80 lbs min |
4) Materials
Material | Plating | ||
Connector Body | Brass | Nickel | |
Center Contact | Male | Brass | Gold |
Female | Beryllium Copper | Gold | |
Insulator | Teflon, Delrin, Polypropylene | None | |
Gasket | Silicone Rubber | None | |
Crimp Ferrule | Annealed Copper | Same as body |
5) Type-N Electrical Ratings
Impedance | 50 ohm | 75 ohm |
Frequency Range | 0-11 GHz | 0-1.5 GHz |
VSWR | 1.3 max @ 11 GHz | |
Voltage Rating (in VRMS at sea level) | 1000 max | |
Dielectric Withstanding Voltage (in VRMS at sea level) | 2500 min | |
Insertion Loss | .15 dB max @ 10 GHz | |
Insulation Resistance | 5000 M min | |
Contact Resistance | Center Contact | Outer Contact |
1.0 m max | 1.0 m max |

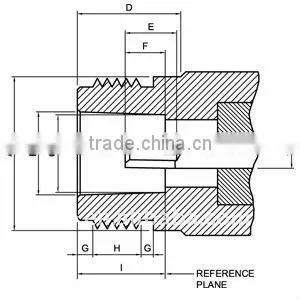

6)Designs of N connector:
N connector serial are high quality medium size connectors standardly used with coaxial cables from .350" to .450" OD, but designs can also acccomodate .078" to .875" cables.
N type connectors are threaded and gasketed for weatherproof operation. The threaded coupling incurs low noise and withstands shock and vibration.
