5mm Detection Distance NPN NC Rectangular Proximity Switch Sensor

F&C Sensing Technology (Hunan) Co., Ltd.
5mm Detection Distance NPN NC Rectangular Proximity Switch Sensor thumbnail-1
5mm Detection Distance NPN NC Rectangular Proximity Switch Sensor thumbnail-2
5mm Detection Distance NPN NC Rectangular Proximity Switch Sensor photo-1
5mm Detection Distance NPN NC Rectangular Proximity Switch Sensor photo-2
US$ 2.27 - 3.75 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
F3N-18TN05-N2 R2M
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen;Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Brand Name F&C
Model Number F3N-18TN05-N2 R2M
Usage Position Sensor
Theory Inductance Sensor
Output Switching Transducer



 Feature:

1.Stable performance, reverse polarity protection and short circuit protection

2.10-30VDC build-in amplifier, direct output

3.Clear LED indicator

4.200 mA triode output , high responsing speed can reach 0.1ms

5.5V proximity and different frequency proximity switch sensor can be customized

6.5mm,6mm,8mm and other special detection distance can be customized









Specification for  5mm detection distance NPN NC rectangular Proximity Switch Sensor



Induction DirectionFront Induction
ModelF3N-18TN05-N2 R2M
Output MethodNPN NC
Detection Distance5mm
Standard Detection Object18×18×1(iron)
Response Frequency600HZ (Different Frequency can be customized)
Hysteresiswithin 10% of sensing distance
Operating Voltage10-30V DC
Current ConsumptionLess than 8mA (No Load)
Load Current100mA Max@30V DC
Leakage Current1.1mA (No Load)
Residual VoltageLess than 1.0V DC (No Load)
Protection circuitReverse circuit protection short circuit protection
Operating Temperature-25~70℃
Protection DegreeIP67
MaterialABS
Wire  Methoddia 4*2M/3 wires

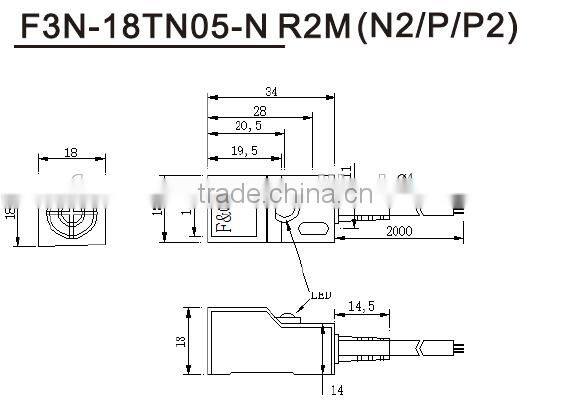

Dimension Drawing for 5mm detection distance NPN NC rectangular Proximity Switch Sensor

5mm detection distance NPN NC rectangular Proximity Switch Sensor

 Wiring Drawing for Proximity switch sensor

5mm detection distance NPN NC rectangular Proximity Switch Sensor



More Product Specification





CategoryModelDetection ModeDetection DistanceStandard Detection
Object		 Connecting Method
Front Induction
F3N-06TN01-N R2MNPN NOMax detection distance: 1.5mm
Stable detection distance 0~1.0mm



6×6×1(iron)diameter 3mm×2M/3 wires
150mm lead line with M8 connector
F3N-06TN01-N2R2MNPN NC
F3N-06TN01-P R2MPNP NO
F3N-06TN01-P2R2MPNP NC
Top Induction
F3N-06DN01-N R2MNPN NO
F3N-06DN01-N2R2MNPN NC
F3N-06DN01-P R2MPNP NO
F3N-06DN01-P2R2MPNP NC
Front Induction
F3N-08TN02-N R2MNPN NOMax detection distance: 2mm
Stable detection distance 0~1.8mm
8×8×1(iron)diameter 3mm×2M/3 wires
diameter 3mm×2M/2 wires
150mm lead line with M8 connector
F3N-08TN02-N2R2MNPN NC
F3N-08TN02-P R2MPNP NO
F3N-08TN02-P2R2MPNP NC
F3N-08TN02-B R2M2 wires NO
F3N-08TN02-B2R2M2 wires NC
Top   Induction
F3N-08DN02-N R2MNPN NO
F3N-08DN02-N2R2MNPN NC
F3N-08DN02-P R2MPNP NO
F3N-08DN02-P2R2MPNP NC
F3N-08DN02-B R2M2 wires NO
F3N-08DN02-B2R2M2 wires NC
Front Induction
F3N-12TN04-N R2MNPN NOMax detection distance: 4mm
Stable detection distance 0~3.2mm		12×12×1(iron)diameter 4mm×2M/3 wires
diameter 4mm×2M/2 wires
150mm lead line with M8 connector
F3N-12TN04-N2R2MNPN NC
F3N-12TN04-P R2MPNP NO
F3N-12TN04-P2R2MPNP NC
F3N-12TN04-B R2M2 wires NO
F3N-12TN04-B2R2M2 wires NC
Top   Induction
F3N-12DN04-N R2MNPN NO
F3N-12DN04-N2R2MNPN NC
F3N-12DN04-P R2MPNP NO
F3N-12DN04-P2R2MPNP NC
F3N-12DN04-B R2M2 wires NO
F3N-12DN04-B2R2M2 wires NC
Front Induction
F3N-15TN05-N R2MNPN NOMax detection distance: 5mm
Stable detection distance 0~4mm		15×15×1(iron)diameter 4mm×2M/3 wires
diameter 4mm×2M/2 wires
150mm lead line with M8 connector
F3N-15TN05-N2R2MNPN NC
F3N-15TN05-P R2MPNP NO
F3N-15TN05-P2R2MPNP NC
F3N-15TN05-B R2M2 wires NO
F3N-15TN05-B2R2M2 wires NC
Top   Induction
F3N-15DN05-N R2MNPN NO
F3N-15DN05-N2R2MNPN NC
F3N-15DN05-P R2MPNP NO
F3N-15DN05-P2R2MPNP NC
F3N-15DN05-B R2M2 wires NO
F3N-15DN05-B2R2M2 wires NC












Our Services

1.Prompt reply to our customer, we have to reply all the email within 24hrs

2.Provide free replacement if there is any quality problem with our product.

3. Accept OEM Order, Ship the product with your logo.



Packaging & Shipping



We will ship our product aboard with standard export package.

For small Qty, We will Ship our product to you by express.

For mass production , We will ship our product to you by Air or sea.







Company Information

F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory in 2006 and move its factory to Changsha in 2013.

F&C Sensing Technology is a leading sensor supplier in China .Our product has been sold to allover the world.Its products cover 14 series and 300 specification. Our main product include Fiber Optic Sensor, Fiber Tube, Fiber Focus Lens, Proximity Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor, Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.

F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”





Note
-------------------------------------------------------------------------------------
1. Customize for cable length, housing material and shape.
2. The above information is only reference.
3. Any question, just feel free to let me know.





I can be reached by Wechat:86-13809275350 and Skype:lynn_liu123.
