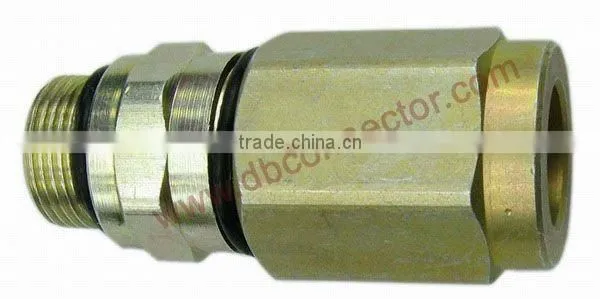

Help CenterWaterproof RG11 Feed Thru Connector
Related Products
-
RG11 5/8KS Pin ConnectorNegotiableMOQ: 500 Pieces -
Coaxial Trunk Cable to Drop Cable F Male ConnectorNegotiableMOQ: 500 Pieces
-
Feed Through Connector RG11NegotiableMOQ: 5000 Pieces
-
Aluminium Feed-Thru ConnectorNegotiableMOQ: 5000 Pieces
-
Feed Through Connector 5/8KSNegotiableMOQ: 5000 Pieces
Specifications
Waterproof RF Coaxial Feed Thru Connector1.RG11 Feed Thru Connector
2.O ring watertight
3.Small MOQ Feed Through Connector
RF trunk coaxial feed thru connector
Impedance: 75 Ω
Temperature Range: -55~+155 oC
Frequency Range: DC~7.5GHz
Insulation resistance: ≥ 10000 M Ω
Center conductor retention force ≥ 6N
Voltage standing wave ratio
Durability(mating) ≥ 500 (cycles)
Body: Brass & zinc and nickel plated
@2piece trunk and distribution connectors are used in low power RF, video, data signals and powered broadband systems. Chassis mounting connectors are used in 5/8-24 equipment entry.
@ Independent seizing of the center conductor permits installers to physically verify the center conductor has been seized prior to tightening the back nut
@ Placement of the integral mandrel of the connector in the main nut provides a full view of the center conductor's entrance into the seizing mechanism and requires minimal pull back for ease of installation
@ Domed insulator at the KS interface prevents moisture from collecting between the contact pin and connector body, reducing the possibility of corrosion
@ The GRS connectors have a center conductor cutting guide
*Moisture-proof through durability design
*Implementation of UV ozone-resistant and EPDM o-rings
*Use aluminum alloy for excellent corrosion resistance
*Beryllium copper contact pin with gold plating providing excellent RF conductivity
*Three-piece auto seizing design
*Cable center conductor cutting guide
*Visible entry of center conductor into seizing mechanism
*No torque wrench needed, metal to metal positive stop, ensures proper tightening of connector
