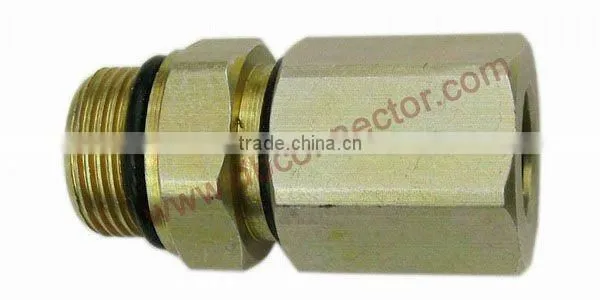

Rg11 Feed Thru Brass Connector

Rg11 Feed Thru Brass Connector thumbnail-1
Rg11 Feed Thru Brass Connector photo-1
Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
db
Model Number:
OPT-AP-8
Contact Supplier Request Quote Chat Now
Yangzhou Dongbei Electronic Equipment Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name db
Model Number OPT-AP-8
Type F
Application RF
Gender Female

Specifications

brass connector
brass material
factory price ISO90001 approved
brass connector
feed thru rg11 brass connector

 rg 11 feed thru brass connector



Impedance:                    75 Ω

Temperature Range:      -55~+155 oC

Frequency Range:           DC~7.5GHz

 Insulation resistance :    ≥ 10000 M Ω

Average power               3kw max

Center conductor retention force       ≥6N

Voltage standing wave ratio

Durability(mating)           ≥500 (cycles)

Body:             brass  and brass  plated



 ---------------------------------------------------------------------------------

  wide operating band - up to 3 GHz,

· waterproof termination of the cable,

· resistance to corrosion - made of non-ferrous metals and highest-quality dielectric,

· very low loss in the whole operating band,

· perfect matching to the transmission line within the whole operating band,

· monolithic construction,

· quick and easy assembly, as well as stability of operation of the equipment are really worth the price.

 -----------------------------------------------------------------------------------------

  • Moisture-proof through durability design
  • Implementation of UV ozone-resistant and EPDM o-rings
  • Use aluminum alloy for excellent corrosion resistance
  • Beryllium copper contact pin with gold plating providing excellent RF conductivity
  • Two-piece auto seizing design

    •

     rg11 feed thru brass connector
