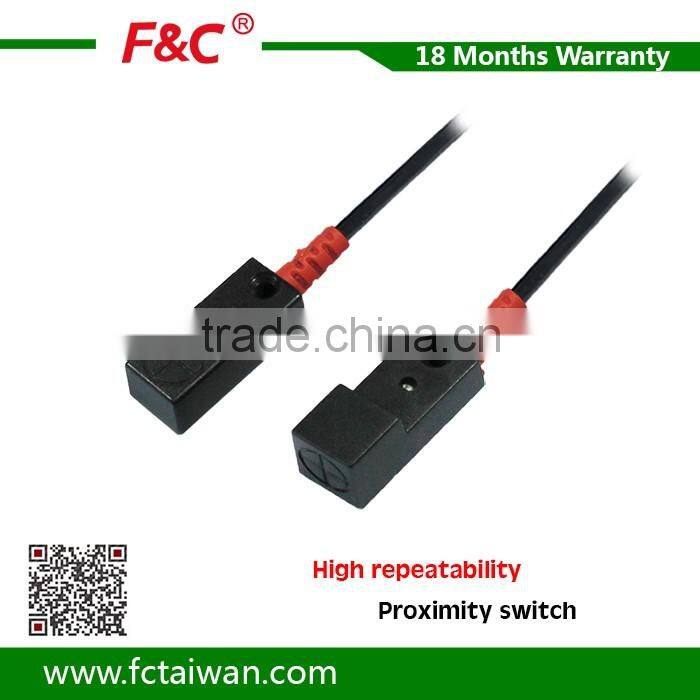

F&C 3 or 4 wires 4mm High repeatability Inductive Proximity Sensor Switch FSNDM04-N
Feature
1. Regular repeatability of proximity sensor is 0.005mm.
2. Repeatability accuracy of proximity sensor can reach 0.002mm.
3. Red protective tube at outlet location
4. Ship from factory directly and 18 months warranty
Specification
| FSNDM04-N High repeatability Inductive Proximity Sensor Switch | |
| Model | FSNDM04-N |
| Output Method | NPN NO |
| Inductive Direction | Front Induction |
| Detection Distance | 4mm |
| Hysteresis | Less than 10% of sensing distance |
| Standard Sensing Object | 12*12(Iron) |
| Repeatability Accuracy | 0.005mm |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 8mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.0VDC (No Load) |
| Leakage Current | Less than 0.01mA |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS and Nickeled copper |
| Protection Degree | IP67 |
| Wire Method | diameter 3*2M/-3wires |

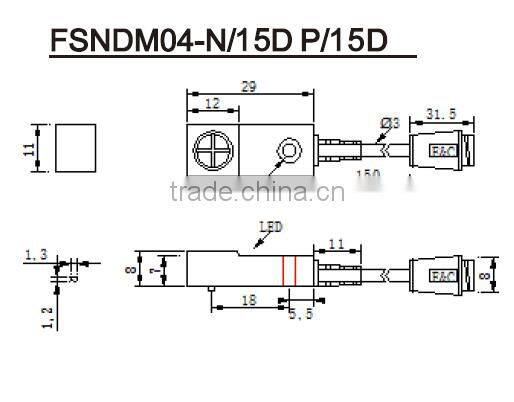

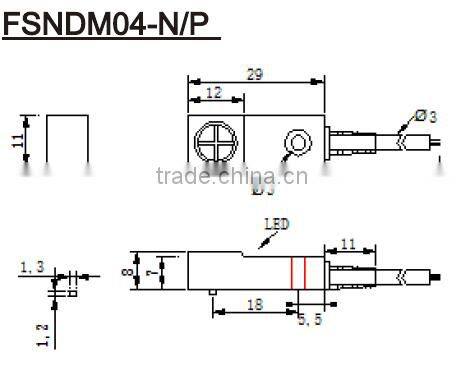

Dimension Drawing
