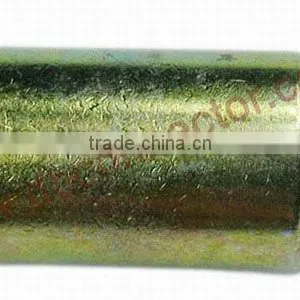

F Bulkhead Connector
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
db
Model Number:
OPT-BUL-1
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality CATV F ,RCA,BNC Connector Crimping ToolUS$ 0.2 - 0.3MOQ: 2000 Pieces -
F Connector Removal ToolUS$ 1.5 - 3MOQ: 50 Pieces
-
Yangzhou Dongbei Power Cable StripperUS$ 40 - 50MOQ: 10 Pieces
-
Rg59 Rg6 Rg11 Coaxial Cable Stripper Made in ChinaUS$ 2 - 3MOQ: 50 Pieces
-
F Male/Female Connector RG59/RG6/RG11 Crimping ToolUS$ 5 - 10MOQ: 30 Pieces
Place of Origin
Jiangsu, China
Brand Name
db
Model Number
OPT-BUL-1
Type
F
Application
RF
Gender
Male
Specifications
f bulkhead connectorImpedance: 75 Ohms
Interface: Standard 3/8-32 UNEF
material: zinc alloy or brass
water and weather
f bulkhead connector
Technical characteristics:
Temp-range |
-40°C~+60°C |
|
Impedance |
75Ω |
|
Frequency range |
0~1GHz |
|
Center conductor withdrawal force |
≥0.49N |
|
Contact resistance |
Center conductor |
≤6mΩ |
Outer conductor |
≤1mΩ |
|
Insulation resistance |
≥1000MΩ |
|
Withstand Voltage |
At sea level |
750V |
Working voltage |
170V max |
|
VSWR |
Straight |
≤1.20 |
Angle |
≤1.30 |
|
Durability |
500 cycles |
|
---------------------------------------------------------------------------------------------------------
- Wide hexagon nut for ease of tightening
- Quality brass plated Nickel
- Versions available to meet every requirement
- Precision high reture loss version ensures the most consistent impedance match possible
- Prevents signal ingress and egress
- Reduces water migration into open port
