Place of Origin Hunan, China
Brand Name F&C
Model Number F3C-5.4WSQ1.2 Series
Usage Position Sensor
Theory Inductance Sensor
Output Switching Transducer

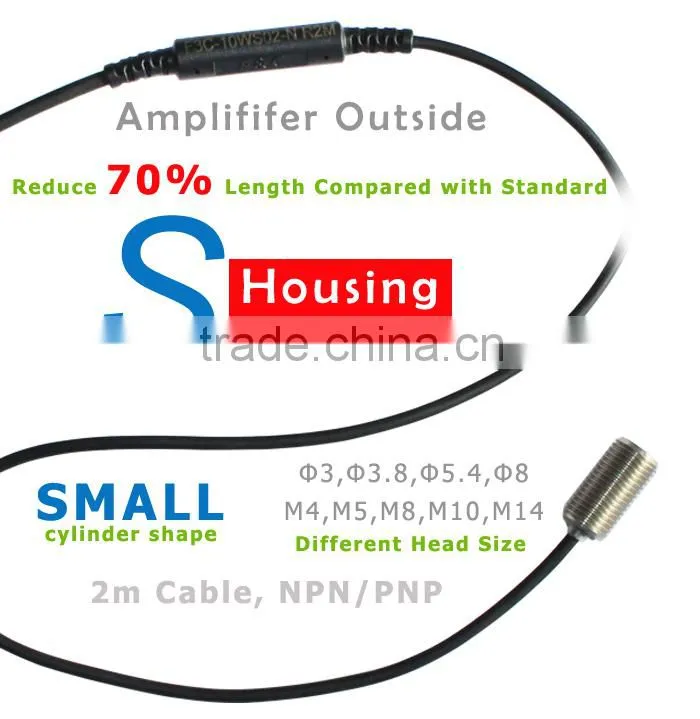

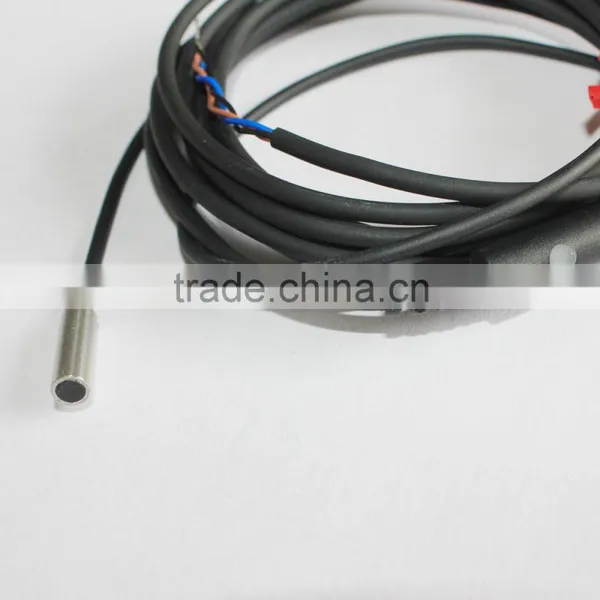

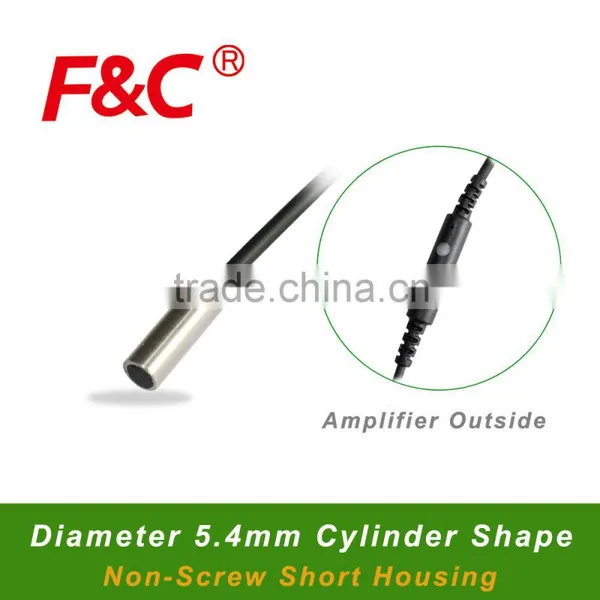

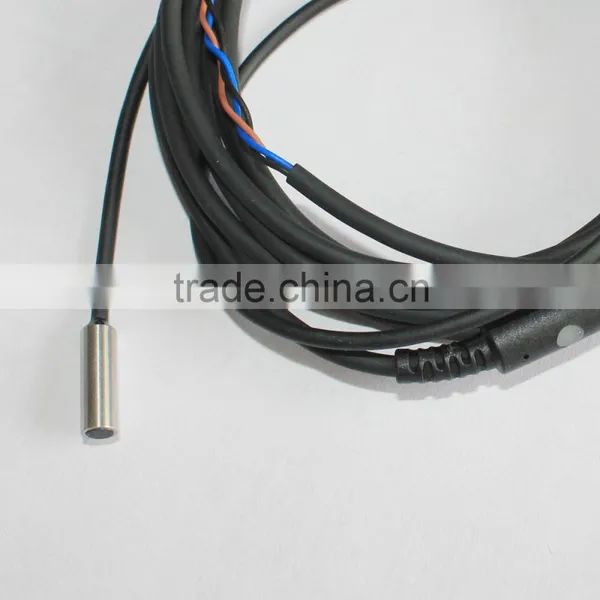

F3C-5.4WSQ1.2 Series M5 Proximity Sensor, Amplifier Outside, Short Length Housing, Flush/NPN/PNP/NO/NC Offered.

 Part Number:



F3C-5.4WSQ1.2-N  R2M       NPN.NO

F3C-5.4WSQ1.2-N2  R2M     NPN.NC

F3C-5.4WSQ1.2-P  R2M       PNP.NO

F3C-5.4WSQ1.2-P2  R2M     PNP.NC



Can be offered 150mm cable with a male connector type







Models F3C-5.4WSQ1.2 Series
Standard sensing object
 metal
Response friquency
 DC:600Hz
Hysteresis
 within 1O% sensing distance
Operating voltage
 DC:12~24VDC±10%
Current consumption
 DC:<8mA No—Load
Load currents
 DC:30V 200mA Max
Leakage currents
 DC:≤1.1mA no-Load
Residual votage
 DC:≤1.5VDC No-load
Operating temperature
 -20°C~+70°C
Material
 ABS and SUS304
Wiring method
 φ3×2M/3-wires
Protection degree
 IP66



Diagram
