Structural Insulated Panels

Chongqing Lanren Aluminium Co., Ltd.
Structural Insulated Panels thumbnail-1
Structural Insulated Panels photo-1
US$ 20 - 50 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
LR
Model Number:
LR-ACP
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name LR
Model Number LR-ACP
Function Anti-Static, Antibacterial, Fireproof, Mould-Proof
Surface Treatment Anodized, Brushed, Foil Decoration, Mirror, PE Coated, Printing, PVDF Coated, Other

Specifications

1.Aluminium Composite Panel
2.4mm x 0.08,0.18,0.2,0.3,0.4,0.5,0.8
3.PE and PVDF coated
4. 1 or 2 faces coated

PVDF Aluminium Composite Panel

PE Aluminium Composite Panel

NANO Aluminium Composite Panel

Fireproof Aluminium Composite Panel

Brush Aluminium Composite Panel

Mirror Aluminium Composite Panel

Wellstone(Marble,granite) aluminium composite panel

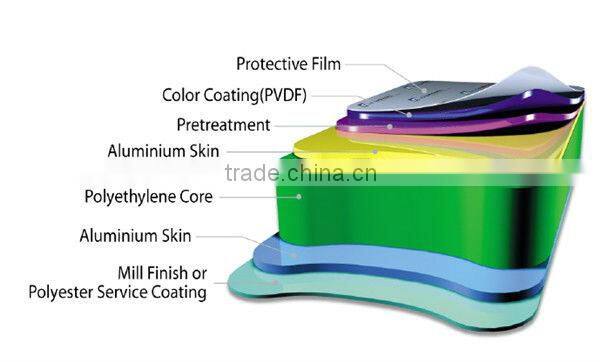

structural insulated panels



Specification



Panel Thickness(mm)
2mm-8mm
Aluminium Skin Thickness(mm)
0.08mm-0.5mm
Width(mm)
1220mm-2000mm
Length(mm)
2440mm-8000mm



Feature
-Light weight, high strength, extreme rigidity, superior impact resistance,
-excellent surface flatness and smoothness ,
-heat insulation, sound insulation, fire-resistance,
-acid-resistance, alkali-resistance, good weatherproofing and non-resonance
-various uniform colors ,can be easily processed and fabricated, quickly installed,
-elegant and magnificent, good flexibility fits various designs,
-easily maintenance, simply cleaning
Applications:
 Constructional exterior curtain walls;
 Decorative renovation for storey-added old buildings;
 Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
 Advertisement board, display platforms and signboards;
 Wallboard and ceilings for tunnels;
 Raw materials in industrial purpose;
Materials used for vehicle and boat.
SGS Test For 4mm PVDF A.C.P



Items
Standard
Results
Appearance
Clean surface without swell,flaws.scrath and aberration
pass

Length: ± 3mm
0mm~+2mm

Width: ± 2mm
0mm~+1mm

Thickness: 0. 2mm
0mm~+0.14mm
Deviation of dimension
Deviation of diagonal: ≤ 5mm
1mm

Out of straight at sides: ≤ 1mm/m
0.2mm/m

Warp: ≤ 5mm/m
1mm/m
Thickness of coating
≥ 25um
29u (av.30)
Deviation of luster
≤ 10
2.1 (av.28.0)
Hardness of pencil
≥ HB
3H
Toughness of coating
≤ 2T
2T
Adhesive
Not less than Grade1
Squaring off method of Grade 0 Grade 1marking method of rolling line
Impact strength
50Kg.cm Without paint off and crack
Pass
Boiling water resistance
(Boiling for 2h without change)
Unchanged
Acid resistance
Immerse surface with5%HCI(v/v)for 48h without change
Unchanged
Alkali resistance
Immerse surface with5%NaOH(m/m)for 48h without change
Unchanged
Oil resistance
Immerse surface with 20# engine oil for 48h without change
Unchanged
Solvent resistance
Clean 100 times with butanone without change
Bottom unrevealed
Cleaning resistance
≥ 10000 times without change
Unchanged
Abrasion resistance
≥ 5L/um
5.33L/um
Contamination resistance
≤ 15%
0.078
Density of surface
Specified value: ± 0.5Kg/m2
5.32Kg/m2
Bend strength
≥ 100Mpa
121Mpa
Flexuous modulus of elasticity
≥ 2.0×10 4 Mpa
3.12 × 104 Mpa
Through resistance
≥ 9.0kN
9.94kN
Cutting strenght
≥ 28.0Mpa
32.0Mpa
180 o peel strength
≥ 7.0N/mm
11.2N/mm
Resistance to change of temperature
-40 0C~800C 20 cycles without change
Unchanged
Heat deformation temperature
≥ 950C
1200C
Coefficient of heat expansion
≤ 4.00×10 -50C -1
1.98 × 10 -50C -1
Salt haze resistance (3000h)
Not less than Grade2
Grade 1
Artificial resistance aberration(200h)
≤ 3.0
1.24
Aging resistance Out of light(200h)
Not less than Grade2
Grade 1
other aging characteristic(200h)
Grade 0
Grade 0
