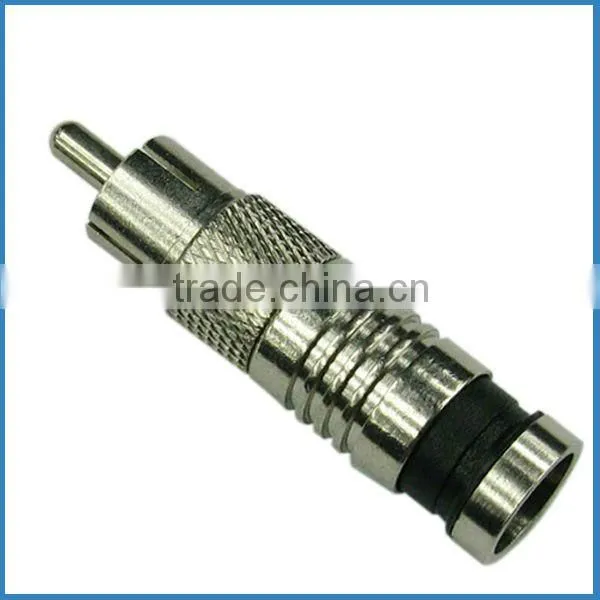

Straight Rg59 Rg6 f Compression Rca Audio Connectors
US$ 0.1 - 0.4
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DongBei
Model Number:
DB8063-C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rg58 Rg59 Rg6 f Plug Rca Compression ConnectorUS$ 0.1 - 0.4MOQ: 5000 Pieces -
Rg58 Rg59 Rg6 f Plug Compression Connector Copper Rca PlugUS$ 0.1 - 0.4MOQ: 5000 Pieces
-
DB8063-A Rca Crimp Video ConnectorUS$ 0.1 - 0.4MOQ: 5000 Pieces
-
Male RCA Compression Connector for RG58 RG59 RG6US$ 0.1 - 0.4MOQ: 1000 Pieces
-
Good Speed Solderless Rca Plug to Double 2 Rca JackUS$ 0.1 - 0.4MOQ: 1000 Pieces
Place of Origin
Jiangsu, China
Brand Name
DongBei
Model Number
DB8063-C
Type
RCA
Application
RF
Gender
Male
Specifications
rca audio connectors1.RCA compression connector
2.Waterproof RCA connector
3.Use for RG6,RG59
4.F use for cctv

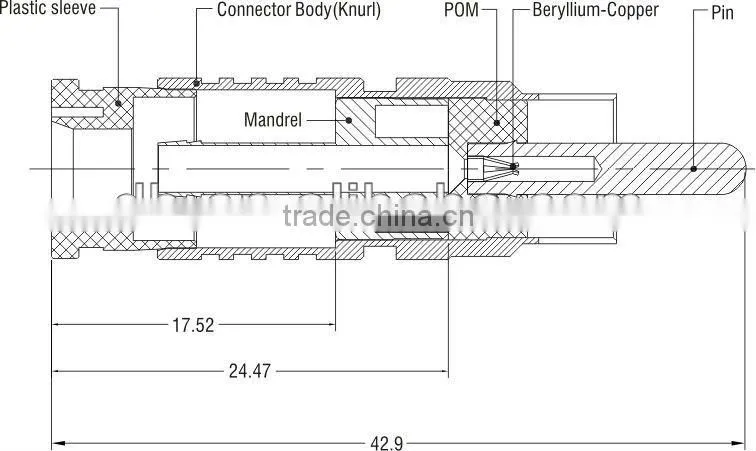

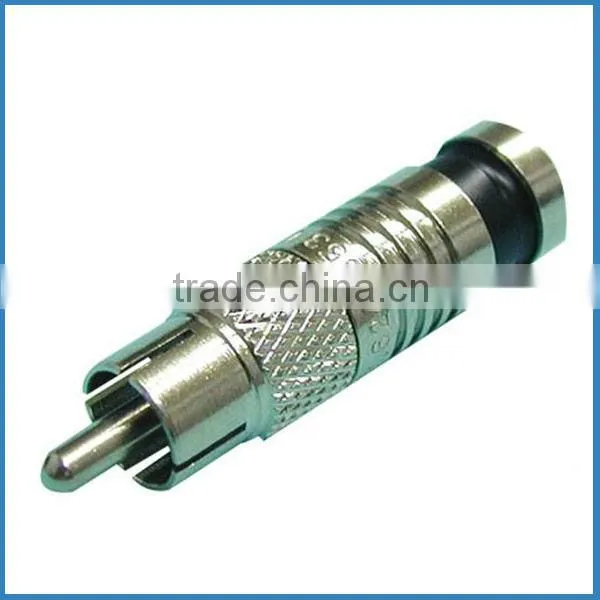

straight rg59 rg6 f compression rca audio connectors
| Connector type | F compression-RCA male | Working Voltage | 500V max |
| Frequency Range | DC~1GHz | Vswr | ≤1.3 |
| Impedance | 75Ω | Temp.range | -25~+85°C |
| Conductor resistance | Internal ≤ 1.5 mΩ | Material | Shell:Brass, Bright nickel plating |
| External ≤ 1 mΩ | inner conductor: Brass,gold plating | ||
| Insulating resistance | ≥ 5000 MΩ@ DC500V | ||
| Withstanding voltage | 1500V rms | Applicable standard | IEC 60169-8 |
- Useful in covering Female F equipment Jacks to an RCA female connection
- High retention center condutor seizing mechanism
- Precision machined threads provide smooth connection thread mating
- Low insertion loss provides excellent performance
- Return los performance ideal for video and audio frequencies
