Specifications
Compression rca male connector to coax1.Waterproof,O ring
2.Best service
3.Competitive prices
4.CCTV security accessorise

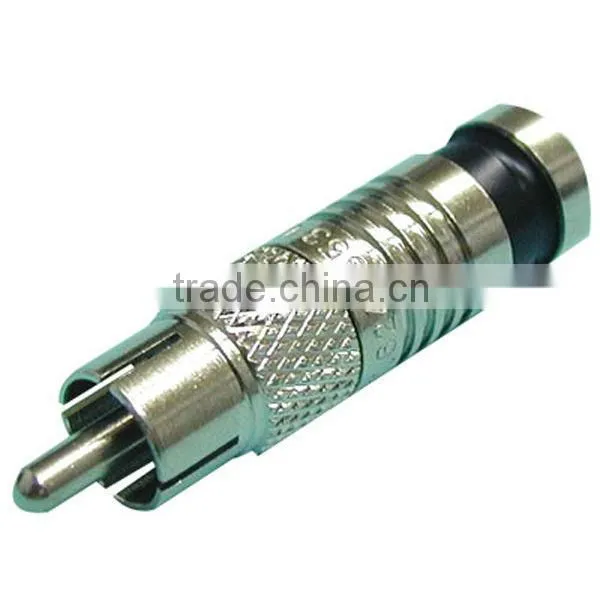

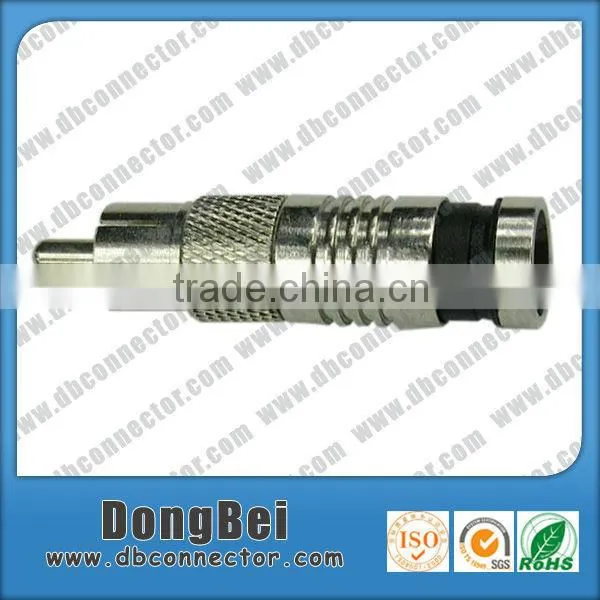

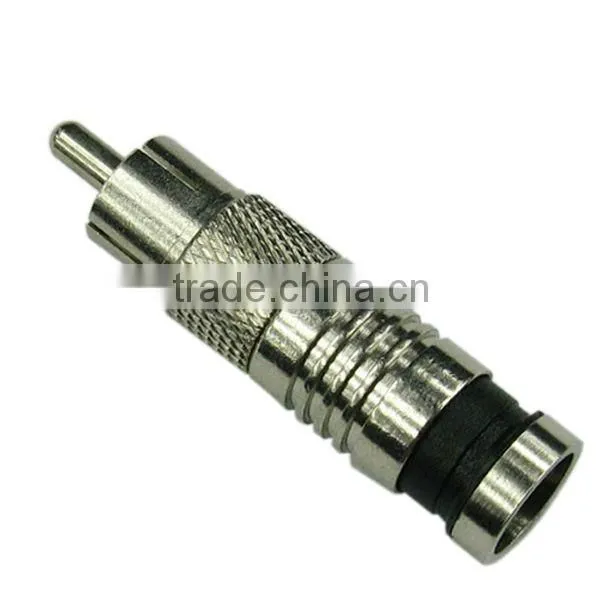

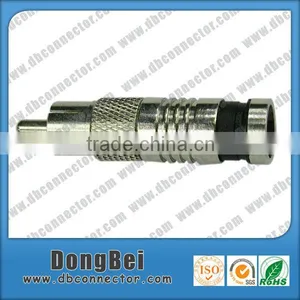

Compression male rca connector,rg59 rg6 rca to coax
| Connector type | F compression-RCA | Working Voltage | 500V max |
| Frequency Range | DC~1GHz | Vswr | ≤1.3 |
| Impedance | 75Ω | Temp.range | -25~+85°C |

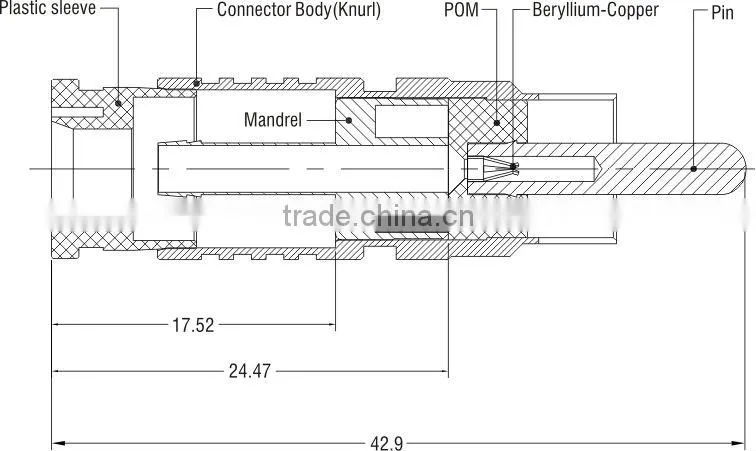

| Conductor resistance | Internal ≤ 1.5 mΩ | Material | Shell:Brass, Bright nickel plating |
| External ≤ 1 mΩ | inner conductor:Brass,gold plating | ||
| Insulating resistance | ≥ 5000 MΩ@ DC500V | Waterproof:O Ring | |
| Withstanding voltage | 1500V rms | Applicable standard | IEC 60169-8 |
- Useful in covering Female F equipment Jacks to an RCA female connection.
- High retention center condutor seizing mechanism.
- Precision machined threads provide smooth connection thread mating.
- Low insertion loss provides excellent performance.
- Return los performance ideal for video and audio frequencies.
* We have various types connector and an professional ,experienced service team.
* Welcome to login our website check more products information.
Dongbei QC Team
Donbei QC team consists of professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 12 hours.
Please fell free to call us at any time if there is any questions.
Transportation
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
