BNC Female to RCA Male Adapter Cable Connectors
US$ 0.1 - 0.4
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
DB Connector
Model Number:
DB8086-13
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Dongbei Brass Compression Type Rca ConnectorNegotiableMOQ: 1000 Pieces -
Dongbei RCA Compression Connector for Rg6 CableNegotiableMOQ: 5000 Pieces
-
Gold Plated RCA Pin Connector To BNC Terminal ConnectorUS$ 0.1 - 0.4MOQ: 1000 Pieces
-
Konektor RCA of Yangzhou Dongbei RCA Male ConnectorUS$ 0.1 - 0.4MOQ: 5000 Pieces
-
Conectores RCA of Yangzhou Dongbei RCA Male ConnectorUS$ 0.1 - 0.4MOQ: 5000 Pieces
Place of Origin
Jiangsu, China
Brand Name
DB Connector
Model Number
DB8086-13
Type
RCA
Application
RF
Gender
Male
Specifications
fessional manufacturer2.high quality,low price
3.male female cable connector
4.material:zinc alloy/copper
5.ISO9001

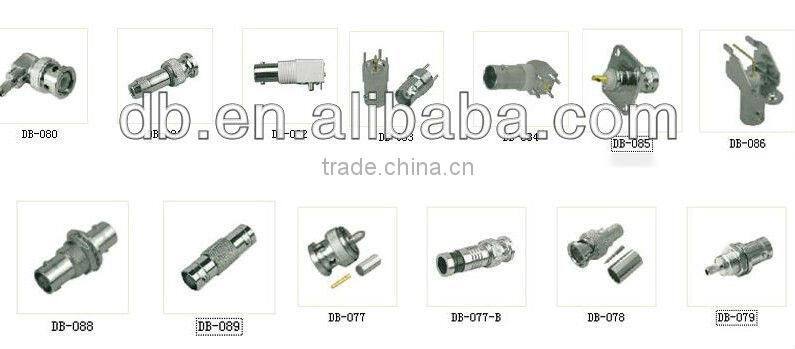

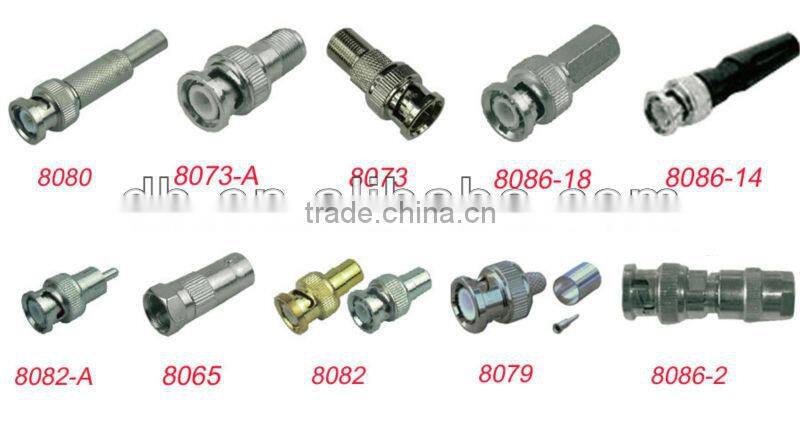

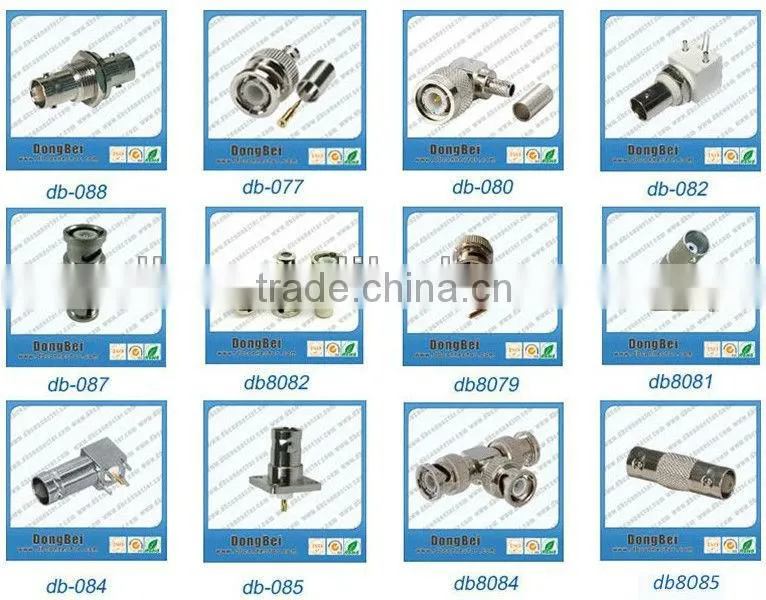

BNC Female to RCA Male Adapter Cable Connectors
Features:
- Bayonet coupling, small size and low cost.
- 50Ω and 75Ω are available and intermateable
- Various options for different applications
Applications:
- Antennas
- Broadcast
- Radios
- Telecom
Electronical Specifications:
| Impedance | 50Ω | 75Ω |
| Frequency Range | 0-4 GHz | 0-2 GHz |
| Working Voltage | 500 VRMS max. at sea level | 500 VRMS max. at sea level |
| Dielectric Withstanding Voltage | 1500 VRMS min. at sea level | 1500 VRMS min. at sea level |
| VSWR | Straight: 1.3 max., R/A: 1.5 max. | Straight: 1.3 max., R/A: 1.5 max. |
| Contact Resistance | Center Contact: 3 milliohm Max. | Center Contact: 3 milliohm Max. |
| Outer Contact: 2 milliohm Max. | Outer Contact: 2 milliohm Max. | |
| Insulator Resistance | 5000 megaohms min. | 5000 megaohms min. |
Material Specifications:
| Parts Name | Material | Finish | |
| Center Contact | Male | Brass | 3μ" Gold or Silver per requirement |
| Female | BeCu or P. Bronze | 3μ" Gold or Silver per requirement | |
| Body, Metal Parts | Brass | Nickel | |
| Insulators | PTFE, Delrin, PBT | None | |
| Clamp Gaskets | Silicone rubber | None | |
| Crimp Ferrules | Annealed copper | Nickle or Silver per requirement | |
Note: Other Material/Finish is available on request
