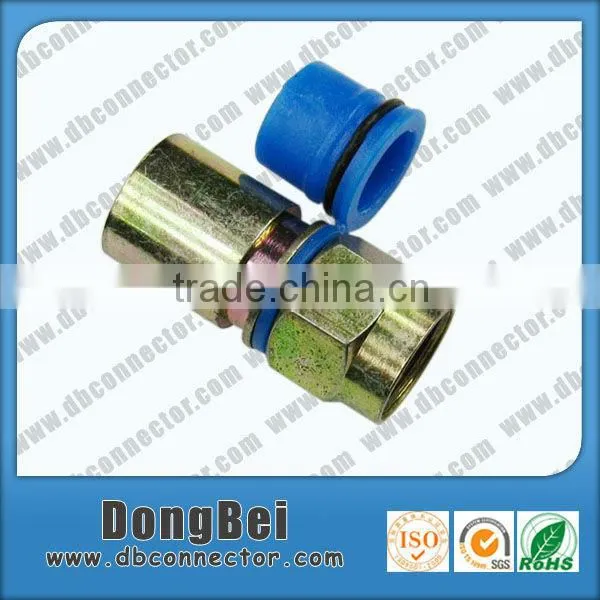

F Male Compression Waterproof Cable Connectors

F Male Compression Waterproof Cable Connectors photo-1
US$ 0.1 - 0.2 MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Dongbei
Model Number:
db-8042
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name Dongbei
Model Number db-8042
Type F
Application RF
Gender Male

Specifications

waterproof cable connectors
1) Insulator PTFE
2) waterproof connector
3) easy for installation

F male compression waterproof cable connectors

F male compression waterproof cable connectors




Connector type    f type waterproof cable connectors       Working Voltage 175V max
Frequency Range DC-1GHz vswr max 1.3
Impedance 75Ω Temp.range -40~+65°C
Conductor resistance   Internal ≤ 1.5mΩ Material Shell:brass, color zinc plated
External ≤ 1mΩ Nut:brass, color zinc  plated
Insulating resistance ≥ 1000 MΩ
Withstanding voltage 500V rms Usability 500 Cycles min



F male compression waterproof cable connectors

 ♥  Telecom                                                  ♥   Radios

  ♥  Broadcast                                               ♥  Antennas

  ♥  Coaxial cable                                             cctv





F male compression waterproof cable connectors



  • Manfactured of high quality brass with nickel plating of superior protection against v-corrosion
  • Easy for installation,save time and money
  • Designed to be watertight for outdoor applications
  • Patented internal compression design offers excellent RFI shielding properties
  • Universal for standard, tri-shield or quad-shield RG6 coaxial cable
F male compression waterproof cable connectors

 F male compression waterproof cable connectors

F male compression waterproof cable connectors



F male compression waterproof cable connectors

F male compression waterproof cable connectors



Dongbei QC Team

Donbei QC team consists of professional people to ensure 100% products high quality.



Contact Us

We highly appreciate your any enquiry by email, fax or instant message.

We will reply your email or fax within 12 hours.

Please fell free to call us at any time if there is any questions.

skype:camille.wu3



Transportation

All available shipping ways could be applied, by courier, air or sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you before the goods arrive
