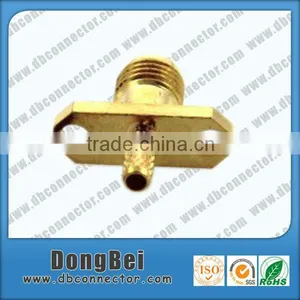

Help Centerrf Screw Switch Connector Sma Testing
Related Products
-
Rca Male Plug Compression Speaker Cable Connectors From Dongbei FactoryUS$ 0.1 - 0.4MOQ: 3000 Pieces -
BNC Male Twist on Connector VGA ConnectorUS$ 0.1 - 0.4MOQ: 1000 Pieces
-
Right Angle Din 7/16 Super Flex Plug in ConnectorUS$ 0.1 - 1.5MOQ: 1000 Pieces
-
Cheapest F Connector Video Compression ToolUS$ 10 - 20MOQ: 100 Pieces
-
Dongbei Dobest Coax f Connector PriceUS$ 0.1 - 0.4MOQ: 5000 Pieces
Specifications
rf switch connector sma testing1) high reliable
2) gold plated
3) semi-rigid flexible RF cables
| Connector type | rf switch connector sma testing | Working Voltage | 335V max |
| Frequency Range |
DC-12.4GHz(with flexible cable) 0-18GHz(With semi-rigid/flexible cable) |
vswr |
≤1.15+0.02F( with flexible cable ) ≤1.05+0.02F (With semi-rigid/flexible cable) |
| Impedance | 50Ω | Temp.range | -65~+165°C |
| Conductor resistance | Internal ≤ 6mΩ | Material | Shell:brass, gold plated |
| External ≤ 2mΩ | Nut:brass, gold plated | ||
| Insulating resistance | ≥ 5000 MΩ | pin:brass,gold plated | |
| Withstanding voltage | 1000V rms | Usability | 500 Cycles min |
♥ Telecom ♥ Instrumentation ♥ Mil/Aero
♥ Components ♥ PC/LAN ♥ Base Stations
♥ Instrumentation ♥ Cable Assemblies
- Manfactured of high quality brass with nickel plating of superior protection against v-corrosion
- Low cost Commercial Grade (Brass SMA) available in nickel or gold plating which provides approximately 30% cost reduction with 250 mating cycles.
- Broadband performance DC to 18 GHz with low reflection stainless steel construction and ¼ - 36 threaded coupling offers high performance in a compact design.
Dongbei QC Team
Donbei QC team consists of professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 12 hours.
Please fell free to call us at any time if there is any questions.
Transportation
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive
