Feature of JG series laser sensor
1.A laser LED,visible light,reflective class 2
2.Push-button adjustment method
3.Can be set to a single point or two-point set
4.Small point ,JG5-150N 100MM spot only 1mm

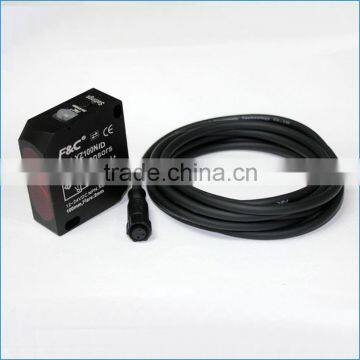

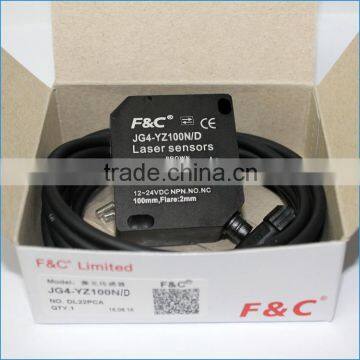

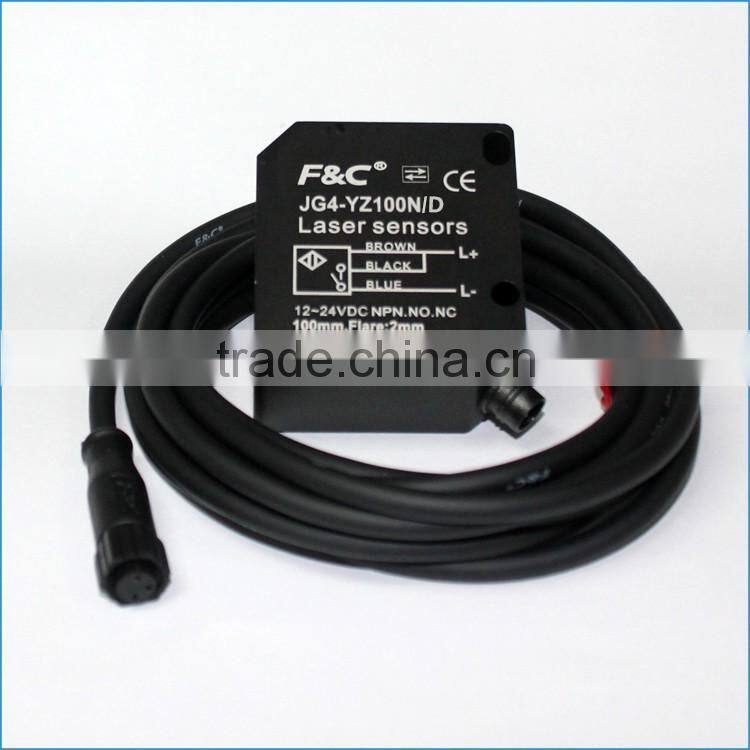

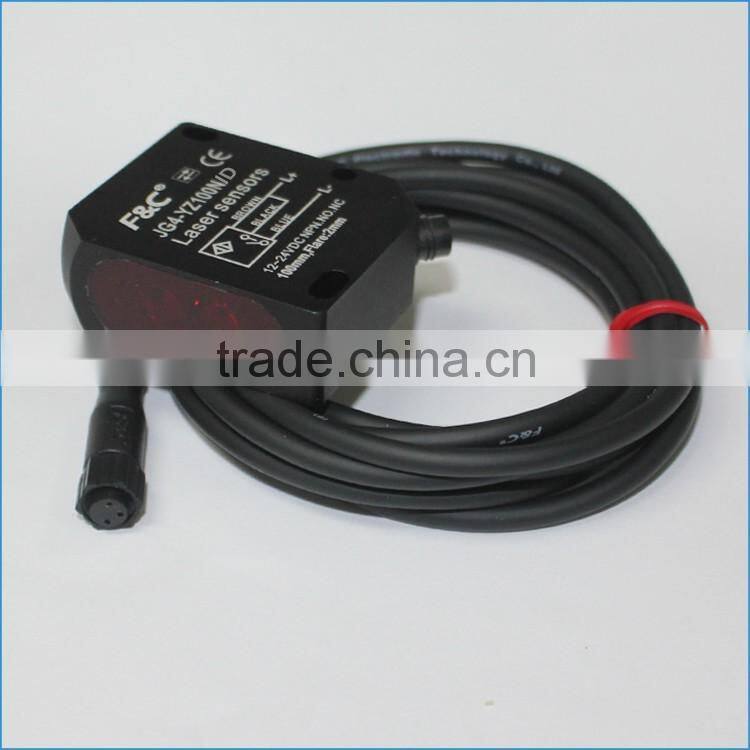

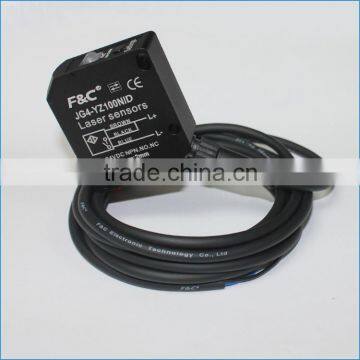

Product display
Specification
| Model | JG3-YZ100N/D | JG3-YZ300N/D | |
| Detection distance | 100mm | 300mm | |
| Spot size | 1*10mm | 1.5*40mm | |
| Mini detection object | 0.06mm | ||
| Light source | laser light source | ||
| Operation voltage | DC 12~24V include 10%(P-P) | ||
| Current consumption | 100mA max | ||
JEC/JIStype/JEC/JIS | Class 2 | ||
| Response time | 0.5ms | ||
| Differential | (two points of setting) within 20% auto-setting | ||
| Detection&blind area | >=35mm | ||
| Mechanical reliability | vibration:XYZ,5—50Hz 1hour free-faller:2m high,10 times | ||
| Electrical reliability | Wiring protection/protection/short-circuit protection | ||
| Mode of operation | Light-on/Dark-on, hold on button for above 10 Sec for switching. Default:Dark-on | ||
| indicator: Red/output, Green/stable, Default:dark-on | |||
| Operating temperature | -20~+70°C(no freezing-in) | ||
| Operating humidity | 35~85°C RH | ||
| Sensitivity adjustment | adjusted by button | ||
| Output control | NPN 100mA max DC 24V | ||
| Ambient light | 5000 lux (filament lamp) ; 20000lux (sunshine) | ||
| Crust material | Plastics case | ||
| Wiring method | M8 connetor | ||
| Weight | approx. 100g | ||
laser photoelectric switch, laser optic sensor,reflection class 2

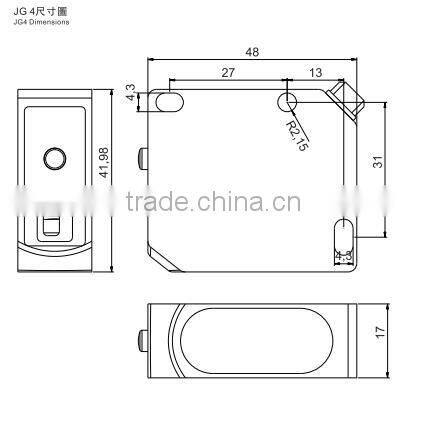

Dimension Drawing
Certifications
More product
Our services
1.Prompt reply to our customer, we have to reply all the email within 24hrs.
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Enterprise profile
F&C main product include fiber optic amplifier , fiber optic sensor, fiber optic lens, proximity sensor, photoelectric sensor, label sensor, light curtain, laser alignment, pressure sensor,magnetic sensor, M8 M12 female connector, laser sensor, color sensor,rail power supply,solid state relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”.
Packaging&Shipping
1.We will ship our product aboard with standard export package.
2.For small Qty, We will Ship our product to you by express.
3.For mass production , We will ship our product to you by Air or sea.
